Mounting Information Buzz In-Wall

4.6 Mounting Information Buzz In-Wall
General Information
The Buzz In-Wall - Display metal frame is provided prior to the main shipment.
To achieve the recommended mounting height, center cutout at 150 cm (59") above finished floor.
If a different mounting height is desired, adjust accordingly.
The cutout for the frame must be 1140-1144 mm x 619-625 mm to enable the installation of the
frame.
The minimum depth of the opening is 98 mm (5.5").
Sufficient ventilation must be ensured. Do not obstruct the vents on top and bottom of the frame.
Refer to for details.
The In-Wall mounting plate kit consists of the Display metal frame.
NOTE: If more Buzz 2.0 In-Wall touch displays are mounted adjacent to each other, plan a 6-10
cm (2-4") gap between the In-Wall frames to avoid interference of the protruding front bezels.
How to Install Buzz In-Wall Pre-installation Kit
Step
1.
2.
3.
4.
46
Slide the Buzz 2.0 Display In-Wall Housing into the wall cut out.
Level and fasten the Buzz 2.0 Display In-Wall Housing using the 16 long slots at the sides
of the Buzz 2.0 Display In-Wall Housing.
Create a silicone joint between the yellow design frame and wall surface to reach an in-
gress protection of IP44.
Otherwise, only IP20 can be achieved.
Clip the foam cover from the packaging into the Buzz 2.0 Display In-Wall Housing as a
protection against scratches. See detailed description in the attached packaging leaflet.

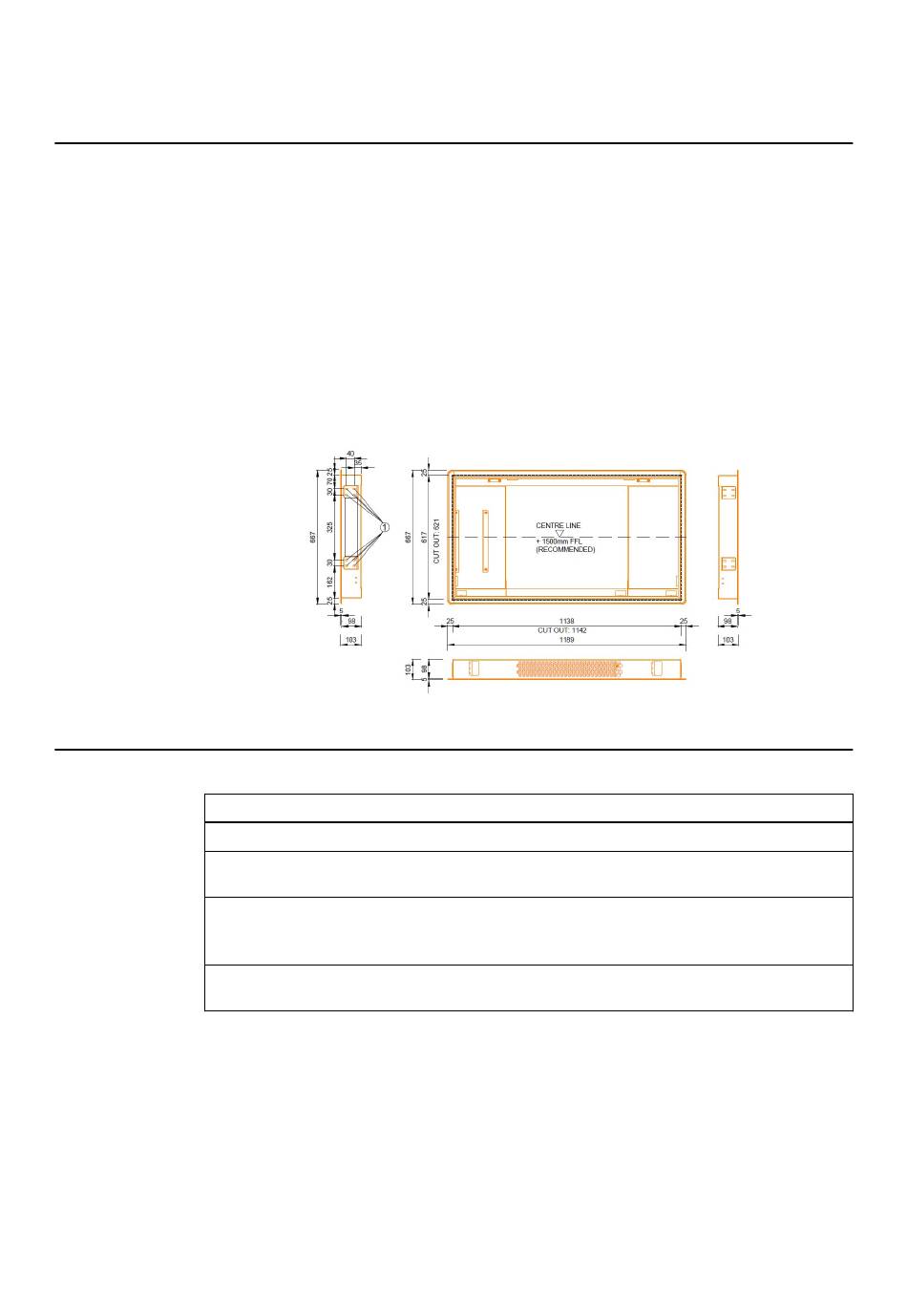

Figure 22
