SYSTEM SPECIFICATIONS
• Be recognizable that the indicator belongs to the Buzz component(s) in normal operator
position (IEC 60601-1:2012 Clause 15.4.4)
NOTE: Be aware of national deviations which must be fulfilled.
Grounding (Protective Earth) / Equipotentiality Post (Buzz Computer Only)
• It is the customer's responsibility to provide a means for connecting the Brainlab-provided
Protective Earth cables of the monitor(s) close to the installation location prior to system
installation. The customer must choose a terminal connection cross-section that meets the
national and local standards for protection.
• The equipotentiality post, located on the back of the computer may be used to connect other
equipment, ensuring that all devices are at equal potential. (Note: The potential equalization
post is not available if the Buzz computer is wall mounted.)
• The use of the potential equalization connection is not mandatory.
No.
①
Conduits/Duct Work
On-site preparation, size and routing of conduits for SELV power and fiber optic transfer lines
according to the Brainlab drawings. Conduit layouts must be adjusted to meet site-specific
requirements.
Networking
Network access points (LAN drops) as nominated on Brainlab drawings.
Related Links
4.2 Standard Layouts and Wiring Concepts on page 33
3.1.2 Technical Specifications on page 21
6.1 Digital OR Computer For Barco Integration Specifications on page 59
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0

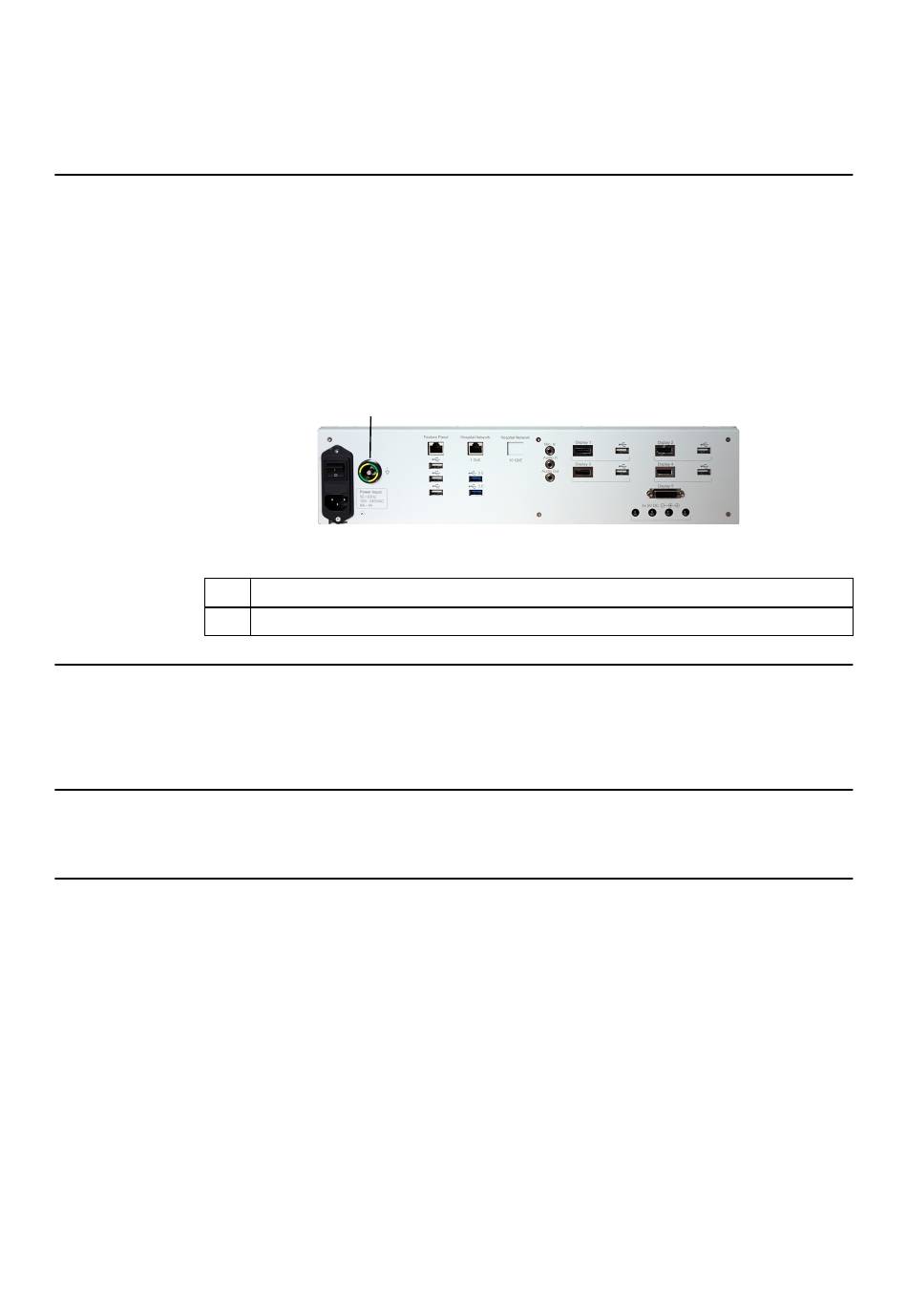

①
Component
Potential equalization connection: Buzz computer
Figure 8
