PLANNING AND SITE PREPARATION
Installing the Buzz 2.0 In-Wall Touch Display in the Buzz 1.0 Hole Pattern
The Buzz 2.0 In-Wall Touch Display can be installed using the Buzz 1.0 wall cut out during an
upgrade. To do this, the customer must checked and fulfill these specifications:
• The total weight of the Buzz In-Wall 2.0 (touch display assembly including mounting frame) is:
38 kg (83.8 lbs) *
• Depth of Buzz In-Wall 2.0 Touch Display protruding from wall: 5 mm (0.2") *
• The Buzz In-Wall 2.0 Touch Display installation requires a clearance of 50 mm (2.0") around
the Buzz 1.0.
* Accuracy: +/- 10%
NOTE: Only Buzz 2.0 In-Wall Touch Display version can be mounted using the Buzz 1.0 hole
pattern and wall cut out.
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0

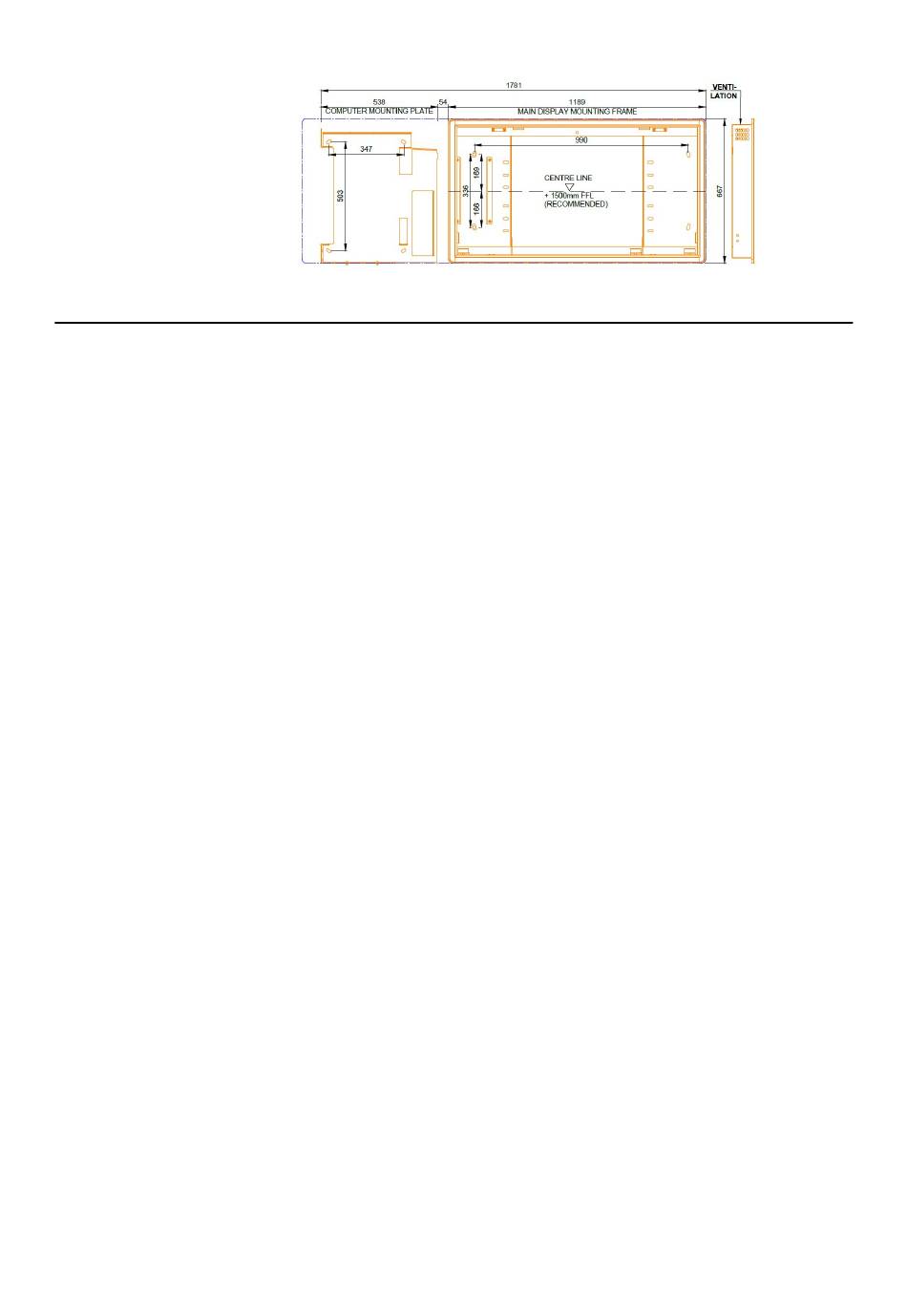

Figure 25
