PLANNING AND SITE PREPARATION
4.5

Mounting Information Buzz On-Wall

General Information
The Buzz On-Wall Main Display metal frame is provided prior to the main shipment. Prepare and
set up mounting plates according to Brainlab drawings.
The On-Wall mounting plate kit consists of two components:
• (A) Computer mounting plate
• (B) Display metal frame
NOTE: As well as these dimensions, you must include 10 cm clearance around the display and
30 cm on the computer connector side (left side of picture).
How to Install Buzz On-Wall
Step
1.
2.
3.
4.
5.
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0
Mount the display metal frame (B) to the wall using the center screw hole ①. This screw
is only used for an easy leveling of the frame and will be removed later on. The suggested
mounting height is 177 cm (69.7") from finished floor to the hole ①.
Level and fasten the display metal frame (B) using the four long slots ②.
Remove screw ① from the center hole.
Create a silicone joint on the top side between the wall and the Buzz 2.0 Display On-Wall
Housing to reach an ingress protection of class IP21. Otherwise, only IP20 can be ach-
ieved.
Buzz On-Wall (side by side): Adjust the computer mounting plate (A) with the fixation
point into the display metal frame (B). Mount the computer mounting plate (A) adjacent to
the display metal frame (B) using the four long slots ③.

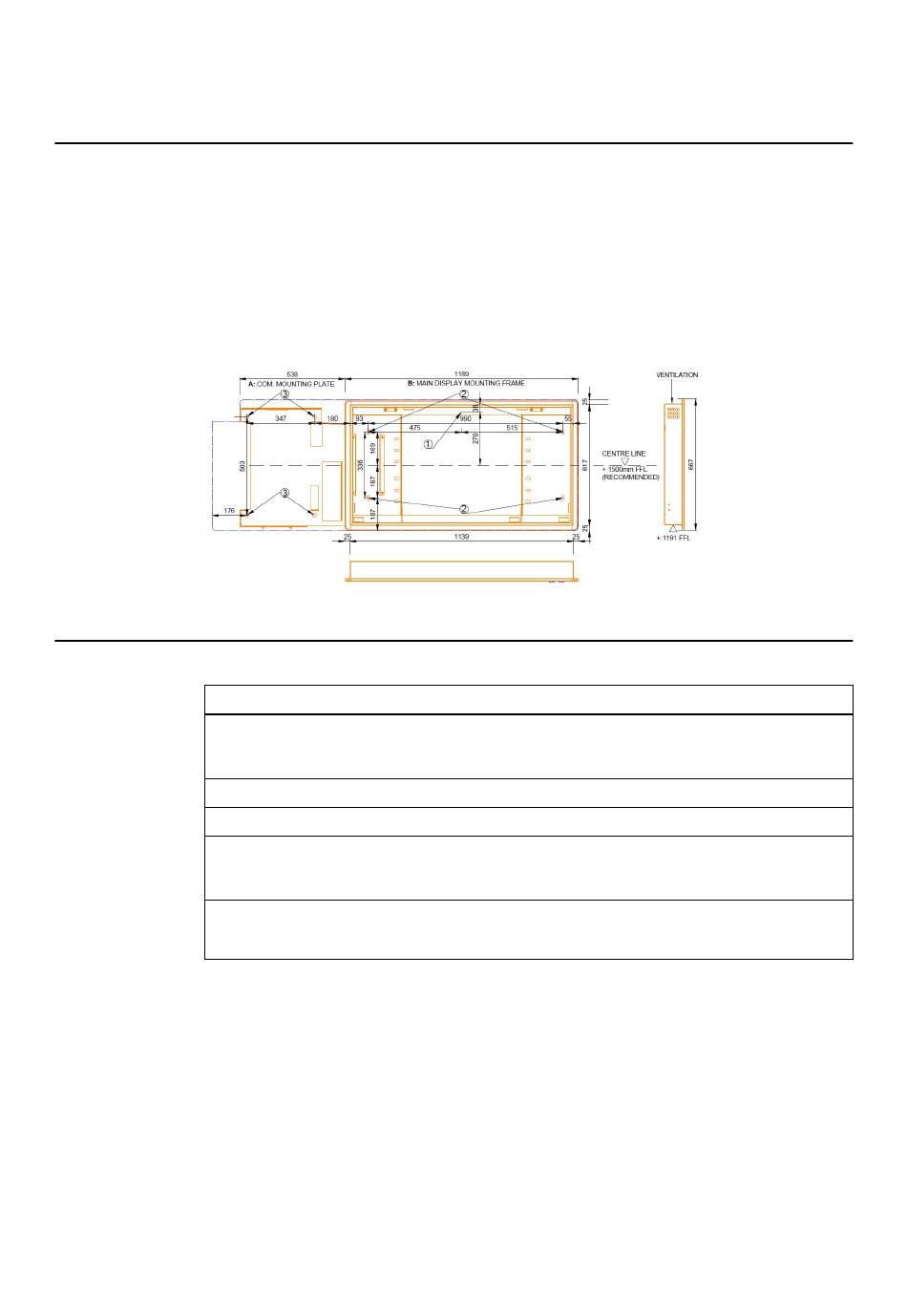

Figure 20
43
