Connection Panel - Buzz Computer

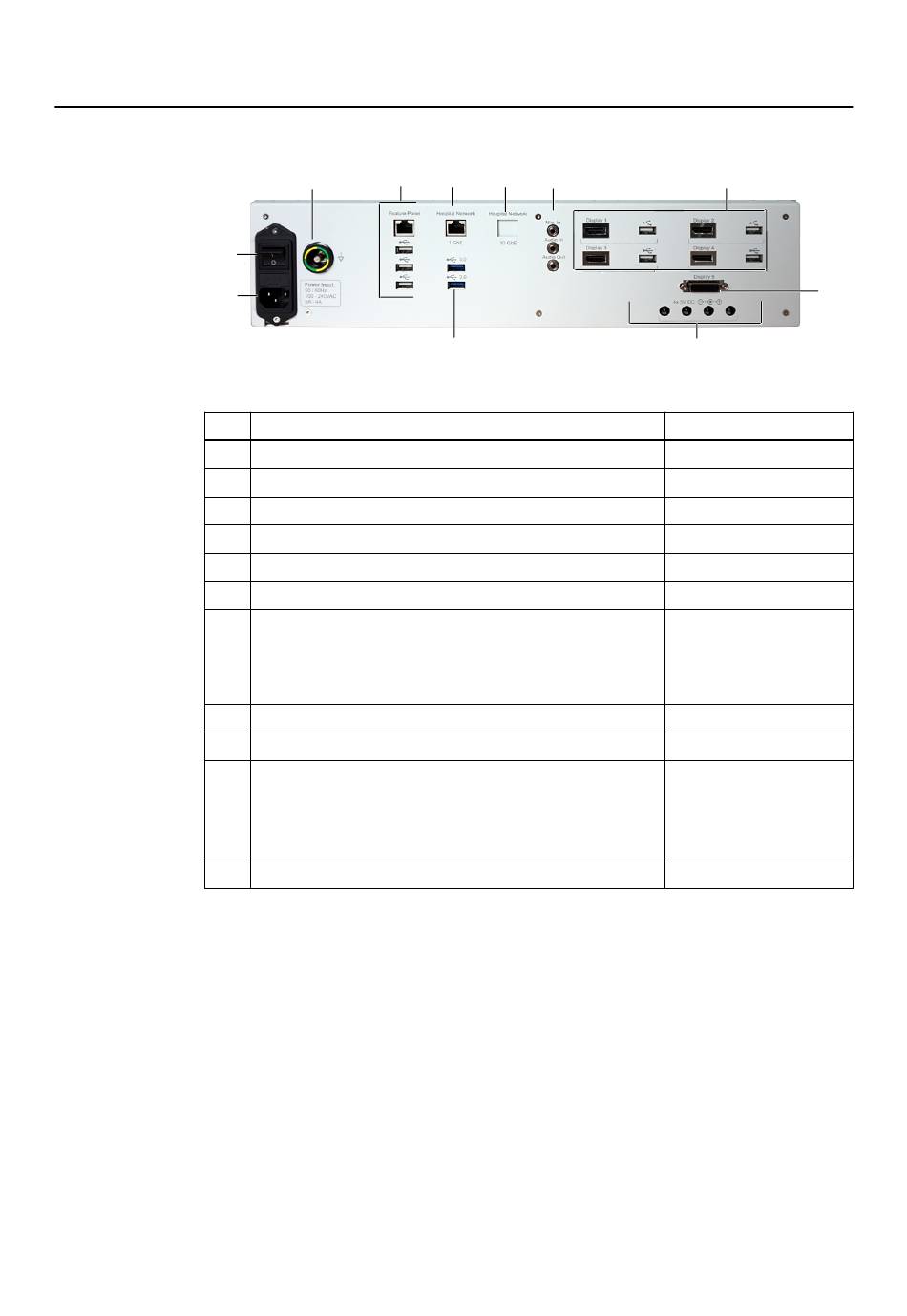

Back Connection Panel
②
①
No.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
NOTE: The Mains Switch, Mains Power Inlet and Potential Equalization Pin are not accessible if
the Computer is wall-mounted. Connections 4-11 in the connection panel are only for use by
Brainlab support. Do not change or add any connections to this panel as they are used for internal
system communication.
28
③ ④
Component
Mains Switch
Mains Power Inlet
Potential equalization
Network/USB 2.0 to Feature Panel
Hospital Network (1 GbE)
Hospital Network (10 GbE) - Not in use
Audio In / Out
• Microphone In
• Audio In
• Audio Out
Video Output and USB 2.0 for Display 1 - 4
Video Output for Display 5
Power connections for transfer line components
4 x 5 V DC / 0.5 A each
NOTE: Only connect equipment specified by Brainlab to the
DC output.
2 x USB 3.0
⑤ ⑥
⑦
⑪
Figure 10
Site Planning Manual Rev. 1.1 Buzz Ver. 2.0
⑧
⑨
⑩
User Group
Trained user
Trained user
Trained user
Brainlab support
Brainlab support
Brainlab support
Brainlab support
Brainlab support
Brainlab support
Brainlab support
Brainlab support
