Open-Q™ 845 µSOM Development Kit User Guide

3.7.12 Display Connector J1400 (38)

The 100-pin display connector, J1400, allows for an optional display adapter to be connected to the
development kit. Intrinsyc offers a compatible LCD panel accessory for the Open-Q 845 µSOM
Development Kit. It can be purchased here: https://shop.intrinsyc.com/products/open-q-810-820-lcd.
Exposed on the display connector are the following interfaces:
• Two 4-lane MIPI DSI high speed display interfaces
• LCD backlight control signals
• I2C bus for touch panel support
• Additional GPIOs for general purposes available
• Various power rails for powering the display adapter
For details on the signal list provided on the display connector, see the development kit schematic
(R-3) and the display adapter design guide technical note document (R-4).
© Copyright Intrinsyc Technologies Corporation

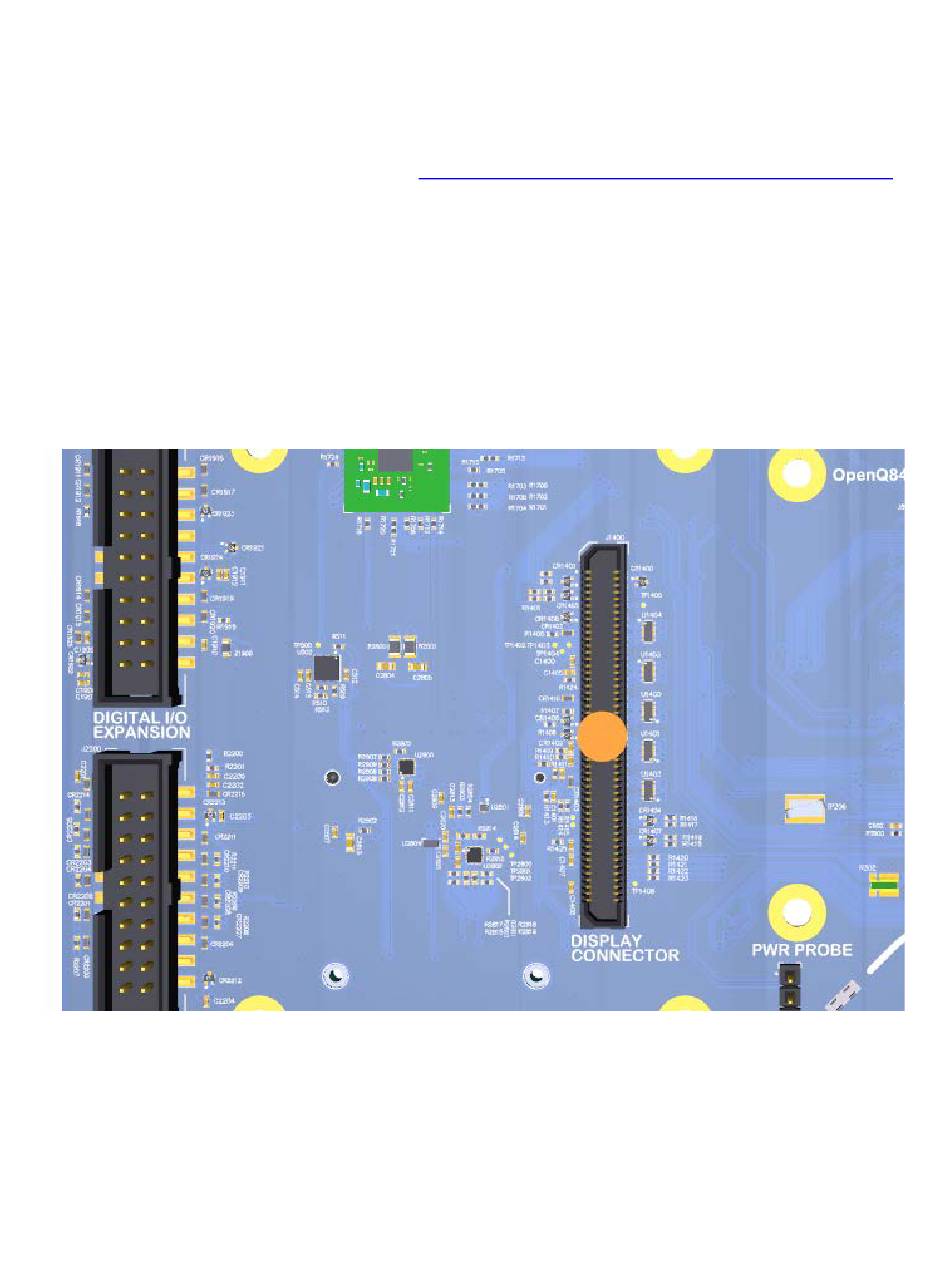

Figure 8. Display Connector J1400
