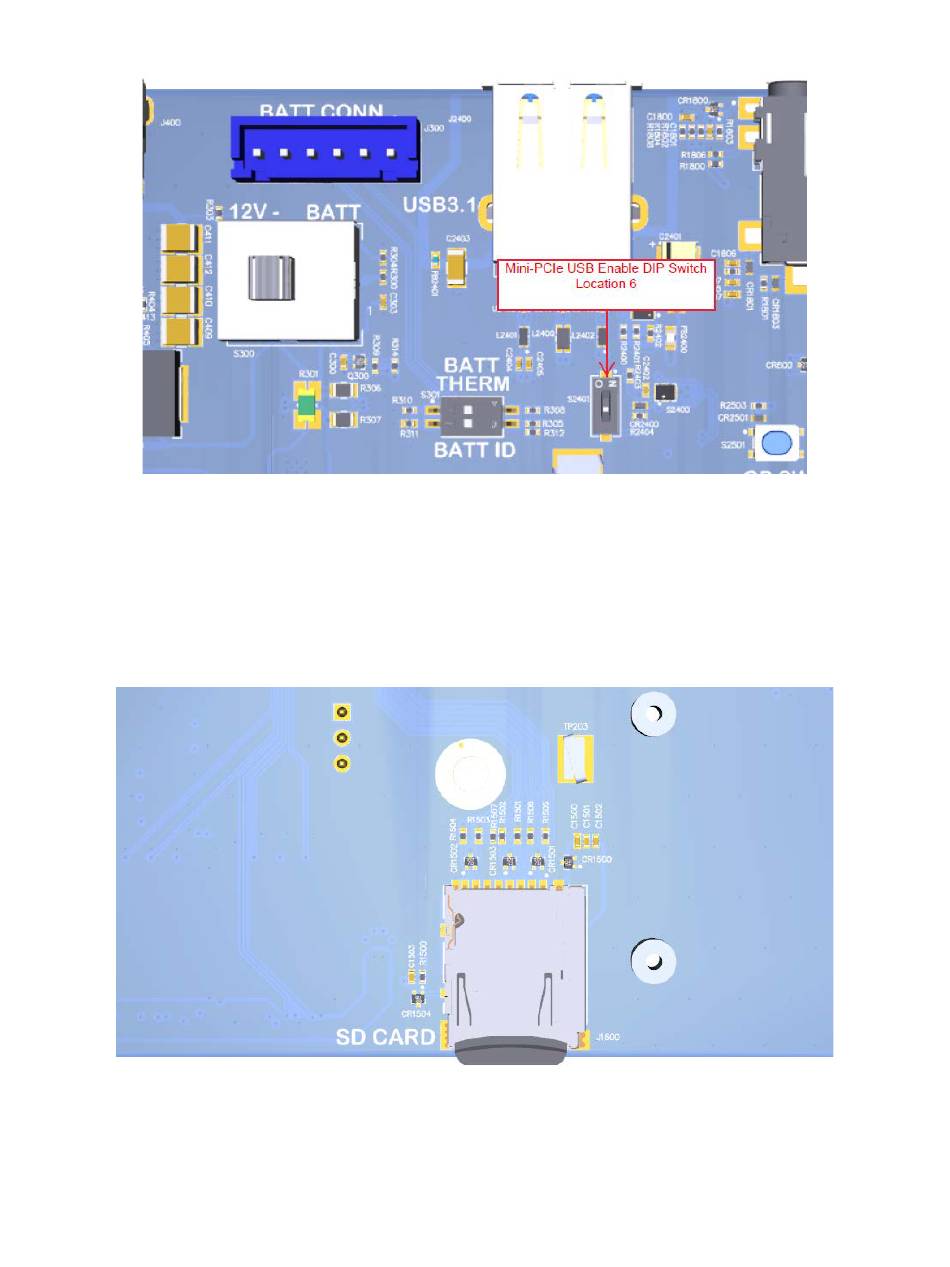

Figure 6. Mini-PCIe USB Enable DIP Switch (6)
3.7.11 Micro SD Card Socket J1500 (22)
J1500 (Micro-SD card connector) provides 4-bit secure digital (SD) interface for external storage. It
is located on the bottom side of the carrier board right under the Display Module (see figure below).
The SD interface supports High Speed mode.
Figure 7. Micro SD Card Socket J1500
© Copyright Intrinsyc Technologies Corporation
22 of 30
