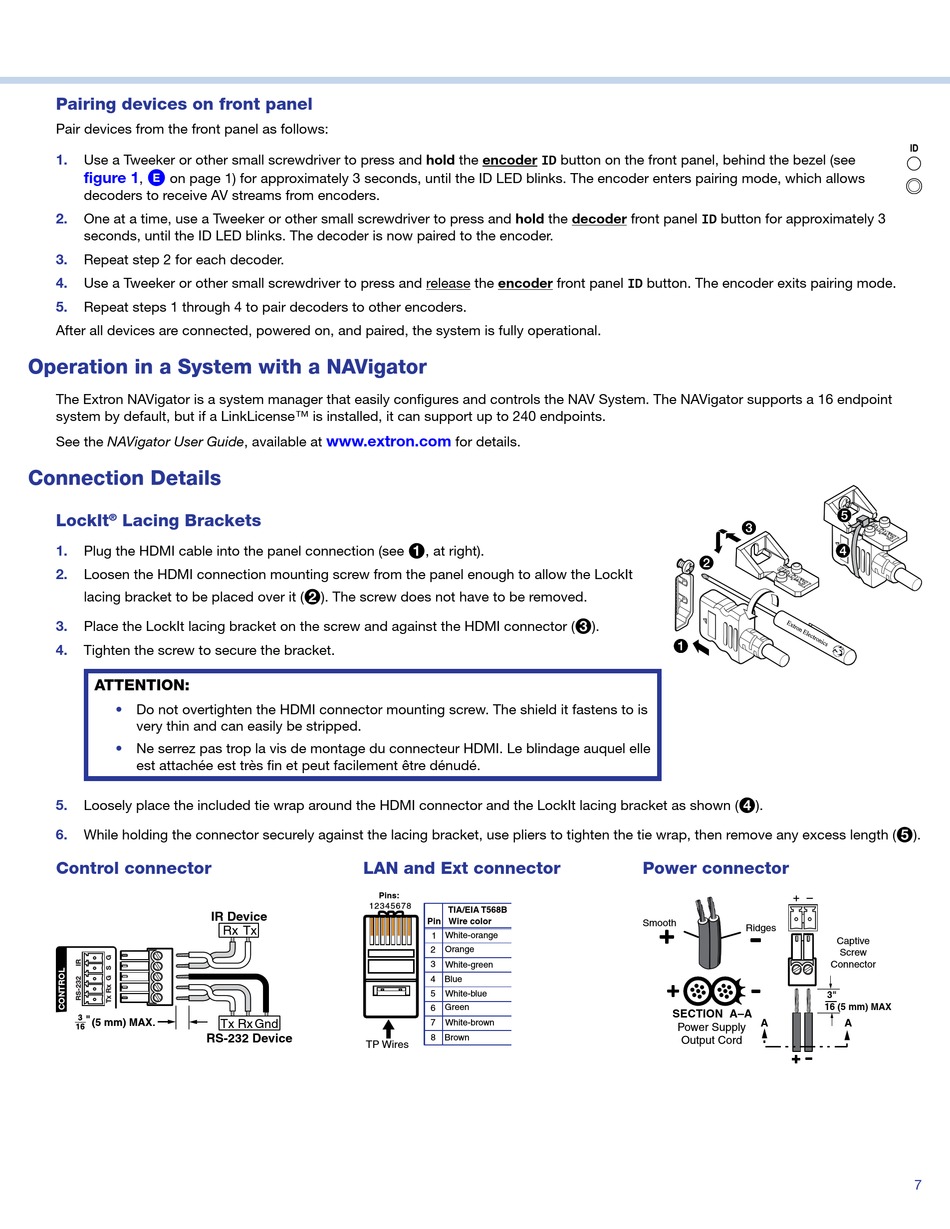

Pairing devices on front panel
Pair devices from the front panel as follows:
1. Use a Tweeker or other small screwdriver to press and hold the encoder ID button on the front panel, behind the bezel (see
figure 1
E
, on page 1) for approximately 3 seconds, until the ID LED blinks. The encoder enters pairing mode, which allows
decoders to receive AV streams from encoders.
2. One at a time, use a Tweeker or other small screwdriver to press and hold the decoder front panel ID button for approximately 3
seconds, until the ID LED blinks. The decoder is now paired to the encoder.
3.
Repeat step 2 for each decoder.
4. Use a Tweeker or other small screwdriver to press and release the encoder front panel ID button. The encoder exits pairing mode.
5. Repeat steps 1 through 4 to pair decoders to other encoders.
After all devices are connected, powered on, and paired, the system is fully operational.
Operation in a System with a NAVigator
The Extron NAVigator is a system manager that easily configures and controls the NAV System. The NAVigator supports a 16 endpoint
system by default, but if a LinkLicense™ is installed, it can support up to 240 endpoints.
See the NAVigator User Guide, available at

Connection Details

LockIt Lacing Brackets
®
1. Plug the HDMI cable into the panel connection (see
2. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt
lacing bracket to be placed over it (
3.
Place the LockIt lacing bracket on the screw and against the HDMI connector (
4. Tighten the screw to secure the bracket.
ATTENTION:
• Do not overtighten the HDMI connector mounting screw. The shield it fastens to is
very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle
est attachée est très fin et peut facilement être dénudé.
5.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown (
6. While holding the connector securely against the lacing bracket, use pliers to tighten the tie wrap, then remove any excess length (
Control connector
RS-232 Device
www.extron.com
). The screw does not have to be removed.
2
LAN and Ext connector
Pins:
12345678
IR Device
Rx Tx
Tx Rx Gnd
TP Wires
for details.
, at right).
1
3
TIA/EIA T568B
Pin Wire color
1 White-orange
Orange
2
3 White-green
4 Blue
5 White-blue
Green
6
7 White-brown
8 Brown
3 3 3
2 2 2
).
1 1 1
).
4
Power connector
Smooth
Ridges
SECTION A–A
A
Power Supply
Output Cord
ID
5 5 5
4 4 4
).
5
Captive
Screw
Connector
3"
16 (5 mm) MAX
A
