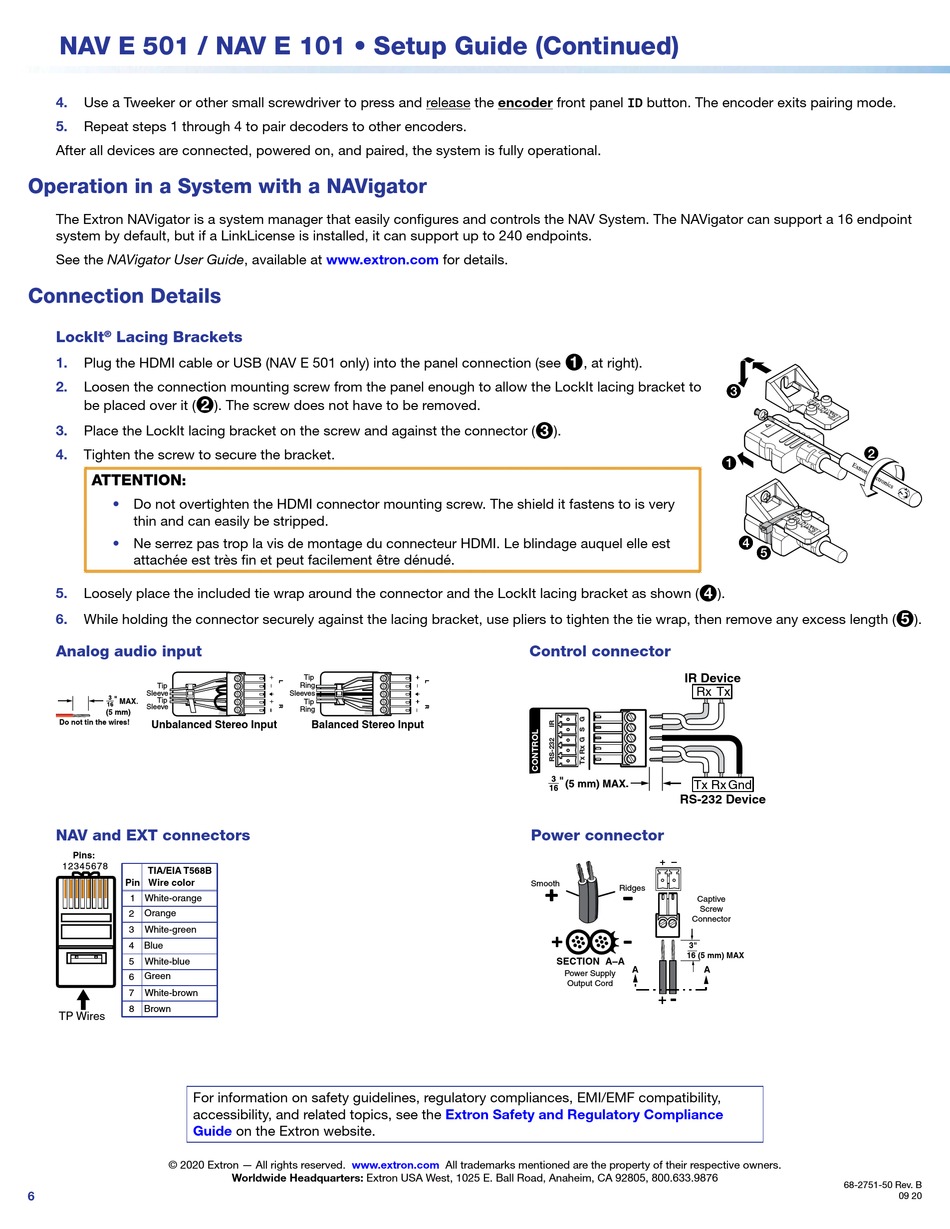

NAV E 501 / NAV E 101 • Setup Guide (Continued)
4. Use a Tweeker or other small screwdriver to press and release the encoder front panel ID button. The encoder exits pairing mode.
5.
Repeat steps 1 through 4 to pair decoders to other encoders.
After all devices are connected, powered on, and paired, the system is fully operational.
Operation in a System with a NAVigator
The Extron NAVigator is a system manager that easily configures and controls the NAV System. The NAVigator can support a 16 endpoint
system by default, but if a LinkLicense is installed, it can support up to 240 endpoints.
See the NAVigator User Guide, available at

Connection Details

LockIt Lacing Brackets
®
1. Plug the HDMI cable or USB (NAV E 501 only) into the panel connection (see
2. Loosen the connection mounting screw from the panel enough to allow the LockIt lacing bracket to
2
be placed over it (
3. Place the LockIt lacing bracket on the screw and against the connector (
4. Tighten the screw to secure the bracket.
ATTENTION
:
• Do not overtighten the HDMI connector mounting screw. The shield it fastens to is very
thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est
attachée est très fin et peut facilement être dénudé.
5. Loosely place the included tie wrap around the connector and the LockIt lacing bracket as shown (
6. While holding the connector securely against the lacing bracket, use pliers to tighten the tie wrap, then remove any excess length (
