Repeat step 2 for each decoder.
3.
Use a Tweeker or other small screwdriver to press and release the encoder front panel ID button. The encoder exits pairing mode.
4.
Repeat steps 1 through 4 to pair decoders to other encoders.
5.
After all devices are connected, powered on, and paired, the system is fully operational.
Operation in a System with a NAVigator
The Extron NAVigator is a system manager that easily configures and controls the NAV System. The NAVigator supports 16 endpoints by
default, but a LinkLicense can upgrade its capabilities to support up to 240 endpoints.
See the NAVigator User Guide, available at

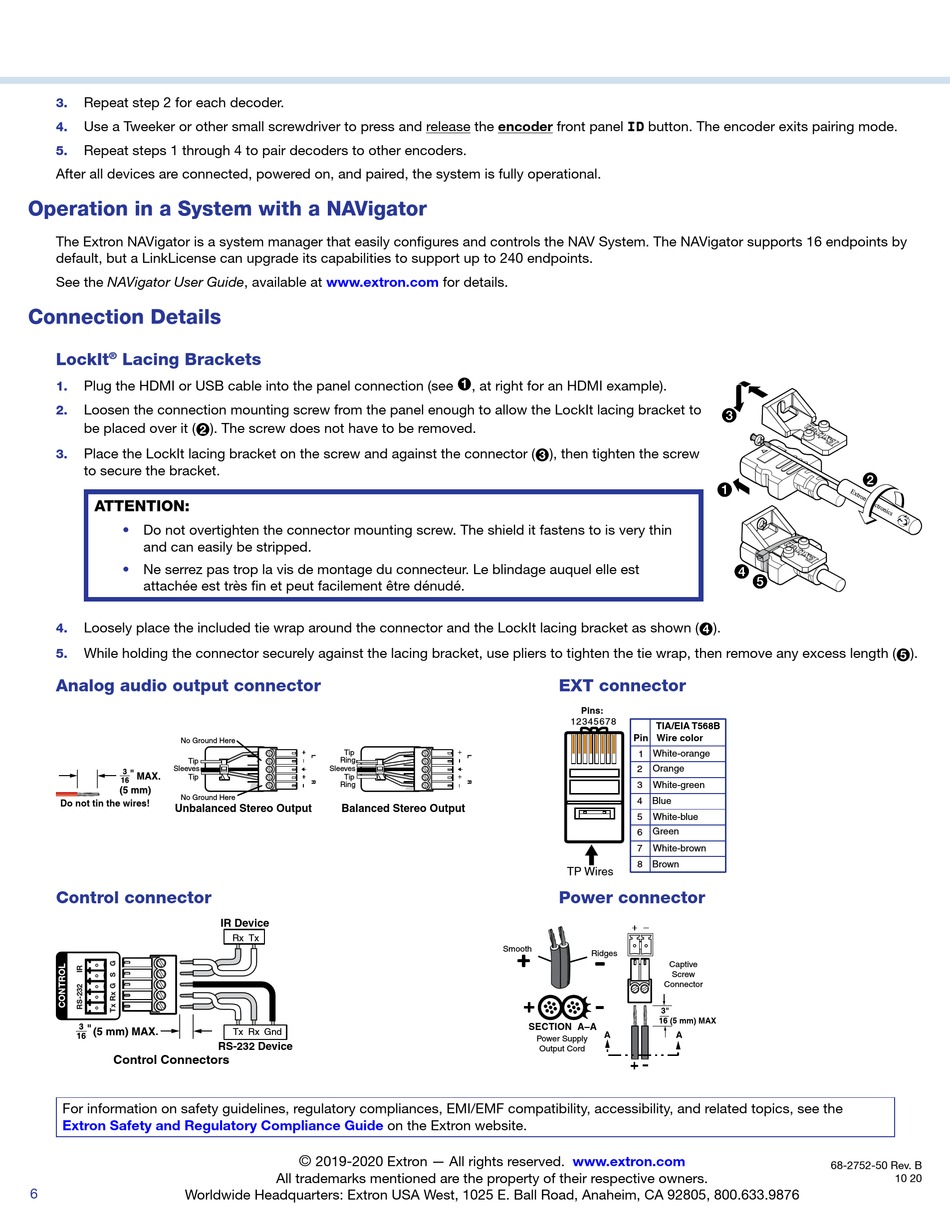

Connection Details

LockIt Lacing Brackets
®
Plug the HDMI or USB cable into the panel connection (see
1.
Loosen the connection mounting screw from the panel enough to allow the LockIt lacing bracket to
2.
be placed over it (
2
Place the LockIt lacing bracket on the screw and against the connector (
3.
to secure the bracket.
ATTENTION:
• Do not overtighten the connector mounting screw. The shield it fastens to is very thin
and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur. Le blindage auquel elle est
attachée est très fin et peut facilement être dénudé.
Loosely place the included tie wrap around the connector and the LockIt lacing bracket as shown (
4.
While holding the connector securely against the lacing bracket, use pliers to tighten the tie wrap, then remove any excess length (
5.
Analog audio output connector
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Do not tin the wires!
Unbalanced Stereo Output
Control connector
Control Connectors
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
6
