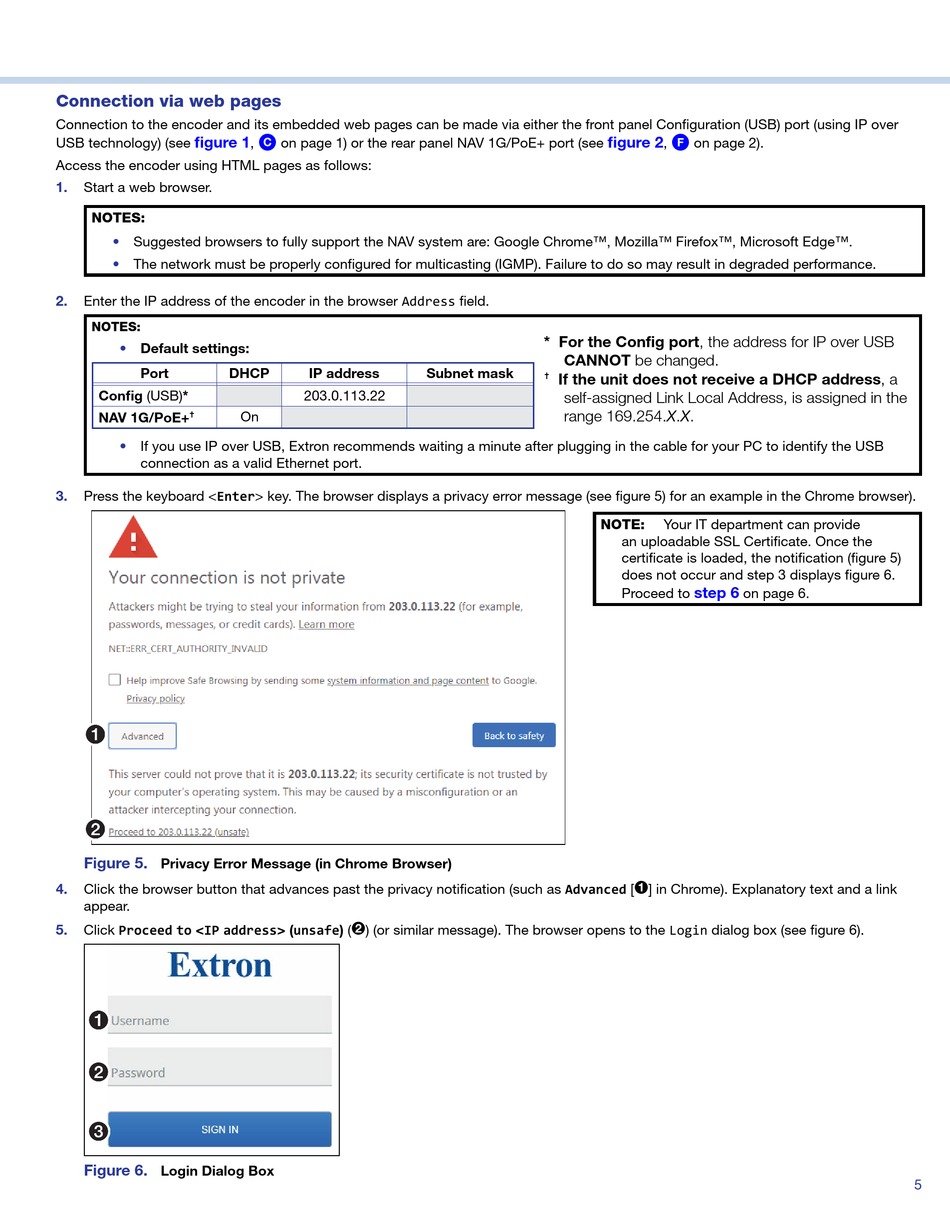

Connection via web pages
Connection to the encoder and its embedded web pages can be made via either the front panel Configuration (USB) port (using IP over
figure 1
USB technology) (see
Access the encoder using HTML pages as follows:
1.
Start a web browser.
NOTES:
• Suggested browsers to fully support the NAV system are: Google Chrome™, Mozilla™ Firefox™, Microsoft Edge™.
• The network must be properly configured for multicasting (IGMP). Failure to do so may result in degraded performance.
Enter the IP address of the encoder in the browser Address field.
2.
NOTES:
• Default settings:
Port DHCP
Config (USB)*
NAV 1G/PoE+

• If you use IP over USB, Extron recommends waiting a minute after plugging in the cable for your PC to identify the USB
connection as a valid Ethernet port.
3. Press the keyboard <Enter> key. The browser displays a privacy error message (see figure 5) for an example in the Chrome browser).
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 5.
Privacy Error Message (in Chrome Browser)
4. Click the browser button that advances past the privacy notification (such as Advanced [
appear.
5. Click Proceed to <IP address> (unsafe) (
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Figure 6.
Login Dialog Box
, C on page 1) or the rear panel NAV 1G/PoE+ port (see
IP address
203.0.113.22
On
) (or similar message). The browser opens to the Login dialog box (see figure 6).
2
* For the Config port, the address for IP over USB
CANNOT be changed.
Subnet mask
If the unit does not receive a DHCP address, a

self-assigned Link Local Address, is assigned in the
range 169.254.X.X.
NOTE:
figure 2
, F on page 2).
Your IT department can provide
an uploadable SSL Certificate. Once the
certificate is loaded, the notification (figure 5)
does not occur and step 3 displays figure 6.
step 6
Proceed to on page 6.
1 ] in Chrome). Explanatory text and a link
5
