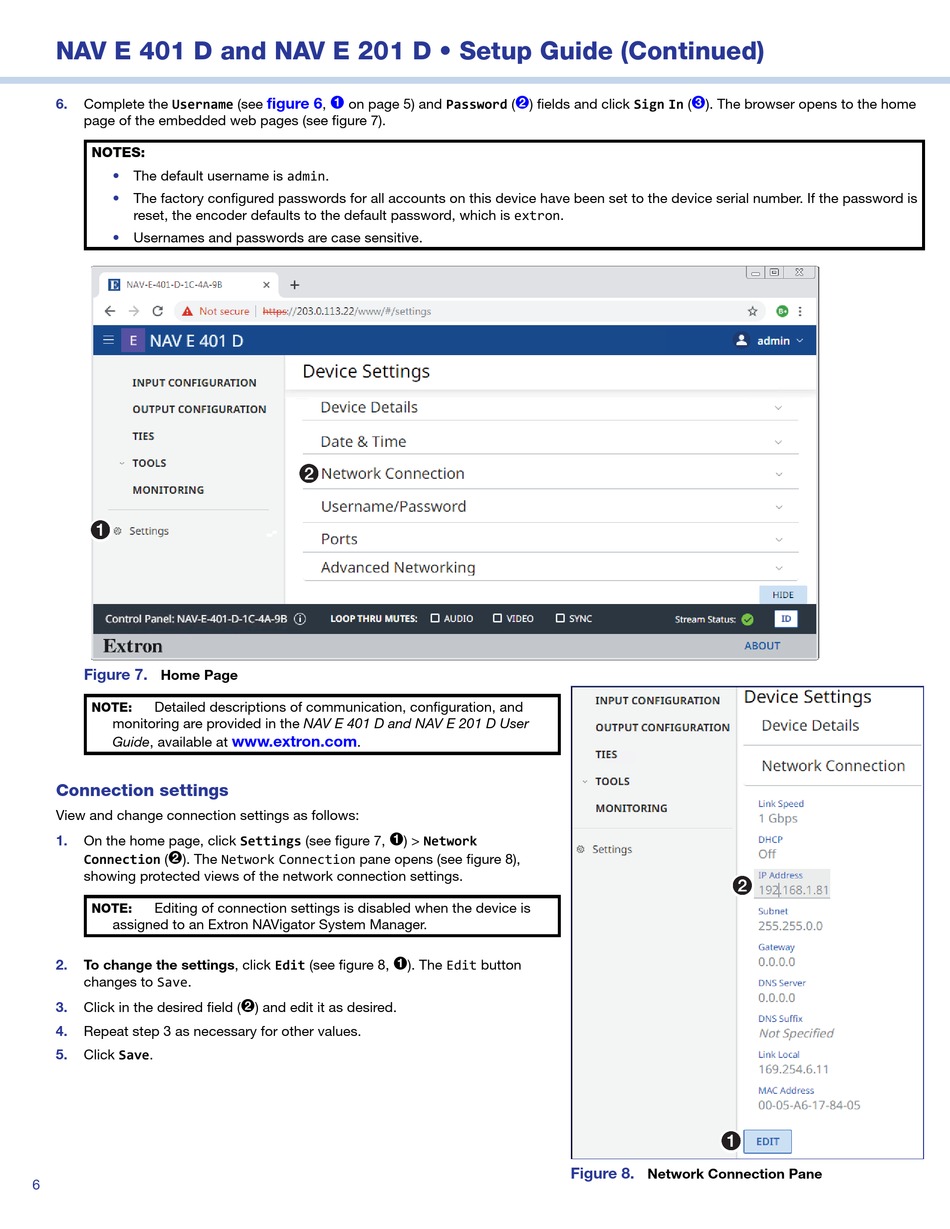

NAV E 401 D and NAV E 201 D • Setup Guide (Continued)
6. Complete the Username (see
page of the embedded web pages (see figure 7).
NOTES:
The default username is admin.
•
• The factory configured passwords for all accounts on this device have been set to the device serial number. If the password is
reset, the encoder defaults to the default password, which is extron.
• Usernames and passwords are case sensitive.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Figure 7.
Home Page
Detailed descriptions of communication, configuration, and
NOTE:
monitoring are provided in the NAV E 401 D and NAV E 201 D User
Guide, available at

Connection settings

View and change connection settings as follows:
1. On the home page, click Settings (see figure 7,
). The Network Connection pane opens (see figure 8),
Connection ( 2
showing protected views of the network connection settings.
Editing of connection settings is disabled when the device is
NOTE:
assigned to an Extron NAVigator System Manager.
2. To change the settings, click Edit (see figure 8,
changes to Save.
3.
Click in the desired field (
4.
Repeat step 3 as necessary for other values.
5. Click Save.
6
figure 6
, 1 on page 5) and Password (
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
www.extron.com
.
1 ) > Network
). The Edit button
1
2 ) and edit it as desired.
2 ) fields and click Sign In ( 3
Figure 8.
Network Connection Pane
). The browser opens to the home
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
