Outdoor Fixture High/Low Mount Sensor Reference Sheet

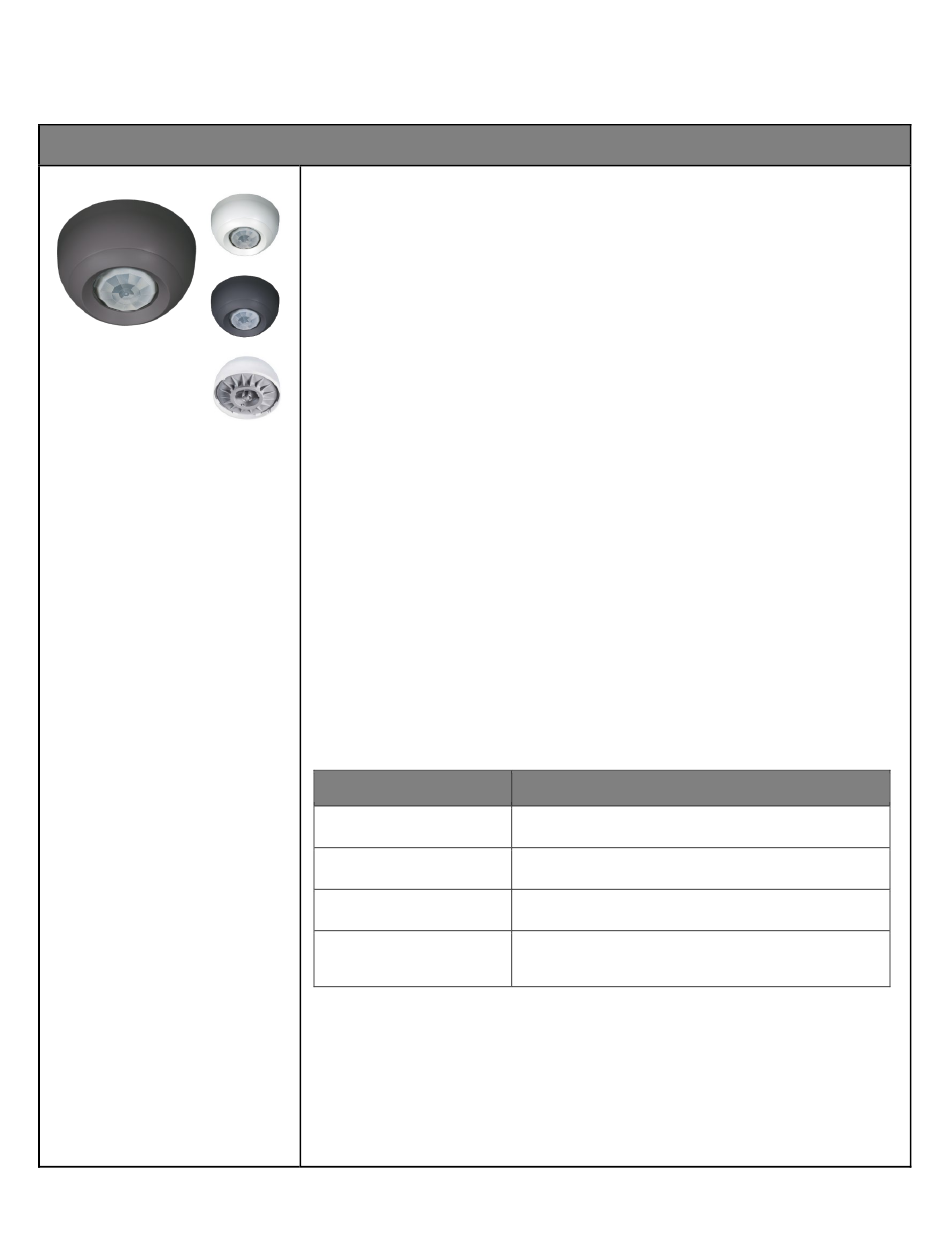

Outdoor Fixture High/Low Mount Sensor
Features
• Integrated photocell for closed
loop daylighting
Integrated Passive Infrared (PIR)
•
motion sensor
Bluetooth 4.2 Low Energy
•
transmitter
Typical Applications
Parking garage, deck, and associated
pathways
Models:
WOB: Low mount: 7-15ft (2.1-4.5m)
WOF: High mount: 15-40ft (4.5-12.2m)
Available option on many Cooper
Lighting luminaires.
Device Type in Mobile App:
Highbay Sensor
The WaveLinx Lite Outdoor Fixture High/Low Mount Sensor uses a simple tool-less twist lock
method to connect to a Cooper Lighting fixture with WaveLinx compatible 4-pin Zhaga Book 18
socket. The sensor has an IP66 rating for outdoor site and indoor environments.
Out-of-the-Box Operation
Once power is applied, the attached fixture operates via the daylight and motion sensors.
•
ON at dusk / OFF at dawn via daylight sensor.
•
• If fixture is ON at dusk, the occupancy sensor determines the light level.
The occupancy is set for High sensitivity.
•
If occupied, the fixture will go to 100%.
•
The fixture will dim to 50% within 7.5 minutes when the space is unoccupied.
•
• LED flashes green (in sensor window) for 100ms once every 3 seconds when motion is
detected.
Provisioned Device Default Behavior
Once provisioned in the WaveLinx Lite Mobile App, the device operates via the daylight and
motion sensors.
ON at dusk / OFF at dawn via daylight sensor.
•
• If the fixture is ON at dusk, the area's occupancy sensor set
Each occupancy sensor in the set is set for High sensitivity.
•
If occupied, the fixtures of the occupancy set will go to 100%.
•
The occupancy set default hold time is 20 minutes. The fixture will dim to 50% after 10
•
minutes when the space is unoccupied and will dim to 0% after an additional 10
minutes if the space remains unoccupied.
• LED flashes white (in sensor window) for 100ms once every 3 seconds when motion is
detected.
Note: This assumes that the device's assigned zone is assigned to an occupancy set and the occupancy
1
set is still at default settings.
LED Behavior
The LED is located beneath the sensor lens.
LED conditions
Flashes green for 100ms, once
every 3 seconds
Flashes white for 100ms, once
every 3 seconds
Flashes white for 10ms every
250ms (fast blink)
LED is OFF
Note: the LED will stop flashing if the light level drops but stays between 50% and 100% of the calibrated
2
light level for 10 minutes OR if the light level falls below 50% of the calibrated light level for 30 seconds.
Note: LED may be difficult to see on high mount fixtures or in very bright areas.
3
Identification Mode Behavior
When placed in 'Blink to Identify' mode, the fixture will turn ON for 1 second, turn OFF for 1
second and repeats this cycle for 15 seconds.
Meaning
Device is unprovisioned and is detecting motion.
Device is provisioned and is detecting motion
The daylight sensor has exceeded 150% of the calibrated light
level for 30 minutes
2
Device is not detecting motion. If motion is occurring, ensure
device is powered and that the LED has not been disabled
through the mobile app.
3
determines the light level.
1
