IB500110EN

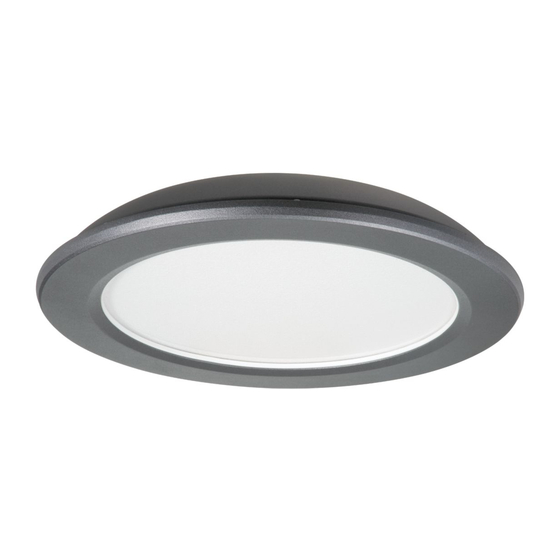

Installation Instructions – TopTier LED
Instructions d'installation – TopTier LED
Instrucciones de instalación – TopTier LED
Risk of Fire, Electrical Shock, Cuts or other Casualty Hazards- Installation and maintenance of this
product must be performed by a qualified electrician. This product must be installed in accordance
with the applicable installation code by a person familiar with the construction and operation of the
product and hazards involved.
Risk of Fire and Electric Shock- Make certain power is OFF before starting installation or attempting
any maintenance. Disconnect power at fuse or circuit breaker.
Risk of Fire- Refer to product label for specific minimum supply conductor requirements.
Risk of Burn- Disconnect power and allow fixture to cool before handling or servicing.
Risk of Personal Injury- Fixture may become damaged and/or unstable if not installed properly.
Failure to comply with these instructions may result in death, serious bodily injury and property damage.
DISCLAIMER OF LIABILITY: Cooper Lighting Solutions assumes no liability for damages or losses of any kind
that may arise from the improper, careless, or negligent installation, handling or use of this product.
NOTICE: Green ground wire provided in proper location. Do not relocate.
ATTENTION Receiving Department: Note actual fixture description of any shortage or noticeable damage on
delivery receipt. File claim for common carrier (LTL) directly with carrier. Claims for concealed damage must be
filed within 15 days of delivery. All damaged material, complete with original packing must be retained.
Safety: This fixture must be wired in accordance with the National Electrical Code and applicable local codes and
ordinances. Proper grounding is required to insure personal safety. Carefully observe grounding procedure under
installation section.
APPLICATIONS: TopTier luminaires are designed for outdoor, wet location use not to exceed 50˚C ambient.
Approved for ceiling/surface, parking garage, canopy, stairwell, low bay and rigid stem and swing pendant
applications.
Regulatory Information: This equipment has been test and found to comply with the limits of a Class A digital
device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
WARNING
WARNING
Brand Logo
reversed out of
black
INS #
INS #

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TopTier LED and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper Lighting TopTier LED

  • Page 1 Failure to comply with these instructions may result in death, serious bodily injury and property damage. DISCLAIMER OF LIABILITY: Cooper Lighting Solutions assumes no liability for damages or losses of any kind that may arise from the improper, careless, or negligent installation, handling or use of this product.
  • Page 2: Surface Mount Installation

    Installation Instructions - TopTier LED INSTALLATION Unhook quick mount plate from the wire hinge (Figure 3). Install the quick mount plate onto a wet location Tools Required junction box (Supplied By Others) using the hardware supplied (#8-32x3/4” or #6-32x3/4” screws). See...
  • Page 3 Installation Instructions - TopTier LED Make Electrical Connections. (Figure 5) Stem Mount (STM) Installation (Figure 7) Ensure wiring is centered through wire hinge. Install 1/2” rigid conduit (supplied by others) to conduit ote: fitting on fixture, threading wires through the conduit.
  • Page 4: Maintenance

    Installation Instructions - TopTier LED Wall Mount (WM) Installation (Figure 9) 10. Connect stem wires to power supply leads above swivel support. Follow steps 1-3 for Ceiling/Junction Box installation to remove the quick mount plate from the fixture. 11. Slide swivel canopy over swivel support and twist to engage tabs.
  • Page 5 La désobéissance aux instructions suivantes représente un risque de blessures graves ou mortelles et de dommages matériels. EXONÉRATION DE RESPONSABILITÉ : Cooper Lighting Solutions n’assume aucune responsabilité pour les dommages ou pertes de quelque nature que ce soit pouvant découler d’une installation, d’une manipulation ou d’une utilisation inappropriée, imprudente ou négligente de ce produit.
  • Page 6 Instructions d’installation - TopTier LED INSTALLATION Installez la plaque de montage rapide à une boite de jonction pour endroits humides (fournie par d’autres) en utilisant la quincaillerie fournie (vis n° 8-32 x 19,1 mm [3/4 po] ou n° 6-32 x 19,1 mm [3/4 po]). Consultez le Outils Requis guide d’alignement ci-dessus pour voir l’alignement des...
  • Page 7 Instructions d’installation - TopTier LED Effectuez les raccords électriques (Figure 5) fera entendre dès que le luminaire est complètement assis. Assurez-vous que le câblage est centré dans emarque: l’axe d’articulation. Pivotez les deux charnières de blocage pour les remettre en place puis serrez les vis de blocage à un a.
  • Page 8: Entretien

    Instructions d’installation - TopTier LED Installation Murale (Figure 8) Insérez la boule de pivotement de la tige et l’assemblage du luminaire dans le support pivotant. Suivez les étapes 1 à 3 pour l’installation de la boite de jonction ou de l’installation au plafond pour enlever la 10.
  • Page 9 El incumplimiento de estas instrucciones puede provocar la muerte, lesiones corporales graves y daños materiales. RENUNCIA DE RESPONSABILIDAD: Cooper Lighting Solutions no asume ninguna responsabilidad por daños o pérdidas de ningún tipo que puedan derivarse de la instalación, manipulación o uso incorrecto, descuidado o negligente de este producto.
  • Page 10: Instalación

    Instrucciones de instalación - TopTier LED INSTALACIÓN Desenganche la placa de montaje rápido de la bisagra para cables (Figura 3). Instale la placa de montaje rápido en una caja de Herramientas Necesarias derivación para ubicaciones húmedas (de otras marcas) usando los accesorios incluidos (tornillos n.º 8-32 x 3/4”...
  • Page 11 Instrucciones de instalación - TopTier LED Realice las Conexiones Eléctricas. (Figura 5) Conecte el conducto a la caja de derivación para ubicación húmeda certificada por UL (de otras marcas). Asegúrese de que el cableado esté centrado a través ota: Lleve a cabo las conexiones eléctricas según las pautas de la bisagra para cables.
  • Page 12: Mantenimiento

    Instrucciones de instalación - TopTier LED Instalación de Montaje en Pared (WM) (Figura 8) Inserte el extremo de la bola giratoria del caño y el conjunto de la luminaria en el soporte giratorio. Siga los pasos 1 al 3 para la instalación en el techo/caja de derivación para extraer la placa de montaje rápido de...
  • Page 13 Instrucciones de instalación - TopTier LED COOPER LIGHTING SOLUTIONS IB500110EN Instrucciones de instalación...
  • Page 14 Garanties et limitation de responsabilité Veuillez consulter le site www.cooperlighting.com pour obtenir les conditions générales. Garantías y Limitación de Responsabilidad Visite www.cooperlighting.com para conocer nuestros términos y condiciones. Cooper Lighting Solutions is a registered trademark. All trademarks are property of their respective owners.
