Test Daylight Sensor Operation

The daylight sensor response can be tested by placing the sensor into test mode. During test mode, the daylight fade rate is lowered to 10

seconds and the time delays for dim-to-off functionality is reduced. The faster response allows the sensor operation to be quickly verified on

site. If test mode is activated for a closed loop daylight sensor, it must be manually deactivated when the test is completed. Test mode will not

automatically shut off.

Note: If the device allows dim-to-off, when the measured light level exceeds 150% of the calibrated light level for more than 30 seconds, the sensor will

turn lighting OFF. Lighting will be turned back ON when one of the two conditions occurs. Condition 1: The measured light level falls between 100% and

50% of the calibrated light level for more than 20 seconds. Condition 2: The measured light level falls below 50% of the calibrated light level for longer

than 5 seconds

To use test mode:

1: Bring the mobile device within range (within 60 feet) of any provisioned WaveLinx Lite device in the desired area.

2: Ensure that the mobile device Bluetooth is turned on, and then open the WaveLinx Lite Mobile Application.

3: In the site list, select a site.

4: In the area list, select the desired area and verify that there is a network connection.

5: In the zone list, select the desired zone.

6: In the list of devices, locate the daylight sensor device. If needed, use the identify icon '

found, and then tap the device to open the device details.

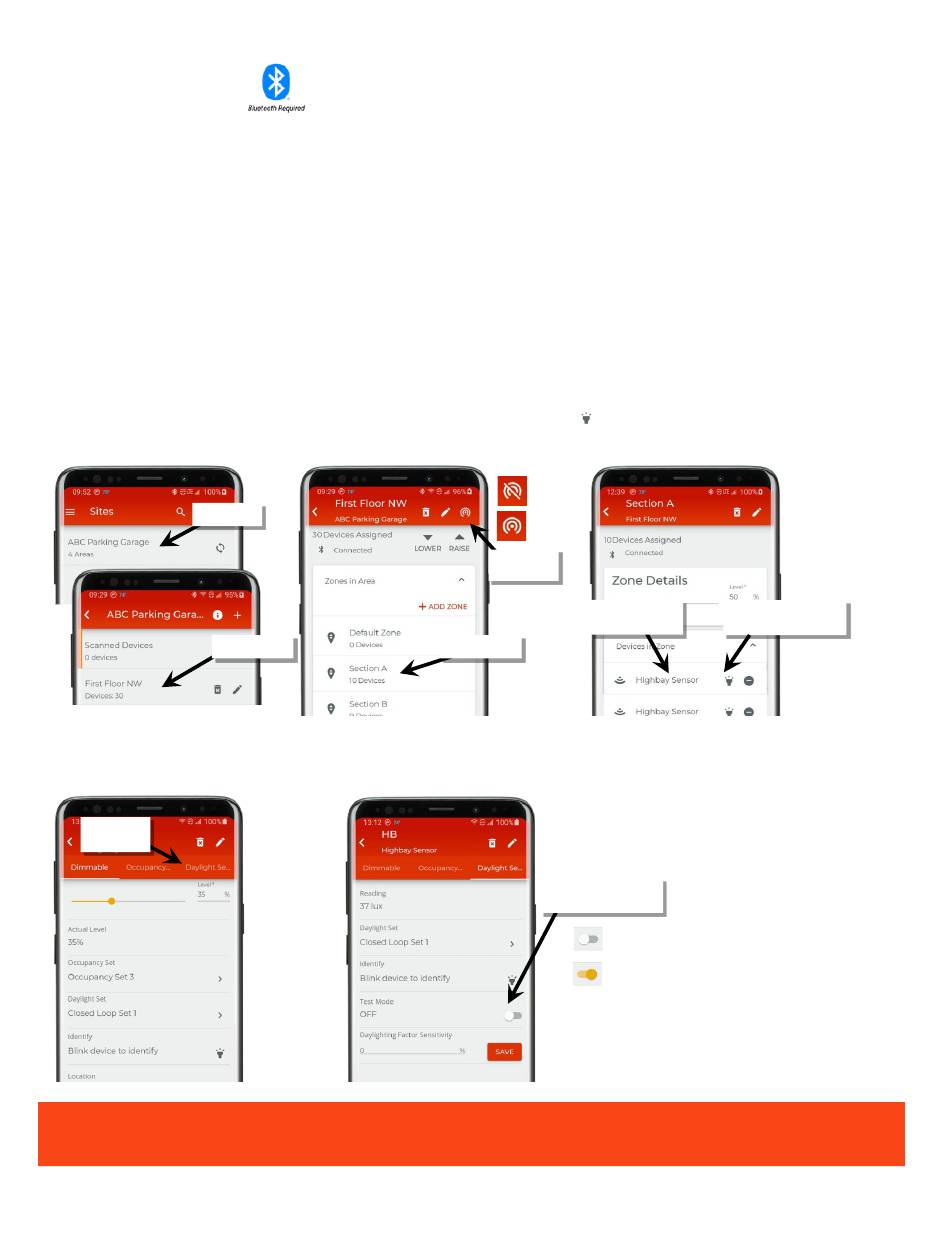

Select the site

Select the area

7: Tap 'Daylight Sensor' at the top of the device details pages to open to the daylight sensor view.
