StakMax Microplate Handling System User Guide
2. Remove the detached side from the stand and then use the
2.5 mm hex key screwdriver to attach the front installation
adapter in its place, as shown in Figure 1-9 and Figure 1-10.

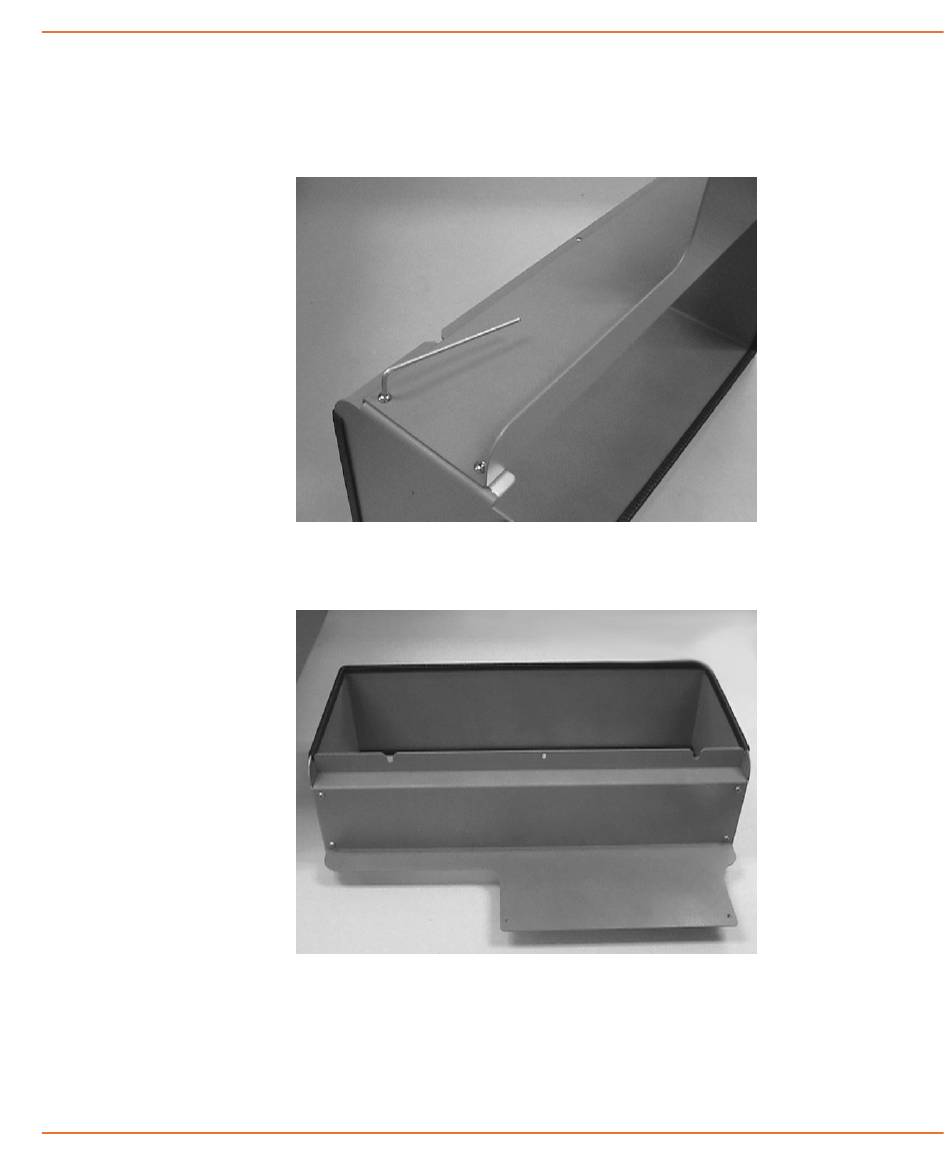

Figure 1-9 Attaching the front installation adapter
Figure 1-10 StakMax instrument stand with front installation
adapter attached
