Operation
76

Magazine Loading and Unloading Tool

The optional StakMax
loading and unloading a group of microplates to and from a StakMax
magazine.
Use the Magazine Loading and Unloading tool if you:
• want to load or unload a group of plates, without lifting plates
from the top of the magazine.
• do not want to leave the last plate on the bench.
The tool assembly consists of two parts:
• the Plate Loading Base, labeled Load Plates
• the Unload Plate Ring, labeled Unload Plates
The Unload Plate Ring fits in the recessed channel of the Plate Loading
Base for unloading plates and for storage of the tool.

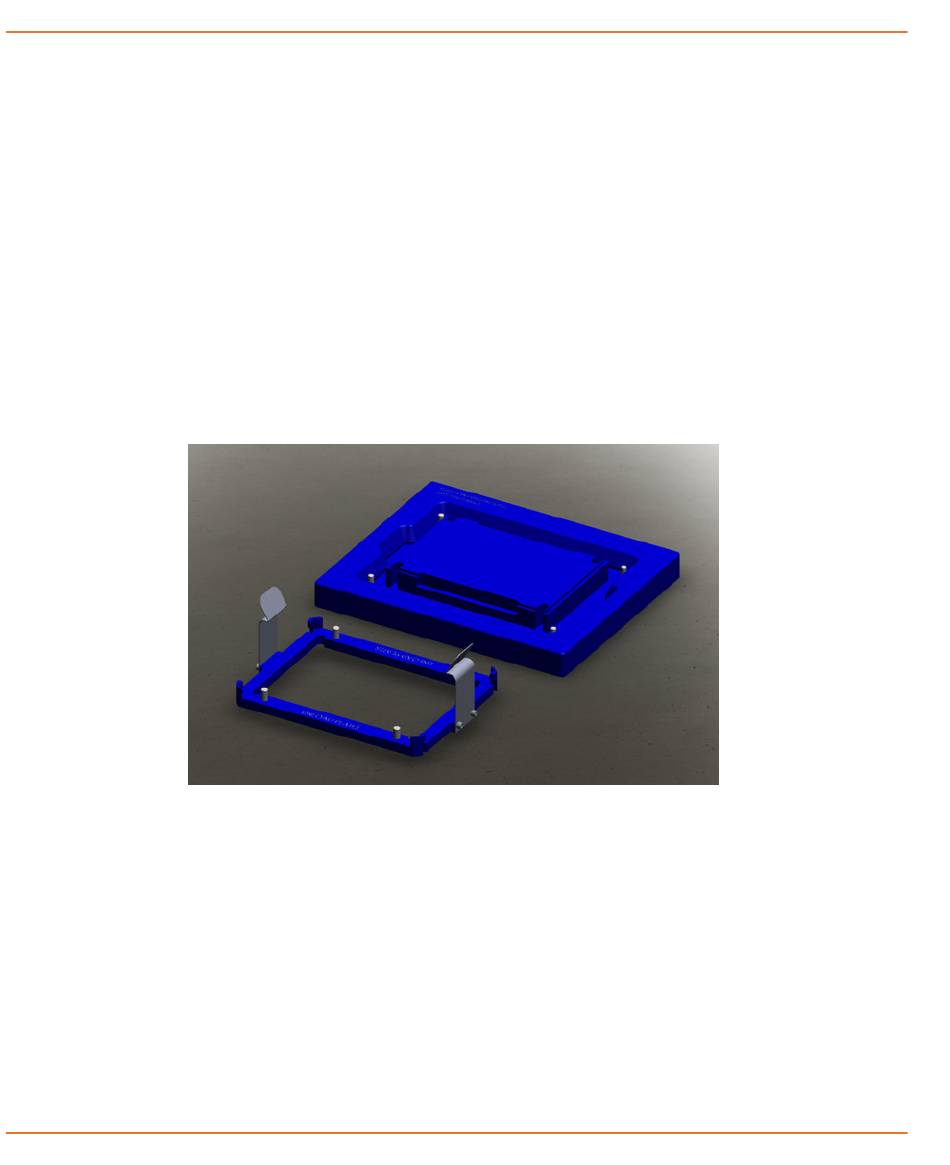

Figure 2-6 Plate Loading Base and Unload Plate Ring
Magazine Loading and Unloading Tool assists in
®
5012878 A
