Hardware design
3.2.12

DbgTX, DbgRx

They are transmission and receive line as well of the FC's Debug-interface. For the function
description of the Debug-interface see chapter 6 on page 23.
3.2.13

TX, RX

Transmission and receive line of the serial interface. This interface is programmable in accor-
dance with the description in chapter 4 on page 20.
3.2.14 TE
The transmit enable signal allows the connection of RS485 drivers to the IC's serial interface.
The signal is set to High whenever the FC sends via the line TX.
3.3

Software

The software executes script-commands, which in turn control the FC's hardware and they pro-
cess their complete protocol by software. The script itself can be generated by the company
Deutschmann Automation or with the software Protocol Developer by yourself. For a detailed
description of the script.commands of the Protocol Developer see the instruction manual
Protocol Developer and the online documentation concerning script-commands.
3.4

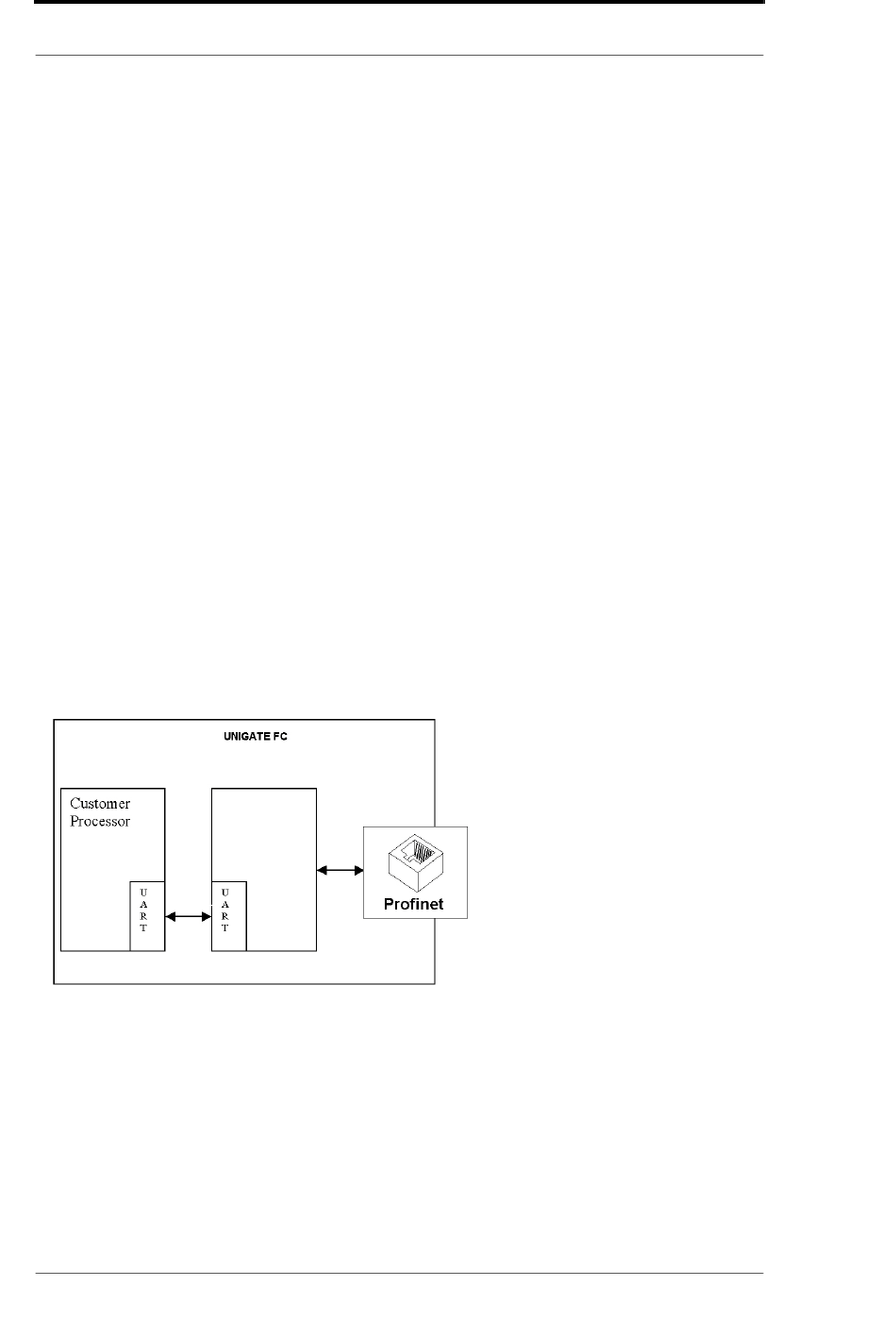

Basic line of proceeding

In theory it is enough to replace the RS232-driver that is included in your application by the
®
UNIGATE FC.
After the RS232-driver has been replaced by the UNIGATE
RJ45-socket.
14 Instruction manual UNIGATE
Deutschmann Automation GmbH & Co. KG
®
FC, PROFINET is available at an
®
FC - PROFINET 2Port V. 1.5 4.10.17
