DigiDesign D-Control Manual page 114

Press and hold the Calibration Mode switch until it flashes.
5
Adjust the Main Control Room Output level encoder until
6
the target reference level is displayed in the Monitor Section
display.
Press the flashing Cal switch.
7
Repeat steps 4–7 for the Alt and Mini outputs.
8
To toggle the output display between dB and dB SPL:
Select the output whose display you want to toggle (Main,
1
Alt, or Mini).
Do one of the following:
2
• To display output in dB SPL, press the Calibration Mode
switch so that it is lit.
– or –
• To display output in dB, press the Calibration Mode
switch so that it is unlit.
Mono Switch
The Mono switch mixes the Left and Right signals of any of
the output modes (any surround channels are not affected) to
provide mono output, useful for checking phase and balance
relationships. The Mono switch lights to indicate that it is ac-
tive.
Mono Trim Mode
Mono output can be trimmed to adjust its reference level in
comparison to other outputs. Available trim values range
from –12 dB to 0 dB, in 0.5 dB steps.
To trim mono output:
Press and hold the Mono switch until it flashes.
1
Turn Alt Output encoder knob to set the Mono trim value.
2
The monitor display shows "Trim" and the trim value in dB.
Press the flashing Mono switch to exit Trim mode.
3
106 D-Control Guide
Dim Switch
The Dim function applies an adjustable gain reduction to the
Control Room outputs. This function affects all three output
destinations. The Dim switch toggles the dim function on and
off, and lights to indicate that it is active.
The amount of gain reduction is set with the Dim Level con-
trol, located at the top right of the Control Room Output sec-
tion.
Mute Switch
The Mute switch toggles the mute state for all Control Room
outputs. Mute operates globally on all three output destina-
tions. The Mute switch lights to indicate that it is active.
If the Mute switch on the XMON interface front panel is acti-
vated, the Mute switch on D-Control must be used to unmute
the monitor system. (Outputs cannot be unmuted from
XMON front panel.)

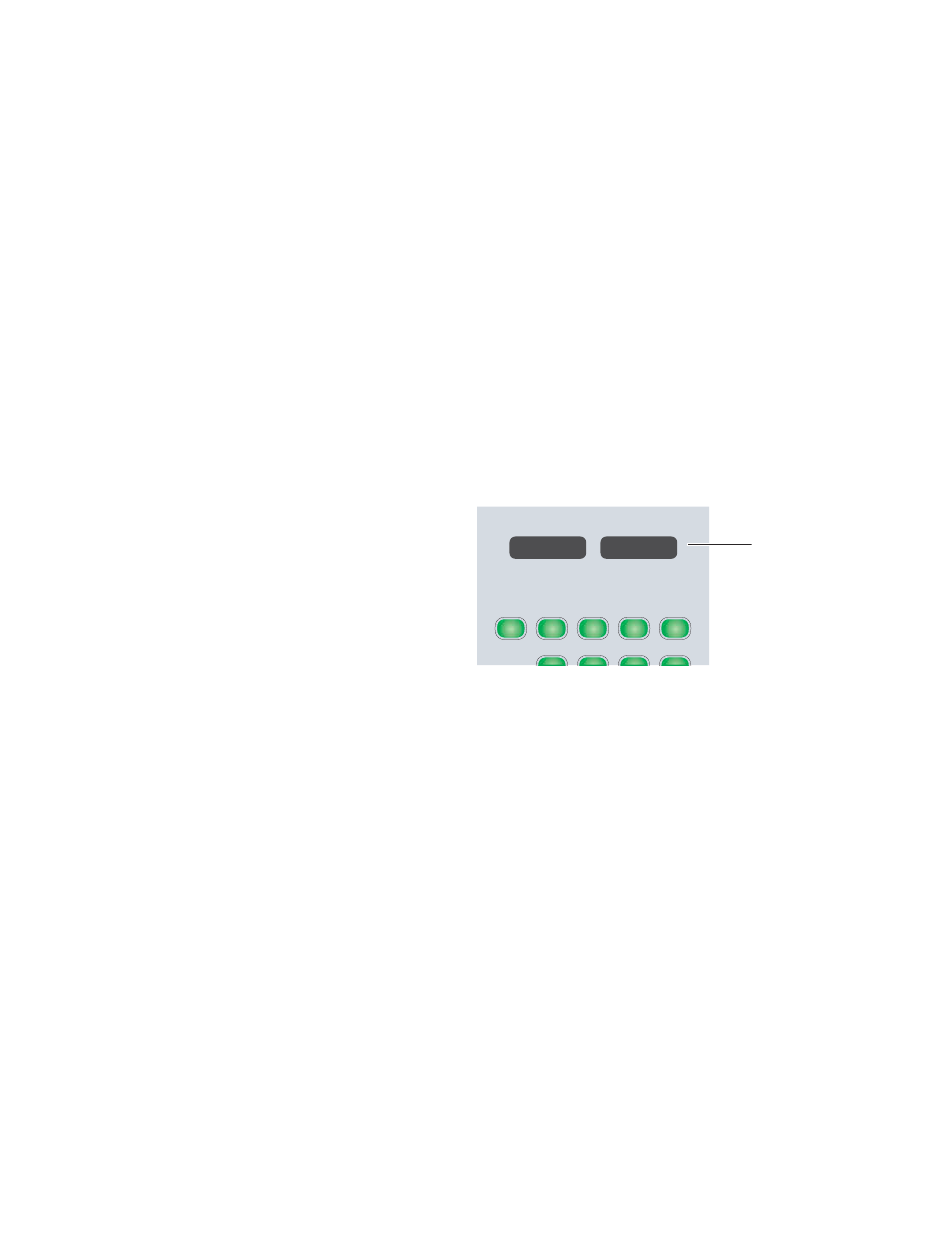

Monitor Displays
–6
Main
L Lc C Rc
Monitor Section displays
When any rotary encoder knob in the Monitor section is
touched, the LED displays show the name of the control and
its value.
Monitor displays
R
