Mechanical Specifications

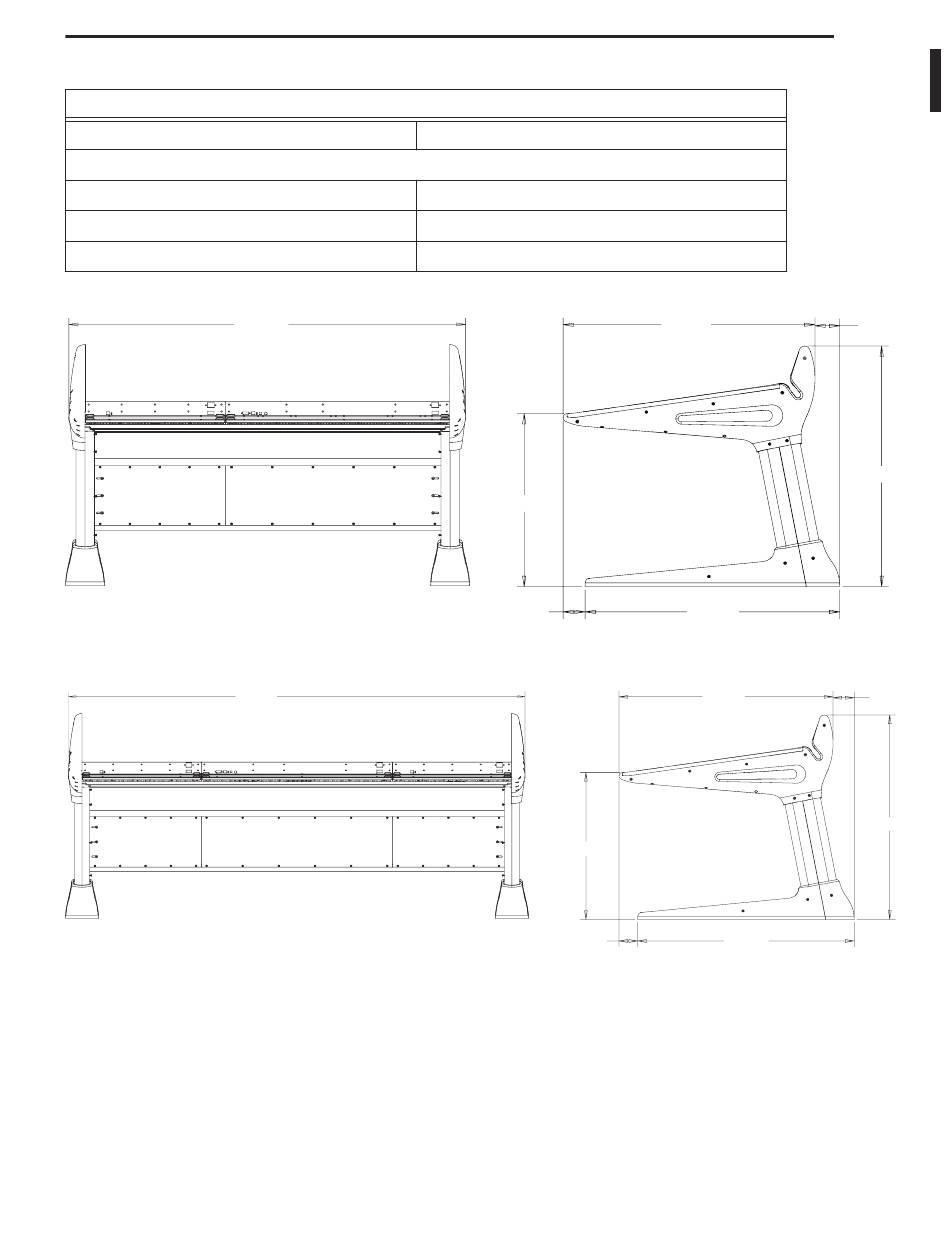

D-Control Stand Dimensions (not including video display arm)
Maximum Height
Maximum Width
Main Unit with 1 Fader Module (16-channel system)
Main Unit with 2 Fader Modules (32-channel system)
Maximum Depth
Figure 1. Stand dimensions for a 16-fader D-Control system
88.5 in
Figure 2. Stand dimensions for a 32-fader D-Control system
39.7 inches (100.9 cm)
65.3 inches (165.9 cm)
88.5 inches (224.8 cm)
45.7 inches (116.1 cm)
65.3 in 41.6 in
28.5 in
3.6 in
28.5 in
3.6 in
4.1 in
39.7 in
42.0 in
41.6 in
42.0 in
