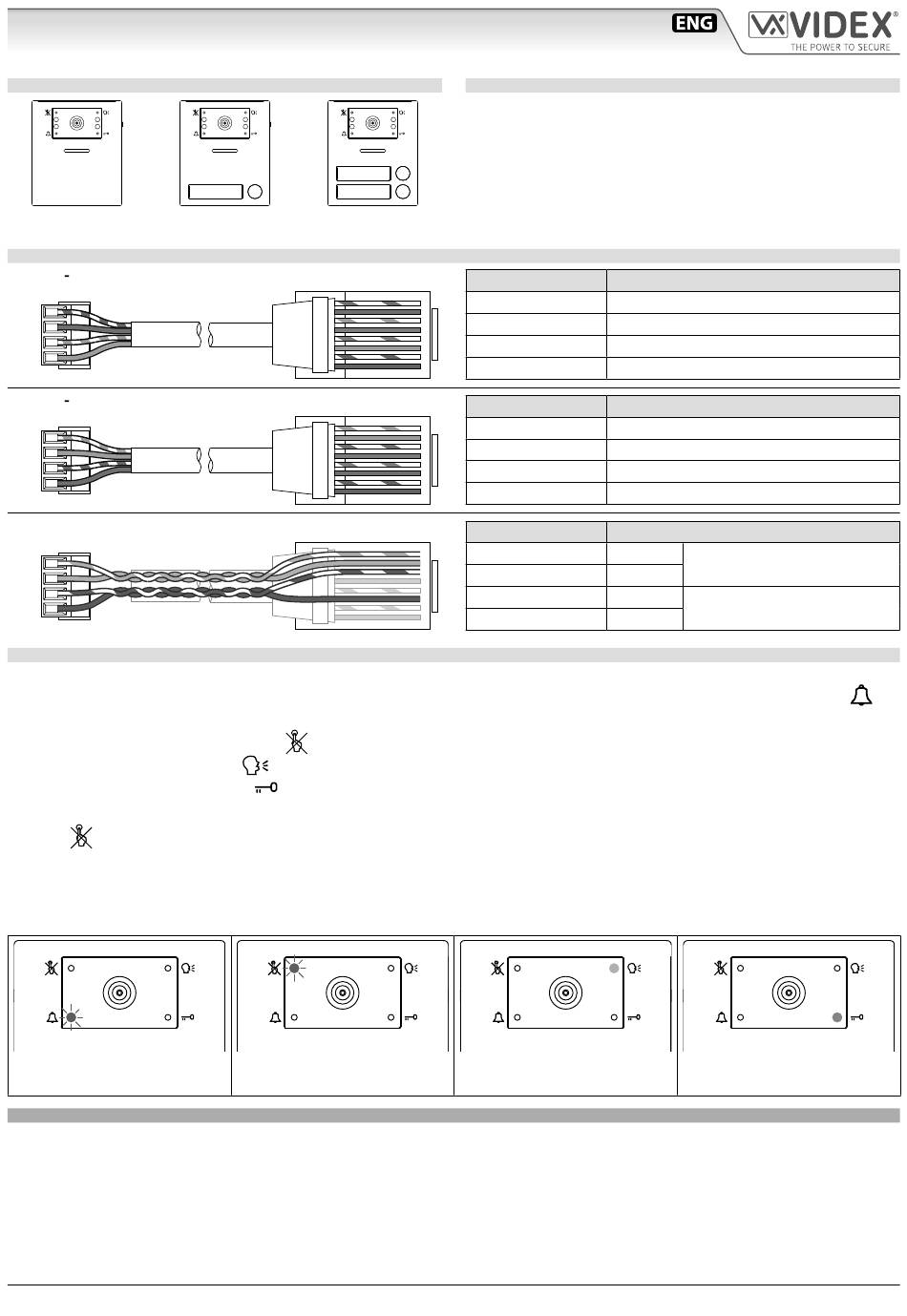

Videx IPVK Series Installation Handbook page 6

IPVK/6296 Series IP videokit
Art. 4533
IP speaker unit module for VIDEX IP System
AVAILABLE VERSIONS
Art. 4533-0
CONNECTION
EIA/TIA 568A
TX+
TX−
RX+
RX−
EIA/TIA-568A
EIA/TIA 568B
TX+
TX−
RX+
RX−
EIA/TIA-568B
OTHER STANDARD CABLES
TX+
TX−
RX+
RX−
OPERATION
The system operation is supported by the built-in LED.
• When a visitor press a call button the units emits an intermittent deep call tone and in correspondence with the tone the
LED flashes (Fig. 3) until the resident answer or the programmed call time expires.
• If the called indoor station is busy the
• When the resident answers, the
• If the resident open the door, the
ERROR MESSAGES
The LED is used also to provide error messages concerning system misfunctions:
• A fast flashing LED shows connection to the push notification service is being made. This should only be temporary; if this persists then
there is something not working correctly;
• Slow flashing means that the gateway set cannot be reached;
• fixed on means that the SIP server cannot be reached or connection not allowed because of wrong credentials.
Fig. 3 Call in progress
FACTORY DEFAULT PROCEDURE FOR ENTRANCE PANEL SUPPLIED WITH VIDEOKITS
The following procedure can be used to reset and pair the videophone and entrance panel supplied in a one apartment or two
apartment kit. Once paired the door panel will call the videophones without any further setup required. Additional setup is optional
to set device names, specific IP addresses etc. The default IP addresses are:
Entrance panel 192.168.1.180 // Videophone 1 192.168.1.181 // Videophone 2 192.168.1.182
IPVK/6296 Series - Installation handbook
Art. 4533-1 Art. 4533-2
red LED flashes (Fig. 4) 4 times quickly and the unit emits a deep tone on each flash.
yellow LED (Fig. 5) illuminates and remains illuminated until the conversation terminates.
green illuminates (Fig. 6) for the programmed door opening time.
Fig. 4 Calling a busy indoor
station
PROGRAMMING
The programming of the module is carried out through the VI-
DEX IP Wizard software.
There are some adjustments available directly on the module:
• Microphone volume through the relevant trimmer;
• Speaker volume through the relevant trimmer;
• RS-485 connection termination.
For the module programming refer to the section VIDEX IP Wizard.
4533 signals
TX+
1
2
TX–
3
4
5
RX+
6
7
RX–
8
4533 signals
TX+
1
2
TX–
3
4
5
RX+
6
7
RX–
8
4533 signals
TX+
1
2
3 TX–
4
5
RX+
6
7
RX–
8
Fig. 5 The conversation is in
progress
- 6 -
RJ-45 pin
PIN 1 - White-green
PIN 2 - Green
PIN 3 - White-orange
PIN 6 - Orange
RJ-45 pin
PIN 1 - White-orange
PIN 2- Orange
PIN 3 - White-green
PIN 6 - Green
RJ-45 pin
PIN 1
Twisted pair
PIN 2
PIN 3
Twisted pair
PIN 6
Fig. 6 Door opening
66550062-EN - V5.0 - 31/10/19
red
