IPVK/6296 Series IP videokit
Art. 6296
IP Videophone for VIDEX IP System
INTERCOMMUNICATING CALL TO AN EXTENSION
The intercommunicating call is possible to any intercom stored in the videophone's "intercoms address book".
The "intercoms address book" is populated using the configuration software "Videx IP Wizard".
• Tap on the intercommunicating call icon (Fig. 53)*, if the "intercoms address book" is empty a warning is shown (Fig. 56).
• Select the indoor station to connect to then tap the call button to open the communication (Fig. 57).
• The intercommunicating call proceeds as described in paragraph "Switching between door panel camera and
external video source" on page 23.
* If the intercoms address book includes one indoor station only, tapping on the icon launches the call to the videophone immediately (
ACTIVATION OF A DOOR PANEL'S RELAY
The videophone can activate any relay stored in the videophone's "outputs" list.
The "outputs" list is populated using the configuration software "Videx IP Wizard".
• Tap on the service icon (Fig. 53)*, if the "Remote Output List" is empty a warning is shown (Fig. 58).
• Select the relay to activate (Fig. 59) then tap the tick button to activate it (Fig. 60).
• Activate another service otherwise tap on the go back button to go back to the main menu (Fig. 53).
* If the outputs list includes one relay only, tapping on the icon activates the relay immediately.

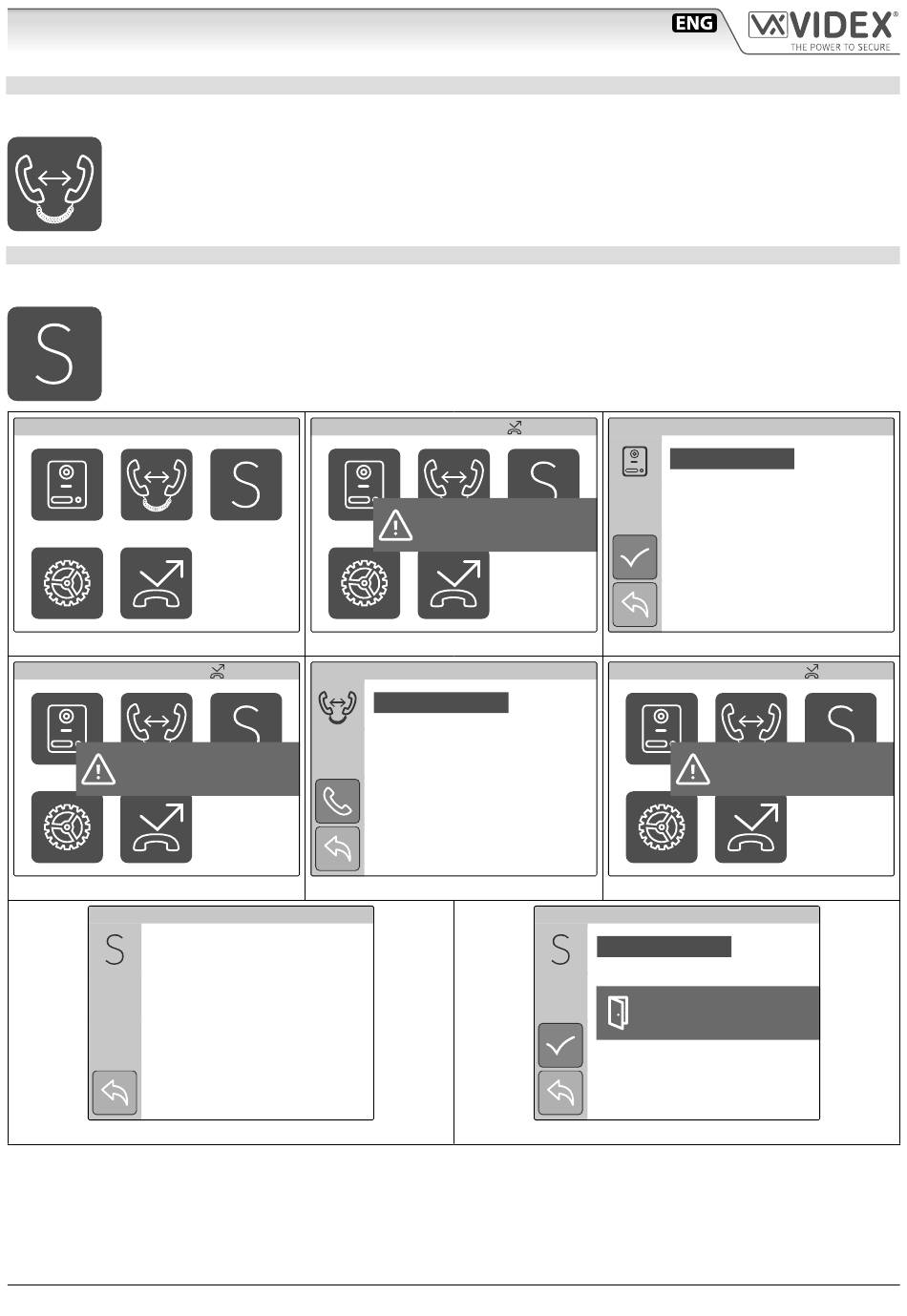

MAIN MENU
Fig. 53
Main menu
MAIN MENU
Intercoms Address Book
Is Empty
Fig. 56 Intercoms Address Book is Empty
SELECT AN OUTPUT
Pedestrian Gate
Car Gate
Fig. 59
Select the relay to activate
IPVK/6296 Series - Installation handbook
15:30
MAIN MENU
Fig. 54
Panel Address Book is Empty
15:30 SELECT AN EXTENSION
Ground Floor
First Floor
Fig. 57 Select the extension to call
15:30
- 25 -
15:30
SELECT A CALL POINT
Panel Address Book
Is Empty
Fig. 55
15:30 MAIN MENU
Fig. 58
SELECT AN OUTPUT
Pedestrian Gate
Car Gate
Fig. 60
Tap on tick button to activate the relay
Fig. 47 on page 24
Main Entrance
Back Entrance
Select the door panel to recall
Remote Output List
Is Empty
Remote Output List Is Empty
15:30
Pedestrian Gate
66550062-EN - V5.0 - 31/10/19
).
