IPVK/6296 Series IP videokit
Art. 4533
IP speaker unit module for VIDEX IP System
A
B
C
D

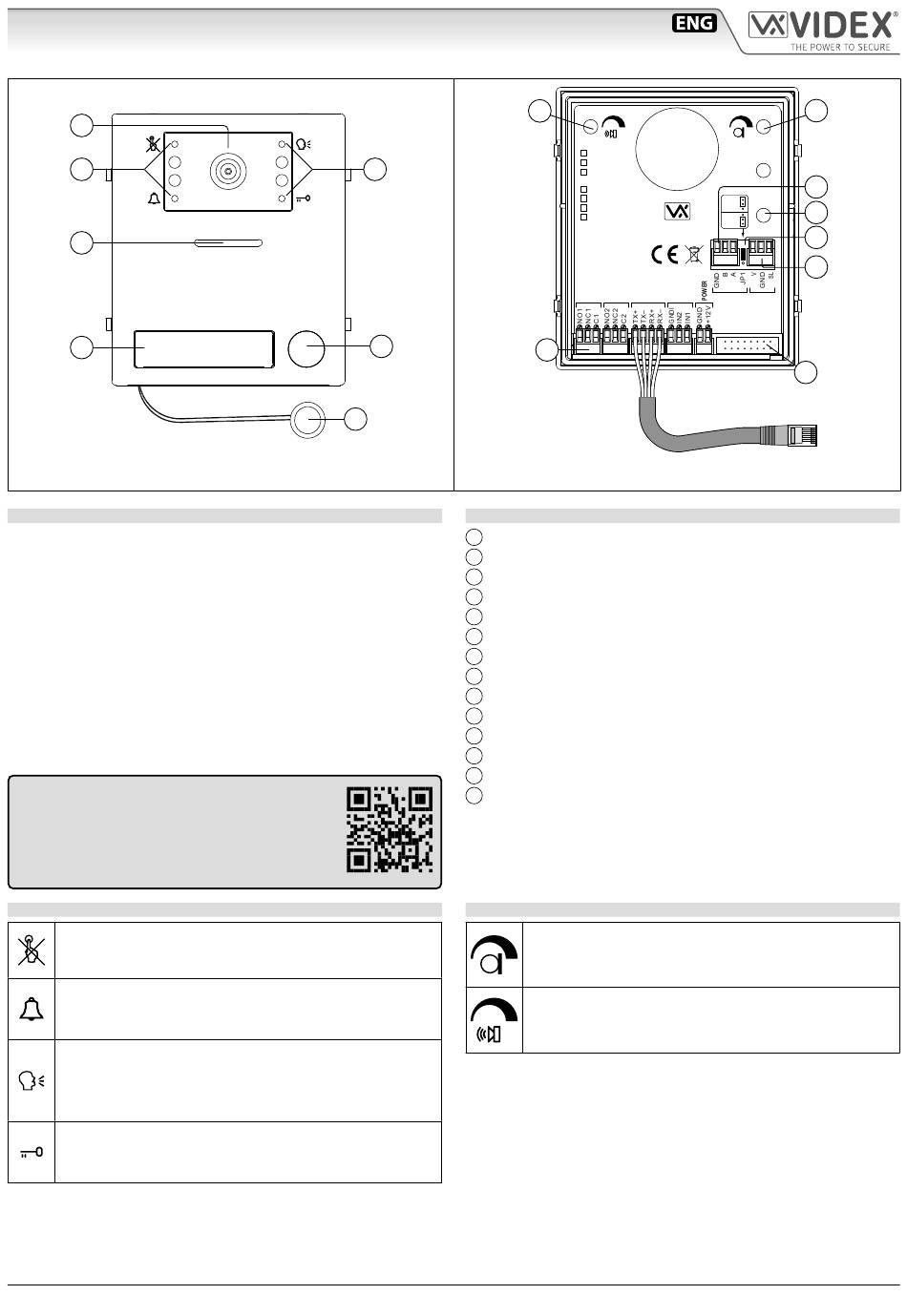

Fig. 1 Front
DESCRIPTION
IP speaker unit module with built-in wide colour camera with
autoiris lens and white light illumination LEDs. Depending on
the speaker unit version it includes zero, one or two call push
buttons. The unit circuitry incorporates:
• The transmitting amplifier with microphone and volume control;
• The receiving amplifier with volume control;
• Two enslavement relay to enable electric lock and an additional ser-
vice (3 contacts each: common, normally open and normally closed).
• The call buttons from 0 to a maximum of 2 depending on the
module version;
• The illumination LEDs for the card name holder;
• The camera comprised of illumination LEDs.
To download the programming software
VX IP Wizard and obtain the latest firmware
and manuals please visit the following web-
site and register
https://service.videx.it/
LEDS
Flashes when the called indoor station is busy.
The LED will be off when the system is in stand-by.
If illuminated, indicates that the call from the outdoor sta-
tion is in progress. The LED will switch OFF when the call
is answered or expired the call time without any answer.
If illuminated, indicates that it is possible to speak be-
cause the call has been answered. The LED will switch
OFF at the end of a conversation (or at the end of the
conversation time).
If illuminated, indicates that the door lock has been op-
erated. It will switch OFF at the end of the programmed
"door opening" time.
IPVK/6296 Series - Installation handbook
B
E
F
Fig. 2 Back
LEGEND
A Camera with illumination LEDs
B Operation LEDs
C Loudspeaker
D Card name holder
E
Call push button (0, 1 or 2 depending on the model)
F
Microphone
G Loudspeaker volume
H Microphone volume control
I RS485 connection terminals
L Boot loader push button for firmware update
M
RS485 termination jumper
N
External camera connection terminals
O Button expansion modules connector
P System connection terminals
CONTROLS
- 5 -
G
4533-0
4533-1
4533-2
STEEL
ALI
HIGH BRASS
MATTE
Made in Italy
RELAY 1 RELAY 2 ETHERNET INPUTS
P
Fare riferimento alla tabella CONNESSIONE
Microphone volume
Adjust the microphone volume.
Rotate clockwise to increase or anti-clockwise to decrease
Loudspeaker volume
Adjust the loudspeaker volume.
Rotate clockwise to decrease or anti-clockwise to increase
