Examine the labeling on your carrier board and figure out whether you have a
BASIC Stamp HomeWork Board Rev B or a Board of Education Rev C, B, or A.
(916) 624-8333
www.parallaxinc.com
Rev B
www.stampsinclass.com
Vdd Vin Vss
X3
BASIC Stamp
HomeWork Board Rev B
15 14 13 12
Red
Black
X4 X5
Rev B
Vdd Vin Vss
X3
Board of Education Rev B
√
Knowing the revision of your carrier board, skip to instructions (listed below) for
connecting the servo to your board:
Page 60
Page 63
Board of Education Rev B
If you have a Board of Education Rev B, follow the instructions for the Board of Education
Rev C throughout the text, always keeping these two points in mind:
•
The Board of Education Rev B does not have a 3-positioin switch. You will have
to disconnect battery pack's plug from the Board of Education's power jack when
directed to set the 3-position switch to position-0. When directed to set the 3-
position switch to position-1 or 2, you will have to plug the power in.
•
The Board of Education Rev B does not have a jumper setting for power. Only
use the 6 V battery pack as a power source for Board of Education Rev B Boe-
Bot projects.
Board of Education Rev A
If you have a Board of Education Rev A, follow the instructions for the BASIC Stamp
HomeWork Board throughout the text.
Chapter 2: Your Boe-Bot's Servo Motors · Page 59
P3
P2
P1
P0
X2
Board of Education
Rev C
© 2000-2003
Board of Education Rev C
VR1
Vdd
nc
X3
X2
5
Board of Education Rev A
→ Board of Education Rev C
→ BASIC Stamp HomeWork Board

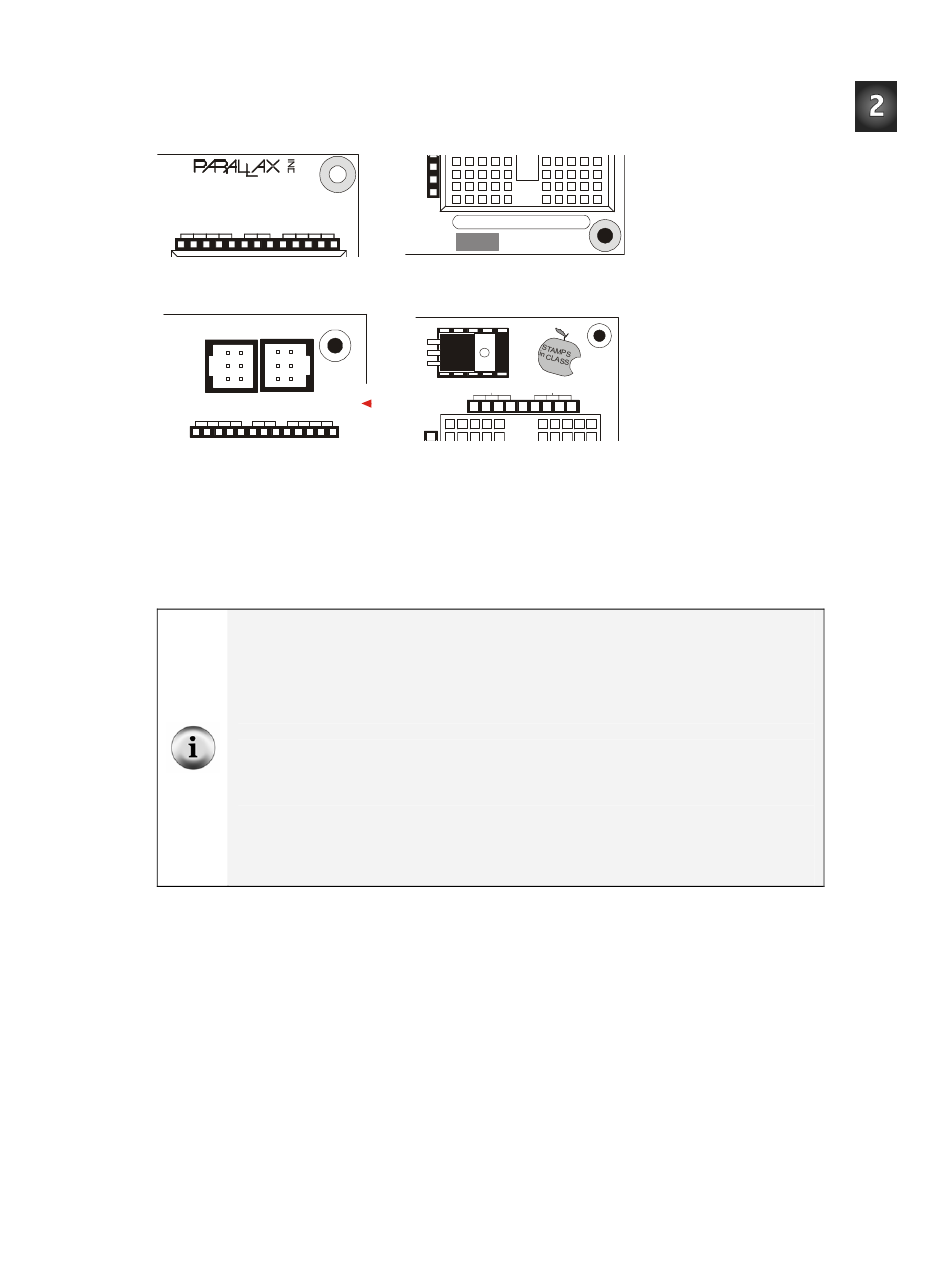

Figure 2-10
Examples of Rev
Labels on the
BASIC Stamp
HomeWork Board
Rev A
and the Board of
Education
Vss
