With the Board of Education Rev C

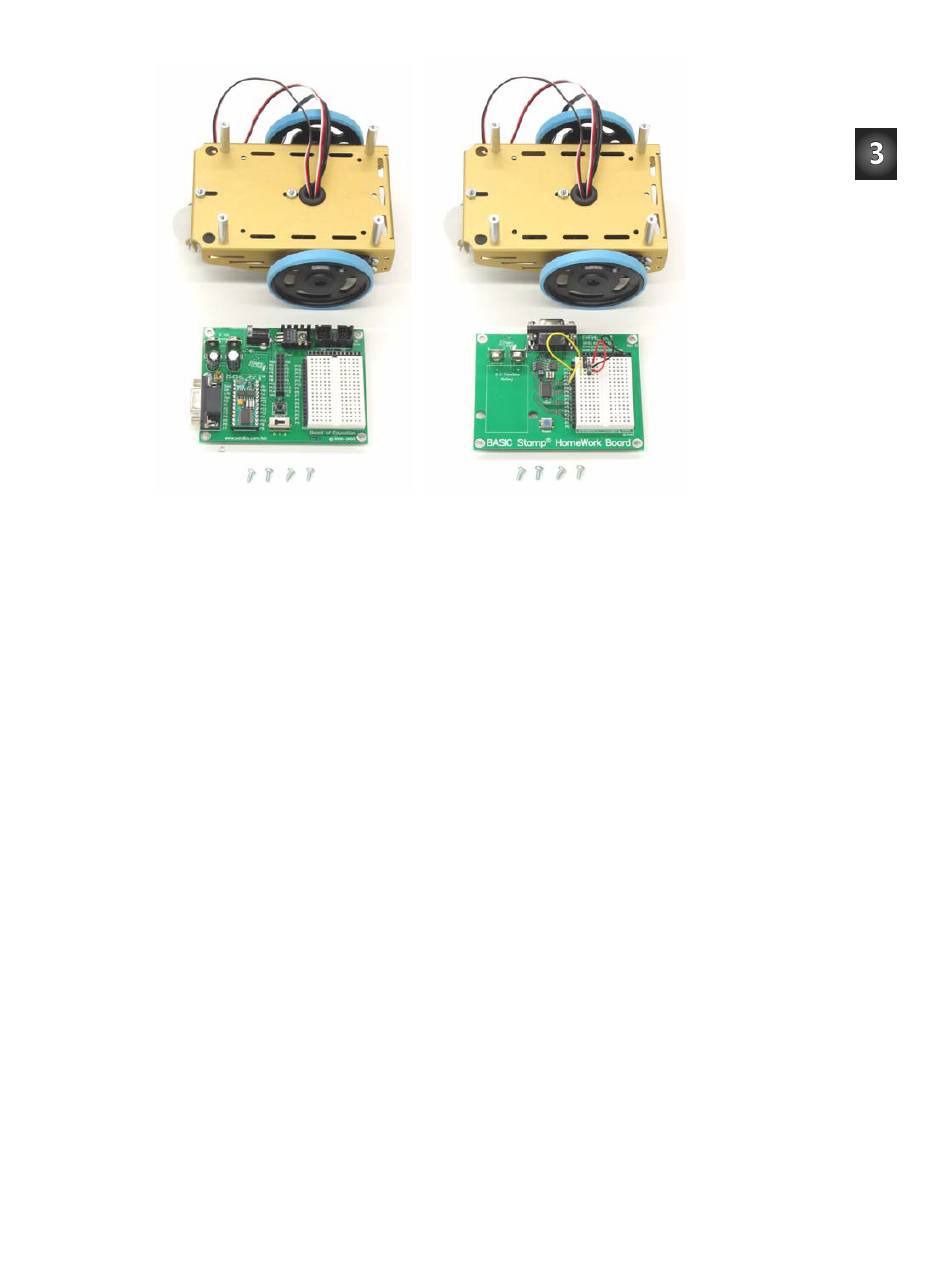

Figure 3-10 shows the servo ports reconnected for both the Board of Education Rev C
(left side) and the HomeWork Board (right side).
√
Reconnect the servos to the servo headers.
√
Make sure to connect the plug labeled 'L' to the P13 port and the plug labeled
'R' to the P12 port.
Chapter 3: Assemble and Test Your Boe-Bot · Page 99
With the HomeWork Board
Figure 3-9
Boe-Bot Chassis
and Boards
