Parallax Boe-Bot Student Manual page 114

Page 100 · Robotics with the Boe-Bot
White
Red
Black
15 14 13 12
Vdd
Red
Black
X4 X5
On Board of Education Rev C

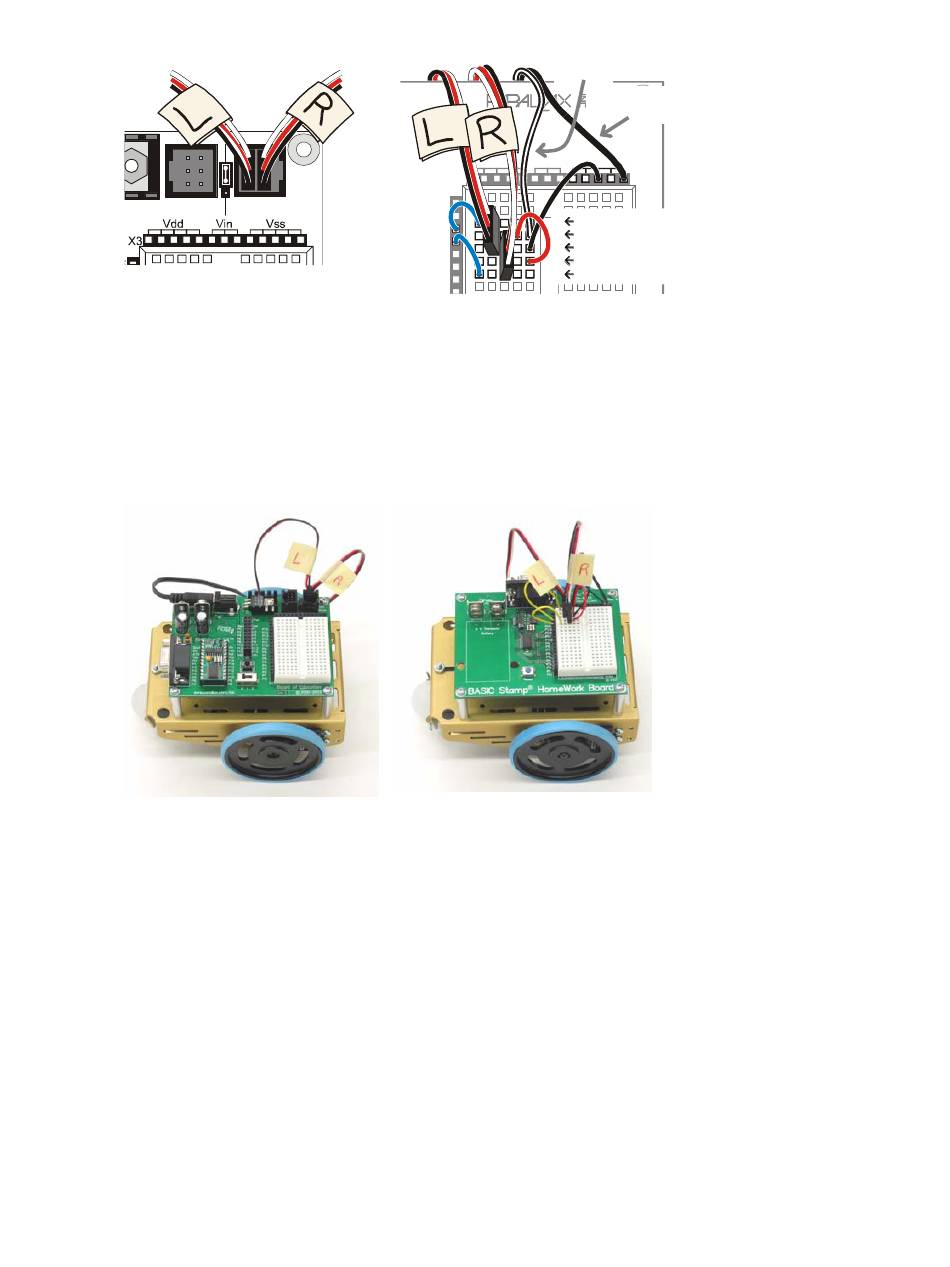

Figure 3-11 shows the Boe-Bot chassis with their respective boards attached.
√
Set the board on the four standoffs so that they line up with the four holes on the
outer corner of the board.
√
Make sure the white breadboard is closer to the drive wheels, not the tail wheel.
√
Attach the board to the standoffs with the pan head screws.
With Board of Education Rev C
Figure 3-12 shows assembled Boe-Bots, the left built with a Board of Education Rev C
and the right built with a HomeWork Board.
White
Red
Black
(916) 624-8333
www.parallaxinc.com
www.stampsinclass.com
Vdd
X3
P15
P14
P13
P12
P11
P10
P9
P8
On HomeWork Board
With HomeWork Board
White
Stripe
Solid
Figure 3-10
Black
Servo Ports
Rev B
Reconnected
Vin Vss
Board of
Education Rev
C (left)
P13 - White
HomeWork
Vbp - Red
Vss - Black
Board (right).
Vbp - Red
P12 - White
Figure 3-11
Boards Attached
to Boe-Bot
Chassis
