JOG mode via keypad can be activated:
•
•
•
•
•
Warning!
80
80

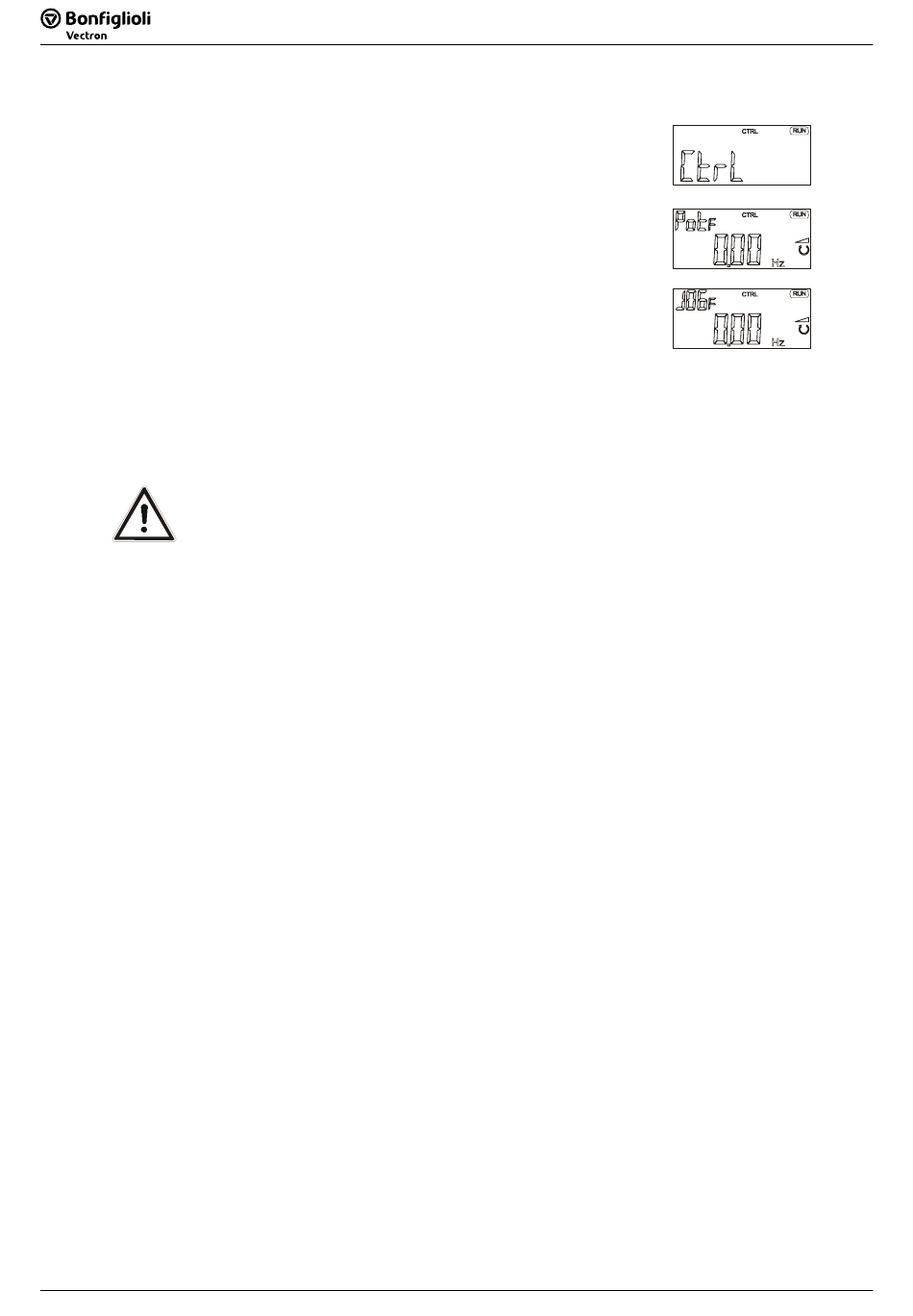

Navigate to the CTRL menu.
Actuate the ENT-key. Signal CTRL flashes.
Actuate the ENT-key again to reach the local operation
mode (stopped).
Use the FUN-key to travel with
While the key is actuated the drive runs. If the key is not
actuated any more the drive will be stopped at the decel-
eration ramp.
Use the ENT-key to change the direction of rotation. The
direction of rotation is indicated at the display via an ar-
row and „F" (Forward) or „R" (Reverse). The direction of
rotation can be changed at standstill or during travel op-
erations.
The RUN-key of the keypad allows manual operation in all configura-
tions. This manual operation uses the fixed speed as the reference val-
ue. Direction of rotation and travel speed of both modes can be differ-
ent. If you use the manual operation pay attention to the parameter
settings.
Application manual Positioning
Application manual Positioning
Jog-Speed Keypad
1174.
04/08
04/08
