Features; Equipment Needed; Software Needed; Documents Needed - Analog Devices AD9642 User Manual

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the

FEATURES

Full featured evaluation board for the
AD9642/AD9634/AD6672
SPI interface for setup and control
External or AD9523 clocking option
Balun/transformer or amplifier input drive option
LDO regulator power supply
VisualAnalog and SPI controller software interfaces

EQUIPMENT NEEDED

Analog signal source and antialiasing filter
Sample clock source (if not using the on-board oscillator)
2 switching power supplies (6.0 V, 2.5 A), CUI
EPS060250UH-PHP-SZ, provided
PC running Windows® 98 (2nd ed.), Windows 2000,
Windows ME, or Windows XP
USB 2.0 port recommended (USB 1.1 compatible)
AD9642, AD9634, or AD6672
HSC-ADC-EVALCZ FPGA-based data capture kit

SOFTWARE NEEDED

VisualAnalog
SPI controller

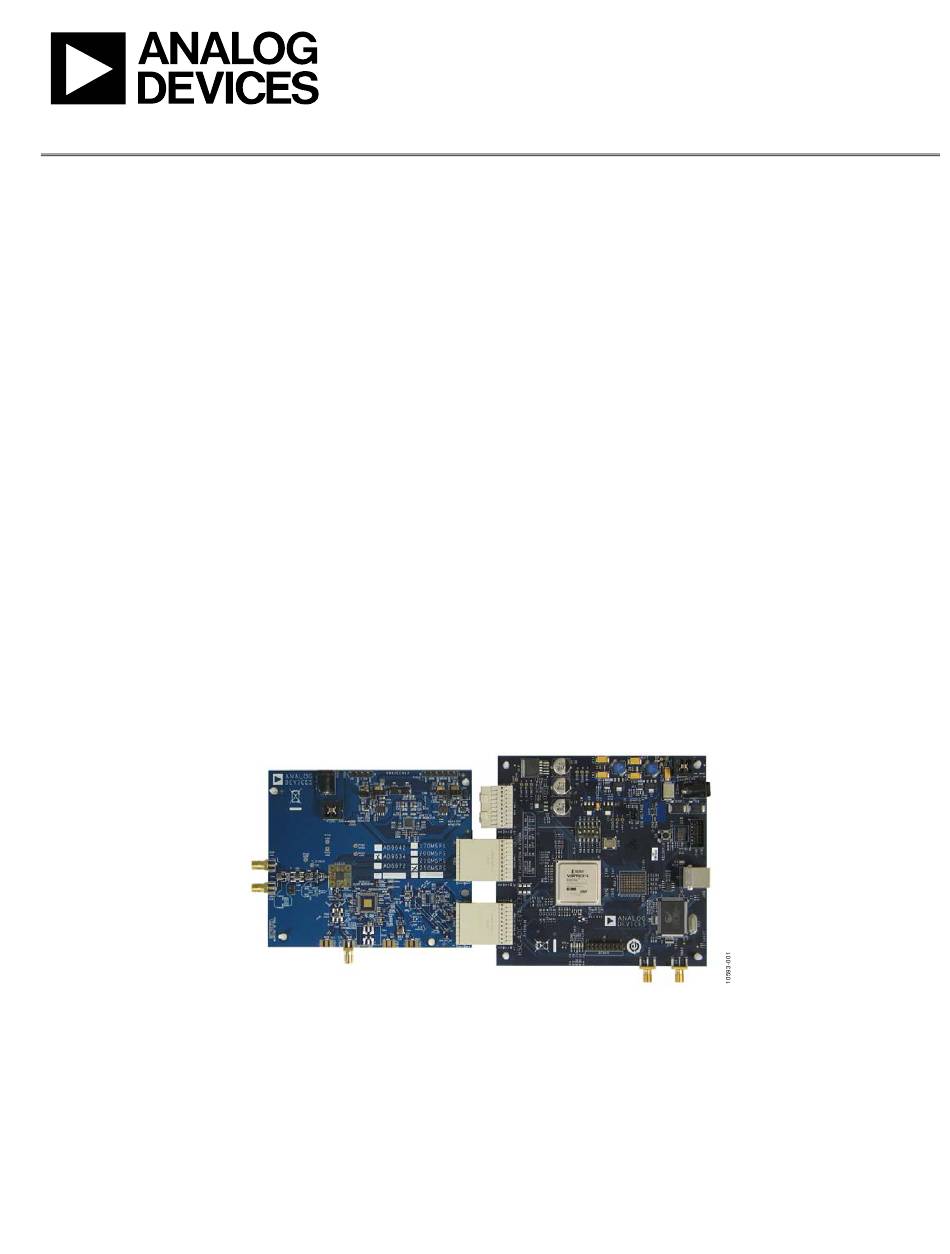

Figure 1. AD9642, AD9634, or
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD9642/AD9634/AD6672
evaluation board

TYPICAL MEASUREMENT SETUP

AD6672 Evaluation Board (on Left) and
AD9642/AD9634/AD6672 User Guide
Analog-to-Digital Converters

DOCUMENTS NEEDED

AD9642, AD9634, or
HSC-ADC-EVALCZ
AN-905 Application
Tool Version 1.0 User Manual
AN-878 Application
AN-877 Application
AN-835 Application
Evaluation

GENERAL DESCRIPTION

This user guide describes the AD9642, AD9634, and
evaluation board, which provides all of the support circuitry
required to operate the AD9642, AD9634, and
various modes and configurations. The application software
used to interface with the devices is also described.
The AD9642, AD9634, and
additional information and should be consulted when using the
evaluation board. All documents and software tools are available at
http://www.analog.com/fifo. For additional information or
questions, send an email to highspeed.converters@analog.com.
HSC-ADC-EVALCZ
Rev. A | Page 1 of 26
AD6672 data sheet
data sheet
Note, VisualAnalog Converter Evaluation
Note, High Speed ADC SPI Control Software
Note, Interfacing to High Speed ADCs via SPI
Note, Understanding ADC Testing and
AD6672
AD6672 data sheets provide
Data Capture Board (on Right)
UG-386
AD6672
in their
