UG-386
2. Click the New DUT button in the SPIController window
(see Figure 9).
NEW DUT BUTTON

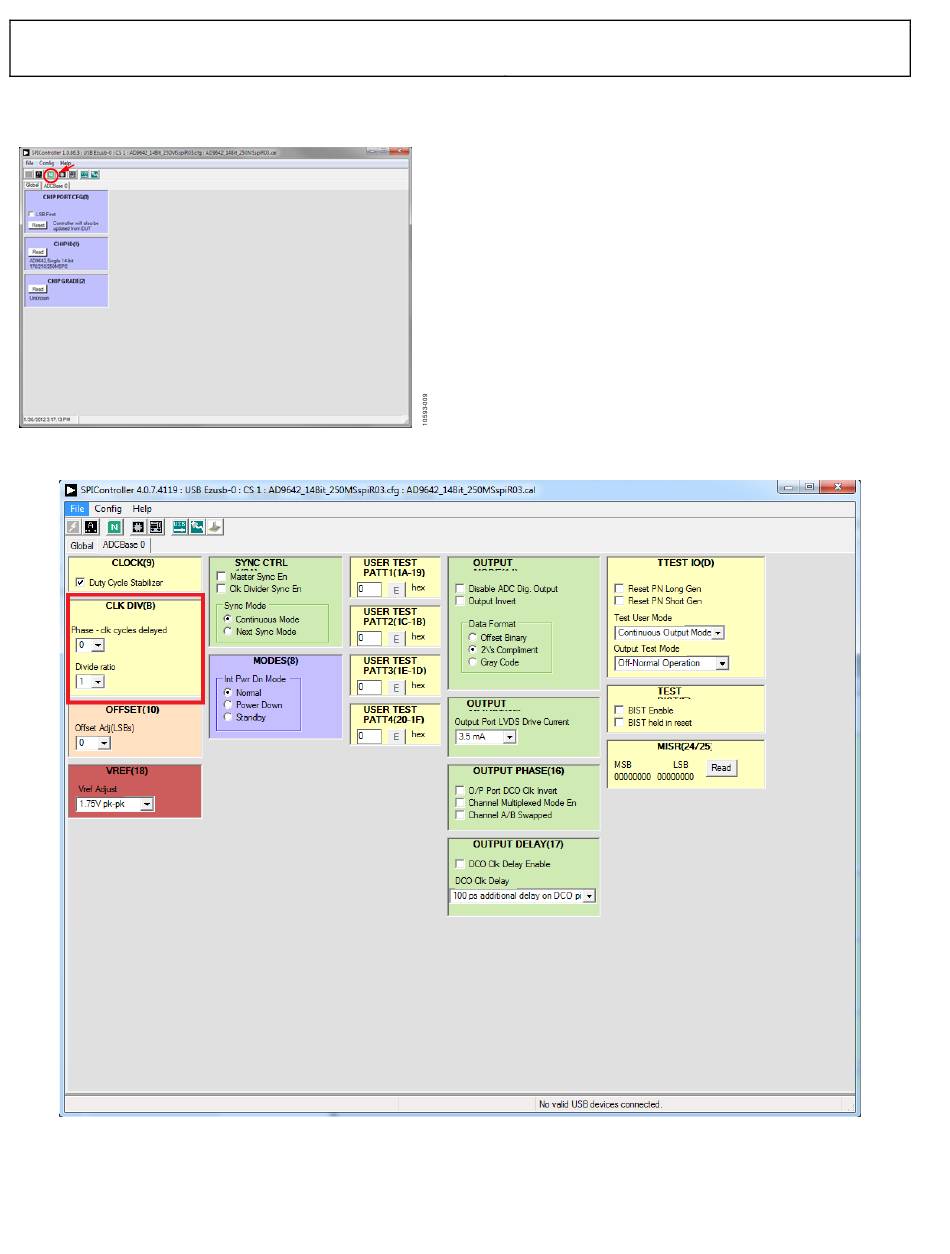

Figure 9. SPI Controller, New DUT Button
3. In the ADCBase 0 tab of the SPIController window, find the
CLK DIV(B) section (see Figure 10). If using the clock
divider, use the drop-down box to select the correct clock
divide ratio, if necessary. See the appropriate part data sheet;
the
Software; and the
High Speed ADCs via SPI, for additional information.
Note that other settings can be changed on the ADCBase 0
tab (see Figure 10). See the appropriate part data sheet; the
AN-878 Application
Software; and the
High Speed ADCs via SPI, for additional information on
the available settings.
Figure 10. SPI Controller, CLK DIV(B) Section
Rev. A | Page 8 of 26
AD9642/AD9634/AD6672 User Guide
AN-878 Application Note, High Speed ADC SPI Control
AN-877 Application
Note, High Speed ADC SPI Control
AN-877 Application
Note, Interfacing to
Note, Interfacing to
