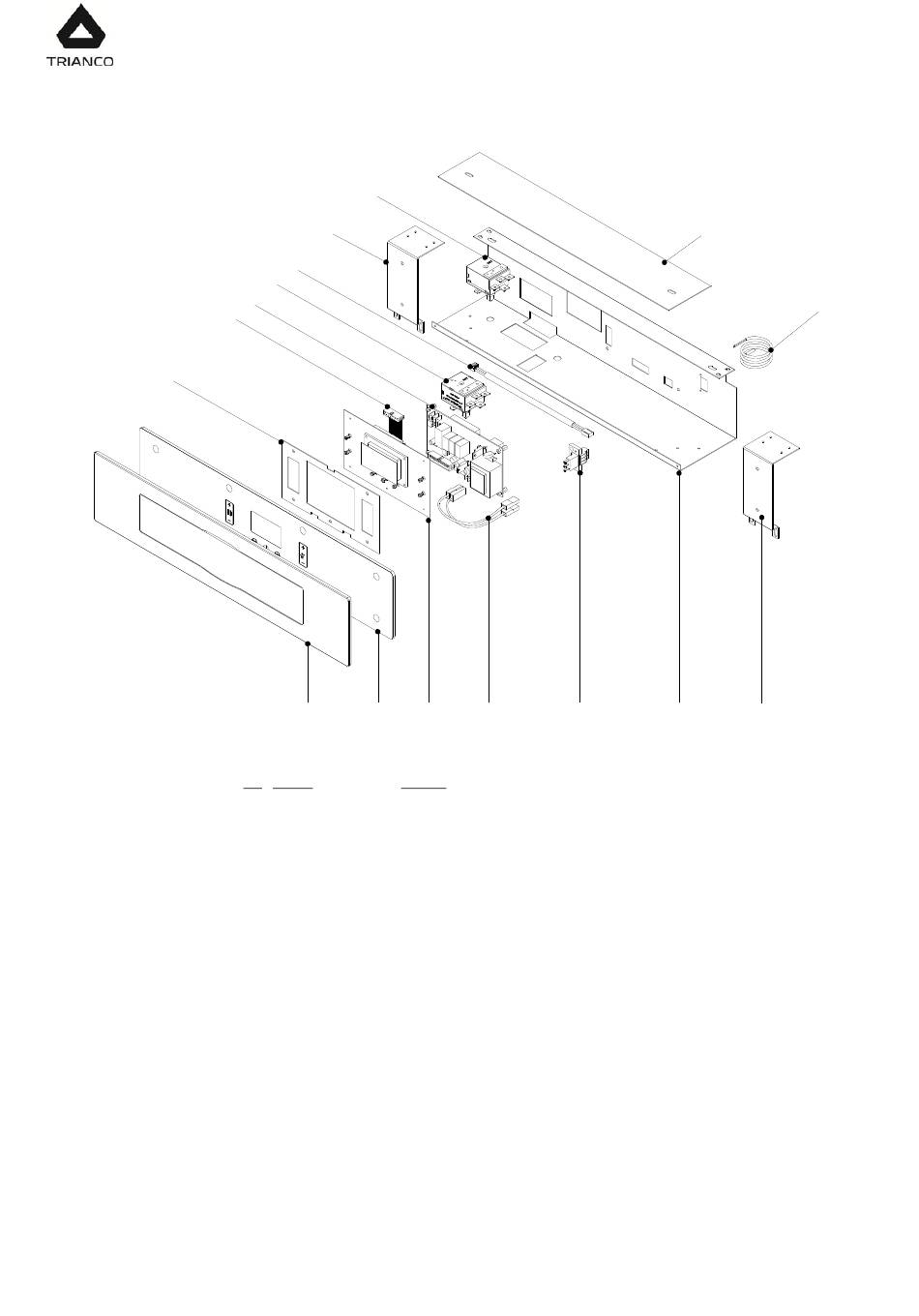

Electrical main board
13
14
15
7
10
11
12
1 2
Nº Code Name
1 CELC000294 Control panel embellisher
2 COTR000046 Main board glass
CELC000360 Display card
3
4 CMAZ000128 Cable harness
5 CELC000036 Weidmuller strip 3 poles
6 SEPO001947 Drawer
SEPO002249 Drawer W
7 SEPO001325 Panel fastening
SEPO002247 Panel fastening W
8 CELC000234 Temperature Evolution sensor 0,90 mts.
9 SEPO001326 Drawer cover
SEPO002248 Drawer cover W
10 CELC000255 Pressure sensor cable
11 CELC000022 Safety thermostat 110º 1,5m
12 CELC000358 Power supply card
13 CELC000298 Electronic cards cable
14 SCHA008320 Display suport
15 CELC000022 Fumes thermostat
3 4 5
9
8
6
7
page -45
