24.4.- Primary air adjustment

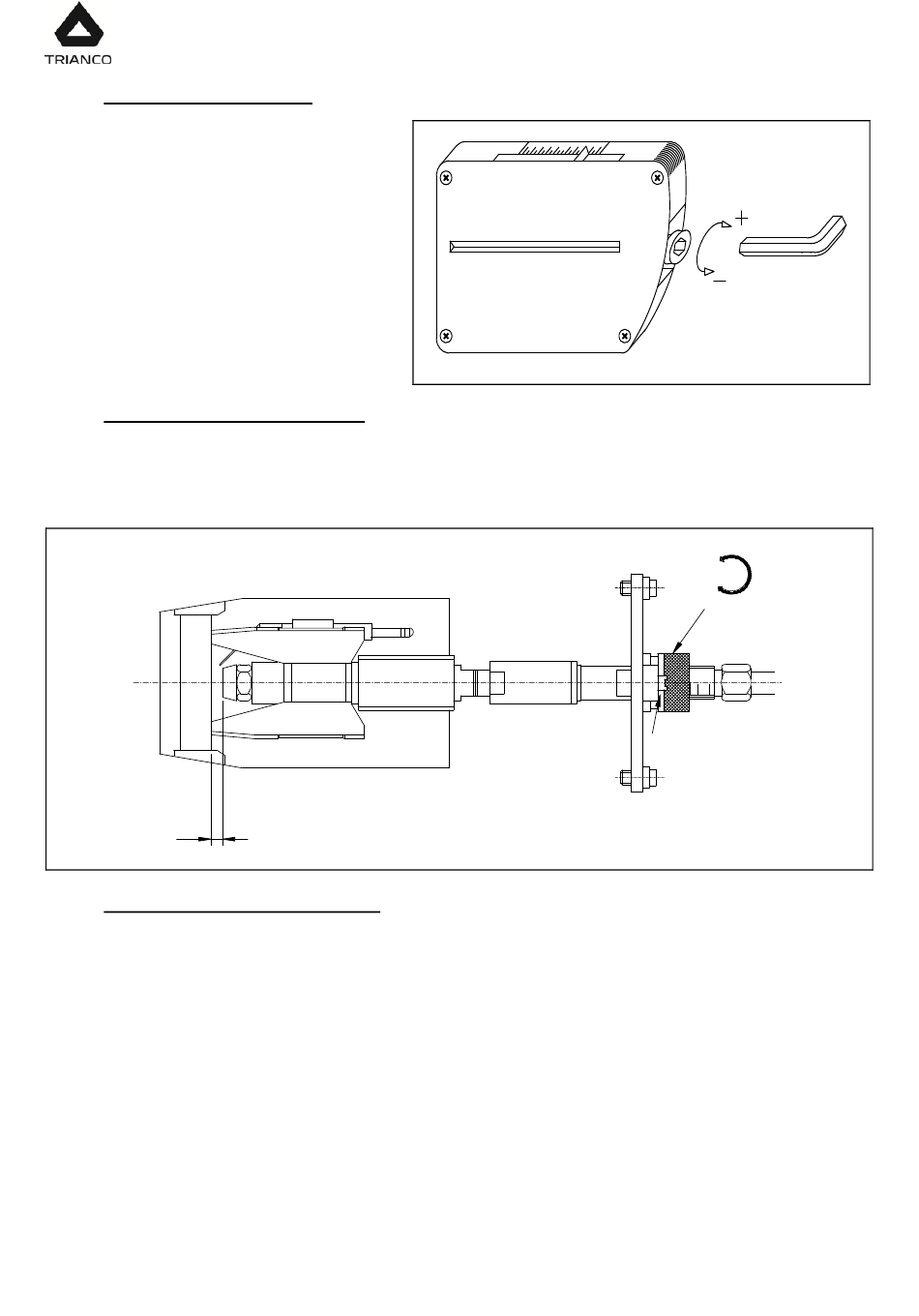

To adjust the primary combustion air,
turn the screw using a 6 mm. Allen
key, as shown in the diagram. Turn it
clockwise to increase the airflow,
and anticlockwise to decrease it.

24.5.- Combustion line adjustment

To adjust the combustion line, loosen the combustion line blocking screw "BL". Turn the line
regulator "RL" clockwise to increase the airflow and anticlockwise to decrease it. After
adjustment, tighten the combustion line blocking screw "BL".
3 mm

24.6.- Correct position of electrodes

To ensure correct ignition of the "Domestic" burner, the measurements shown in the diagram
must be observed. Also ensure the electrode fixing screws have been screwed in place
before replacing the flame tube.
