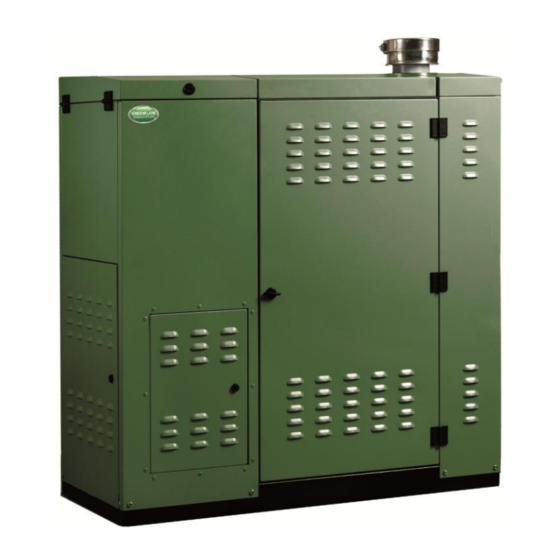

Greenflame Slim Wood Pellet Boiler 18kW
Greenflame Slim Wood Pellet Boiler 18kW
Internal & External
Installation, Operation and Servicing Instructions
PLEASE NOTE:
This product MUST be commissioned by a T R Engineering Ltd approved engineer.
INSTALLER
Have you been trained by T R Engineering Ltd to commission this appliance?
If you intend to commission and do not have a T R Engineering Ltd Cert No. Call now to
arrange training on 0114 257 2300
Please read these instructions carefully before installing and operating this appliance.
TO BE RETAINED BY THE HOUSEHOLDER
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trianco Greenflame 18kW
Summary of Contents for Trianco Greenflame 18kW
- Page 1 Greenflame Slim Wood Pellet Boiler 18kW Greenflame Slim Wood Pellet Boiler 18kW Internal & External Installation, Operation and Servicing Instructions PLEASE NOTE: This product MUST be commissioned by a T R Engineering Ltd approved engineer. INSTALLER Have you been trained by T R Engineering Ltd to commission this appliance? If you intend to commission and do not have a T R Engineering Ltd Cert No.
-
Page 2: Table Of Contents
6.8 Water Connections 3.1 How to Report a Fault 7. Control System 19-23 3.2 Technical Assistance 7.1 System Menu 4. How your Greenflame 18kW Boiler Operates 6-10 7.1.1 Auger On Menu 4.1 OFF Mode 7.1.2 Combustion Fan Menu 4.2 Check-Up 7.1.3 Exhaust Fan Menu... -
Page 3: Introduction
Tel: 0114 257 2300 from any civil or criminal responsibility. Fax: 0114 257 1419 E-mail: info@trianco.co.uk Adhesive sealants and paints used in the manufacture of the Web: www.trianco.co.uk product are cured and present no known hazards when used in the... -
Page 4: Operating Warnings
Greenflame Slim Wood Pellet Boiler 18kW manner for which they were intended. The appliance contains no 2.3 Guarantee/Warranty Information asbestos. T R Engineering Ltd offers the following warranties on this appliance: 2.2 Operating Warnings Leaks in the heat exchanger – 5 years Shut the appliance down in the event of breakdown or bad running. -
Page 5: Clean Air Act 1993
Greenflame Slim Wood Pellet Boiler 18kW Claims under the Guarantee containers in the main combustion chamber and lower ash chamber. Explain how to remove the burner grate and clear the air holes to ensure good combustion. Explain the various error codes that may appear and provide The request for action under the guarantee must be addressed to instruction on how to manage and clear messages. -
Page 6: How Your Greenflame 18Kw Boiler Operates
If the ambient thermostat or ambient thermostat HV says ON The Greenflame 18kW user interface has been designed to allow the (closes the contact) and the system is in OFF mode (if the user to carry out the basic operational and maintenance functions... -
Page 7: Pre-Heating Phase
Greenflame Slim Wood Pellet Boiler 18kW The Ignition phase is divided into four phases each with a Display Ignition programmable duration: Combustion Fan Exhaust temperature < Thermostat TH04 UC00 Fixed Ignition Speed 4.3.1 Pre-Heating Phase Exhaust temperature > Thermostat TH04 The aim of the phase is to bring the heating resistance to the right UC01 Variable Ignition Speed... -
Page 8: Stabilisation
Greenflame Slim Wood Pellet Boiler 18kW Case 3 4.5 Recover Ignition In every Ignition phase if P27 = 1 The system goes into recover ignition in two different conditions. The photo probe reads a light over value L01. The system goes into Stabilisation. -
Page 9: Restart In Extinguishing
Greenflame Slim Wood Pellet Boiler 18kW Case 1: A05 = 1 Automatic Combustion 4.5.2 Restart in Extinguishing The system automatically calculates the combustion power value according to water temperature with a temperature step of D08/6°C During the Extinguishing mode press the ON/OFF button to restart and it sets this until Power 1. -
Page 10: Standby > Extinguishing
Greenflame Slim Wood Pellet Boiler 18kW If the water temperature increases over thermostat TH40 Water 4.8.2 Standby - Extinguishing Alarm then an acoustic alarm starts. End of Safety Mode: If timer T15 is not expired Setting the enable parameters if: ... -
Page 11: Considerations For Installation
Service Clearances The minimum service clearances around the appliance are as The Greenflame 18kW slim has been recommended a suitable for follows: use in smoke control areas when burning ENplus-A1 wood pellets. -
Page 12: Connection Of The Flue
Greenflame Slim Wood Pellet Boiler 18kW fact, along with thermal depression caused by the difference in 5.4 Connection of the Flue temperature inside and outside of the chimney, there is another type of depression or over-pressure; dynamic pressure caused by The proper draught conditions in the flue are critical for the efficient the wind. -
Page 13: Unpacking
Base 6.2 Unpacking BACK 60mm The Greenflame 18kW slim pellet boiler will come packaged on a single pallet. The flue will be packaged separately. The materials which make up the packaging are 100% recyclable. 40mm Their storage or recycling is therefore the responsibility of the final 130mm user, in compliance with Local Regulations. -
Page 14: Boiler Control Panel Schematic
Greenflame Slim Wood Pellet Boiler 18kW 6.5 Boiler Control Panel Schematic Boiler Exhaust Combustion Cleaning High Voltage Ambient Thermostat LINE (230VAC/50Hz) INAT3 OUT 1 OUT 2 OUT 3 Auger Safety Pressur Switch Pellet Sensor Safety Thermostat TH1 Ignitor +12V Ambient TH P 11 N 12 UPS Switch... -
Page 15: Lambda Control Panel Schematic
Greenflame Slim Wood Pellet Boiler 18kW 6.6 Lambda Control Panel Schematic Mains 6 5 4 3 2 1 RS485 To the Control board 29 30 31 32 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Lambda Sensor Shield to the pin 20 or 32 (GND) Connection... -
Page 16: Auger Set-Up (Optional)
Greenflame Slim Wood Pellet Boiler 18kW 6.7 Auger Set-Up (Optional) Blue Relay/Contactor Brown Brown Motor Supply (MCB Sized to Suit Motor) Blue Configure Controller to Operate Motor In System Menu > Default Settings > set P50 = 2 to activate the Loading Motor Function. In System Menu >... -
Page 17: Vacuum System Set-Up (Optional)
Greenflame Slim Wood Pellet Boiler 18kW Feeder current (mA) 6.8 Vacuum System Set-Up (Optional) Icon “(“ (if the night mode is active) 6.8.1 Description Alarm Feeder Feeder additional By pressing the MENU button the sub-menu is entered or the Top sensor selected option is activated. -
Page 18: Technical Data
Greenflame Slim Wood Pellet Boiler 18kW Low Current Time 6.8.6 Assembly This should be set at 4s so when the mA value drops below the threshold for 4 seconds the vacuum stops. NOTE: Installation should be performed by a fully qualified engineer. DO NOT install the unit with the power on (make sure that the plug is disconnected from the mains supply). -
Page 19: Control System
Greenflame Slim Wood Pellet Boiler 18kW should be piped to drain to prevent injury to the user or service FUNCTION DESCRIPTION technicians if it is activated. All unused connections should be sealed Igniter LED On: Igniter On with blanking plugs. A non-return valve should be fitted to prevent Auger LED On: Auger is On back siphonage. -
Page 20: Combustion Fan Menu
Greenflame Slim Wood Pellet Boiler 18kW Power 7 Min Speed Lambda Regulator UA10 Modulation Power UA40 Modulation Power Min Speed Lambda Regulator Fix Ignition Power Min Speed Vacuum Regulator Power 1 Max Speed Lambda Regulator UA41 Variable Ignition Power Min Speed Vacuum Regulator UA42 Power 2 Max Speed Lambda Regulator Stabilisation Power Min Speed Vacuum Regulator... -
Page 21: Timer Menu
Greenflame Slim Wood Pellet Boiler 18kW The maximum value that the exhaust sensor can read is 900°C. So if Combustion fan speed in Check-Up UC22 you set 901°C for one thermostat automatically it will be disabled UC23 Combustion fan speed in Final cleaning because the exhaust temperature will never reach this value. -
Page 22: Temperature Delta
Greenflame Slim Wood Pellet Boiler 18kW Number of Check-Up for burner cleaning Exhaust fan step regulation 0÷100 UA84 Number of Check-Up for boiler cleaning Regulator period 0÷100 Number of Check-Up of De-Ash cleaning First regulation waiting time 0÷100 Delay before de-pressure alarm 7.1.8 Temperature Delta 7.2 Lambda Menu This menu allows you to regulate the temperature delta and some... -
Page 23: Counters
Greenflame Slim Wood Pellet Boiler 18kW Water pressure high Er10 7.3.1 Counters Real time clock error Er11 Ignition failed Er12 This menu has different submenus which indicate different counters Error activation pressure switch (only with the Er14 as indicated in the following below. exhaust fan ON) Lack of voltage Er15... -
Page 24: Boiler Operation & Maintenance
Always allow to cool down before opening the combustion chamber 9. Boiler Operation & Maintenance door. The Greenflame 18kW slim has been developed to ensure that the user is able to carry out the most basic functions in a safe and convenient manner. Once the installation has been successfully... -
Page 25: Filling The Hopper With Fuel
Always supervise children when the hopper is open in case foreign material is placed into the hopper or children climb into the hopper. 10. Technical Data Technical Data Greenflame 18kW Slim Nominal Output 4.6-18 Nominal Heat Input Kg/hr 1.1-4.0 Efficiency Nominal output (EN 303-5) 90.7... -
Page 26: Maintenance Schedule
Greenflame Slim Wood Pellet Boiler 18kW Clean down boiler surfaces when emptying main ash container. 11. Maintenance Schedule Remove and empty the secondary ash container every 2 weeks or more frequently if required. Ensure that the secondary ash Ensure that your Greenflame wood pellet boiler appliance is at its pan door is fully secured and air tight. -
Page 27: Service Log
Greenflame Slim Wood Pellet Boiler 18kW 13. Service Log Date Service Provided Service Engineer Date Service Provided Service Engineer Date Service Provided Service Engineer Date Service Provided Service Engineer Date Service Provided Service Engineer Date Service Provided Service Engineer... - Page 28 Unit 7, Newton Chambers Way Chapeltown, Sheffield, S35 2PH Telephone: +44 (0)114 257 2300 Fax: +44 (0)114 257 1419 Email: info@trianco.co.uk Web: www.trianco.co.uk T R Engineering Limited is a company registered in England and Wales Registration no. 7321802 The Heating Creators Copyright of all contents of this leaflet is vested in T R Engineering Limited.
