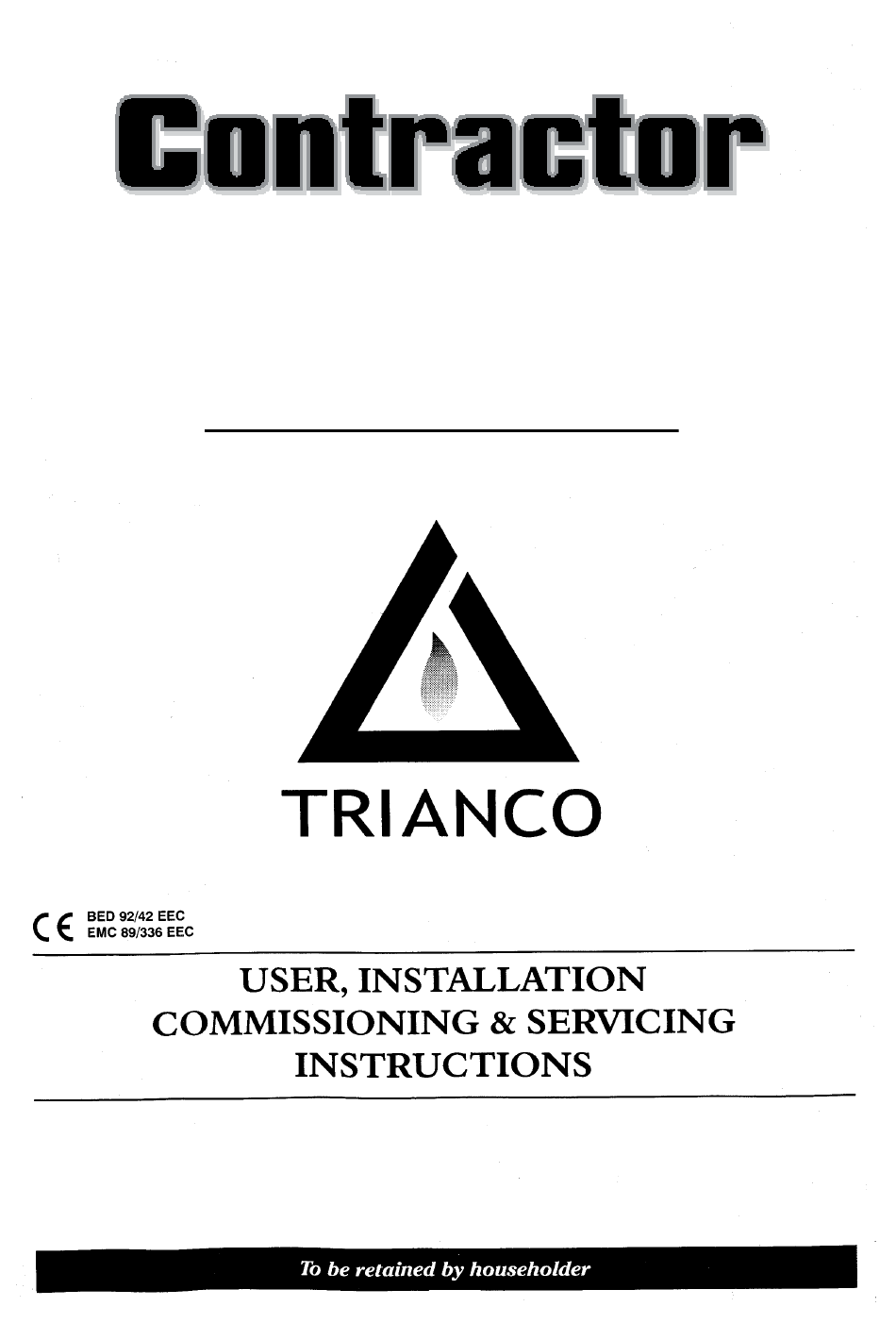

- Page 1 H.E. 50/90 EXTERNAL HE. 100/125 EXTERNAL OIL-FIRED CENTRAL HEATING BOILER...
-
Page 3: Table Of Contents
CONTENTS PAGE NUMBER 1. USER INSTRUCTIONS Introduction How to use the boiler After-sales service information 2. INTRODUCTION TO INSTALLATION 3. TECHNICAL INFORMATION Technical specifications 4. INSTALLATION Regulations / Health & Safety Siting System design Heating & hot water systems Electrical supply Wiring diagram Condensate drain connections 5. -
Page 4: User Instructions
1. USER INSTRUCTIONS Please note, to assist Trianco in improving customer service, BOILER CONTROL THERMOSTAT it is important that the guarantee/registration card is returned. The boiler control thermostat allows you to select the temperature of the water leaving the boiler. It is calibrated... - Page 5 SYSTEM CONTROLS ROOM THERMOSTAT The room thermostat should not be positioned near a source SIMPLE FAULT-FINDING of heat, such as a radiator, or be exposed to direct sunlight, as this will cause the heating to switch off before the room is If the boiler fails to start for no apparent reason, carry out the up to the correct required temperature.
-
Page 7: Introduction
The Contractor H.E. External boiler is supplied with the burner INSTALLATION INSTRUCTIONS set for 28 sec. Kerosene Class C2 to BS 2869 fuel to meet the Building Regulation requirements for low-level flue discharge. 2. INTRODUCTION FLUSHING AND WATER TREATMENT The Contractor H.E. Extenal boiler has been designed to conform to European Directive/Standards BED 92/42 EEC The performance of the appliance could be impaired by system LVD 73/23/EEC EMC 89/336/EEC. -
Page 8: Technical Information
3. TECHNICAL INFORMATION FIG. 3 OUTLINE DIMENSIONS View of rear of boiler showing boiler connections. Connections can be made on left or right side of boiler. FIG. 4... -
Page 9: Technical Specifications
TECHNICAL SPECIFICATION 50/90 100/125 WEIGHT 140kg 170kg WATER CONTENT 25 litres 32 litres FLOW CONNECTIONS 1” BSP 1¼” BSP RETURN CONNECTION 22mm Compression MAX OPERATING PRESSURE 3 bar (43.5 psi) TEST PRESSURE 4.5 bar (65.3 psi) STARTING CURRENT 3.5 amp RUNNING CURRENT 0.77 amp CONTROL THERMOSTAT... -
Page 10: Installation
4. INSTALLATION REGULATIONS Clearance and Service Access Installation of the boiler must comply with the following When siting the boiler, ensure adequate clearance is allowed for British Standards and Regulations: making water and flue connections. As the boiler can be fully serviced from the front, there is no need for headroom allowance. -
Page 11: Electrical Supply
ELECTRICAL SUPPLY 230V single-phase 50Hz (fused 5 amp) Terminal connections are also provided in the control box for the ancillary controls. Note: this appliance must be earthed and the electrical supply cable must be of a greater length than the It is strongly recommended that an RCD is fitted in the boiler current-carrying conductor cables (i.e. -
Page 12: Condensate Drain Connections
CONDENSATE DRAIN CONNECTIONS This process will also leave water inside the ‘U’ section of the condensate pipework, creating a seal to stop the escape of flue gases. The condensate pipe can be run to either the left or the right side of the boiler and for ease of installation should be fitted Failure to carry out this procedure will result in damage to before the boiler is positioned. -
Page 13: Oil Supply
1.8 metres from the top of the tank. Trianco makes no guarantee as to the satisfactory operation of the boiler using fuels other than that which is stated Cladding must extend at least 300mm beyond the tank. - Page 14 Notes: OIL SUPPLY (cont.) The pump suction should not exceed 0.4bar, as dissolved Single-Pipe Oil Supply (Fig. 12) gas may be released from the oil, affecting combustion. Where the lowermost part of the tank is above the level of The return pipe must end at the same level as the suction the burner, a single-pipe gravity system can be used.
-
Page 15: Single Pipe Oil Supply
BOILER FIG. 12 – SINGLE-PIPE OIL SUPPLY BOILER FIG. 13 – TWO-PIPE OIL SUPPLY... - Page 16 The boiler should also be positions to avoid the products of combustion entering the building. A distance of at Trianco H.E. boilers operate at high efficiencies least 600mm must be allowed between the terminal and with low flue gas temperatures. The flue system...
-
Page 17: Assembly
FLUE ASSEMBLY Smear a thin bead of silicone sealant (supplied) around the The flue terminal pack (supplied) should contain the ‘o’-ring seal and slide the terminal into the elbow from the following items. Check all components are present before outside of the boiler casing, being careful to ensure that the fitting: ‘o’-ring remains in place. - Page 18 To maintain the boiler’s high thermal efficiency and ensure reliable operation, it should be serviced annually by a qualified and registered OFTEC engineer. Electrical work should be carried out by a qualified engineer. A CD/11 servicing and commissioning form should be completed and left with the appliance on-site.
- Page 19 FIG. 16 – BAFFLE ARRANGEMENTS IMPORTANT: FAILURE TO ENSURE THE CORRECT PLACEMENT OF BAFFLES WILL RESULT IN THE INCORRECT OPERATION OF THE BOILER, INVALIDATING THE APPLIANCE WARRANTY. 50/90 100/125 Condensate Unit & Trap The condensate unit and trap should be inspected as part of the annual service schedule.
-
Page 20: Burner Fault Finding
9. FAULT-FINDING BURNER FAULT-FINDING ELECTRICAL SAFETY - before making any electrical checks, switch off the mains supply to the boiler POSSIBLE CAUSE ACTION FAULT Control box locked out Press orange reset button on front of BURNER WILL NOT START burner. NB: ONLY TRY TWICE High limit stat tripped Press red reset button (under control panel) and check function of boiler stat... - Page 21 BURNER FAULT-FINDING (cont.) ELECTRICAL SAFETY - before making any electrical checks, switch off the mains supply to the boiler FAULT POSSIBLE CAUSE ACTION MORNING START LOCKOUT Faulty non-return valve or air leak in Replace non-return valve, cure leak two-pipe system Low voltage to appliance Check with local electricity board Combustion settings incorrect...
- Page 22 SPARES Item Description 50/90 100/125 Boiler Body 222421 223971 Right Side Panel Assembly 223496 223506 Left Side Panel Assembly 223495 223505 Top Panel 210952 221712 Front Door 223493 223503 Back Panel 223497 223507 Condensing Unit 223880 223880 Boiler Control Thermostat 206896 206896 High-Limit Thermostat...
- Page 24 TRIANCO HEATING PRODUCTS LTD Thorncliffe, Chapeltown Sheffield S35 2PH Tel: (0114) 257 2300 Fax: (0114) 257 1419 Fax: (0114) 257 1419 www.trianco.co.uk April 2007 Item No. 223839 Issue No. 1...
