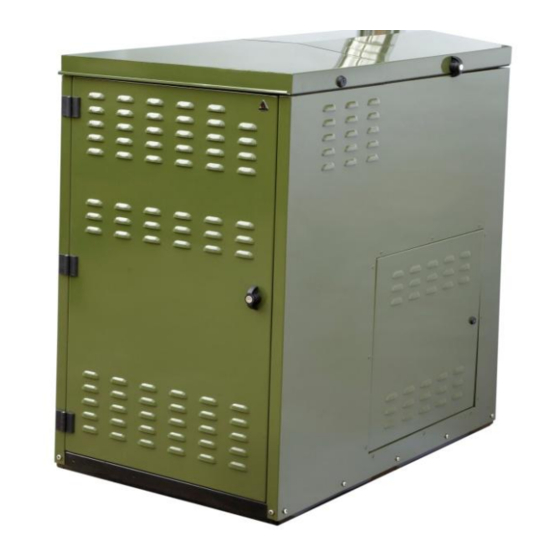

Greenflame Wood Pellet Boiler 28kW
Greenflame Indoor & Outdoor Wood Pellet
Boiler 28kW
Installation, Operation and Servicing Instructions
PLEASE NOTE:
This product MUST be commissioned by a T R Engineering Ltd representative.
Please contact T R Engineering Ltd to arrange the commission immediately after install.
Please read these instructions carefully before installing and operating this appliance.
TO BE RETAINED BY THE HOUSEHOLDER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Greenflame28kW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trianco Greenflame28kW

Summary of Contents for Trianco Greenflame28kW

  • Page 1 Greenflame Wood Pellet Boiler 28kW Greenflame Indoor & Outdoor Wood Pellet Boiler 28kW Installation, Operation and Servicing Instructions PLEASE NOTE: This product MUST be commissioned by a T R Engineering Ltd representative. Please contact T R Engineering Ltd to arrange the commission immediately after install. Please read these instructions carefully before installing and operating this appliance.
