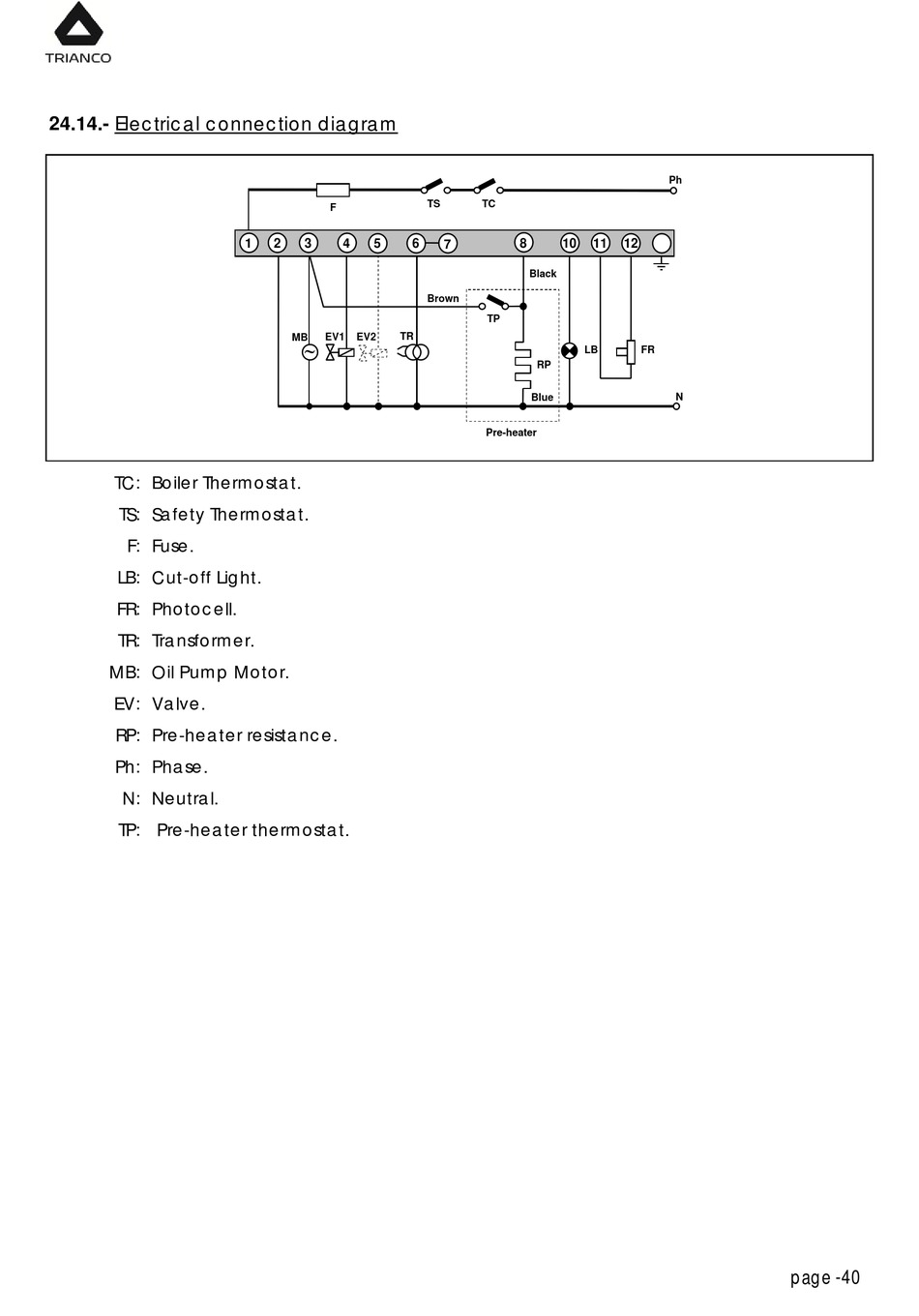

24.14.- Electrical connection diagram

TC: Boiler Thermostat.
TS: Safety Thermostat.
F: Fuse.
LB: Cut-off Light.
FR: Photocell.
TR: Transformer.
MB: Oil Pump Motor.
EV: Valve.
RP: Pre-heater resistance.
Ph: Phase.
N: Neutral.
TP: Pre-heater thermostat.
F
1
2
3
4
5
6
EV1
EV2
TR
MB
TS
TC
8
10
11
7
Black
Brown
TP
LB
RP
Blue
Pre-heater
Ph
12
FR
N
page -40
