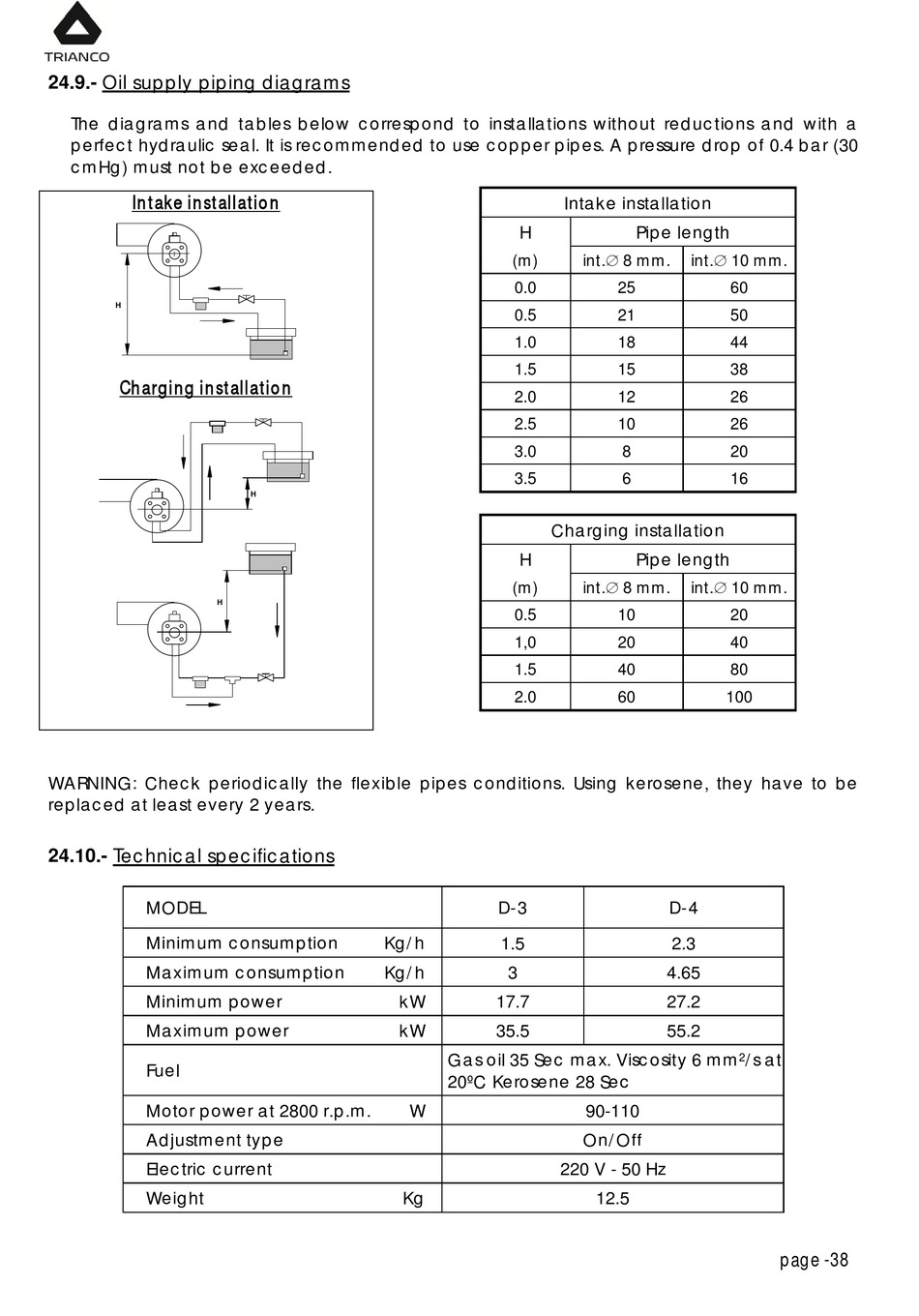

24.9.- Oil supply piping diagrams

The diagrams and tables below correspond to installations without reductions and with a
perfect hydraulic seal. It is recommended to use copper pipes. A pressure drop of 0.4 bar (30
cmHg) must not be exceeded.
Intake installation
H
Charging installation
H
WARNING: Check periodically the flexible pipes conditions. Using kerosene, they have to be
replaced at least every 2 years.

24.10.- Technical specifications

MODEL
Minimum consumption
Maximum consumption
Minimum power
Maximum power
Fuel
Motor power at 2800 r.p.m.
Adjustment type
Electric current
Weight
H
Kg/h
Kg/h
kW
kW
W
Kg
Intake installation
H
(m) int. 8 mm.
0.0 25
0.5 21
1.0 18
1.5 15
2.0 12
2.5 10
3.0
3.5
Charging installation
H
(m) int. 8 mm.
0.5 10
1,0 20
1.5 40
2.0 60
D-3
1.5
3
17.7
35.5
Gas oil 35 Sec max. Viscosity 6 mm
20ºC Kerosene 28 Sec
90-110
On/Off
220 V - 50 Hz
12.5
Pipe length
int. 10 mm.
60
50
44
38
26
26
8 20
6 16
Pipe length
int. 10 mm.
20
40
80
100
D-4
2.3
4.65
27.2
55.2
/s at
2
