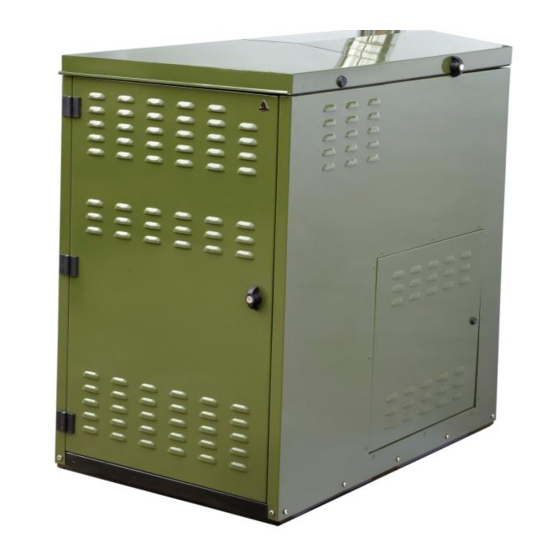

Greenflame Wood Pellet Boiler 15kW
Greenflame Indoor & Outdoor Wood
Pellet Boiler 15kW
Installation, Operation and Servicing Instructions
PLEASE NOTE:
This product MUST be commissioned by a Trianco representative.
Please contact Trianco to arrange the commission immediately after install.
Please read these instructions carefully before installing
and operating this appliance.
TO BE RETAINED BY THE HOUSEHOLDER
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trianco Greenflame
Summary of Contents for Trianco Greenflame
- Page 1 Installation, Operation and Servicing Instructions PLEASE NOTE: This product MUST be commissioned by a Trianco representative. Please contact Trianco to arrange the commission immediately after install. Please read these instructions carefully before installing and operating this appliance. TO BE RETAINED BY THE HOUSEHOLDER...
-
Page 2: Table Of Contents
Greenflame Wood Pellet Boiler 15kW Contents 1. Introduction 2. Warnings and Guarantee & Warranty Information 2.2 Safety Instructions 2.3 Operating Warnings 2.4 Guarantee & Warranty Information 2.5 Limitations 2.6 Exclusions 3. Pre-Installation Considerations 3.1 Pellets 3.2 Considerations for Installation 3.3 Operating Area 3.4 Connection to the Flue... -
Page 3: Introduction
Dear Customer, Install the boiler in accordance with the regulations in force We wish to thank you for choosing this Greenflame pellet in your local area, region and country. boiler product from T R Engineering Ltd. In order to get the best performance from your appliance we... -
Page 4: Operating Warnings
Greenflame Wood Pellet Boiler 15kW Ltd is absolved from any civil or criminal responsibility. repair is necessary, insist on the use of original spare parts. Use only the fuel recommended by T R Engineering Ltd (Enplus-A1) may be used with this appliance. -
Page 5: Exclusions
Greenflame Wood Pellet Boiler 15kW 2.6 Exclusions 3. Pre-Installation Considerations The warranty excludes all ancillary products associated with 3.1 Pellets the system (e.g. flue pipes, external circulation pumps, bulk hoppers and augers, plumbing and electrical system). The warranty does not cover Third Party damage to the product... -
Page 6: Considerations For Installation
Greenflame Wood Pellet Boiler 15kW therefore lead to the termination of the guarantee and of appliance is installed (fireplace, stove, etc.) which does not the manufacturer’s responsibility for the product. have its own independent air intake. Locating the appliance in a room with an explosive atmosphere, e.g. workshop or T R Engineering Ltd domestic pellet appliances run tool shed, is prohibited. -
Page 7: Operating Problems Caused Draught Defects In The Flue
Greenflame Wood Pellet Boiler 15kW All sections of the flue must be capable of inspection and IMPORTANT! removable to enable periodic internal cleaning. The operation of the pellet boiler is noticeable sensitive to Position the appliance bearing in mind all the instructions the conformation and position of the flue which is adopted. -
Page 8: Installation And Assembly
Unpacking water. Use the template below for constructing the plinth and for The Greenflame 15kW pellet boiler will come packaged on a positioning the flow and return pipe work and electrical single pallet. The flue will be packaged separately. supply. -
Page 9: Electrical Connections
Greenflame Wood Pellet Boiler 15kW The Greenflame boiler must be supplied with a 230V 50Hz electrical supply via a two pole isolation switch rated for overvoltage category III and protected with a 6A circuit breaker. Also, the unit shall have a 30mA RCD installed into the mains supply. -
Page 10: Control Panel Schematic
Greenflame Wood Pellet Boiler 15kW 4.4 Boiler Control Panel Schematic Only authorised T R Engineering Ltd personnel may open the control board. Any tampering with the PCB will immediately invalidate the warranty. - Page 11 Greenflame Wood Pellet Boiler 15kW Greenflame Auto Fill Motor Set-Up for Long Straight Auger (Optional) Neutral Live Relay/Contactor Motor Supply (MCB Sized to Suit Motor) Configure Controller to Operate Motor In System Menu > Default Settings > set P50 = 2 to activate the Loading Motor Function.
-
Page 12: Water Connections
Greenflame Wood Pellet Boiler 15kW 4.5 Water Connections the boiler is fitted with a manual air vent for venting air from the boiler. The system must then be filled and the pump can The diagram below indicates the plumbing connections at be run continuously for a few hours to completely de-aerate the rear of the boiler. -
Page 13: Control System
Greenflame Wood Pellet Boiler 15kW ERRORS 5. Control System DESCRIPTION DISPLAY Error activation safety thermostat high voltage Er01 Error activation pressure switch (only with the Er14 exhaust fan on) Accidental extinguishing exhaust Er03 temperature Water over-temperature Er04 Exhaust over-temperature Er05 Encoder error. -
Page 14: Boiler Operation And Maintenance
Always use heat resistant gloves when handling the ash pan 6. Boiler Operation & Maintenance or cleaning the boiler. The Greenflame has been developed to ensure that the user is able to carry out the most basic functions in a safe and convenient manner. Once the installation has been... - Page 15 Greenflame Wood Pellet Boiler 15kW Remove the slider plate under grate before removing the ash pan. Remove any ash from pot using the tool provided. Remove the burner pot. Secondary ash pan area. Always replace the slider plate once the ash pan has been emptied.
-
Page 16: Boiler Handling
7. Boiler Handling One of the key features of the Greenflame 15 is its size and Carefully remove secondary ability to be transported to and located in confined spaces. -
Page 17: Technical Data
Greenflame Wood Pellet Boiler 15kW 8. Technical Data Technical Data Greenflame 15kW Nominal output 4.8 – 16.1 Nominal Fuel Input Kg/hr 1 – 3.5 Efficiency nominal output (EN 303-5) 90.7 Smoke temperature at Nominal power °C 130 – 150 Smoke temperature at reduced power °C... - Page 18 Greenflame Wood Pellet Boiler 15kW Flue height to be determined on site building regulations 920mm 600mm...
- Page 19 Greenflame Wood Pellet Boiler 15kW DATE SERVICE PROVIDED SERVICE ENGINEER DATE SERVICE PROVIDED SERVICE ENGINEER DATE SERVICE PROVIDED SERVICE ENGINEER DATE SERVICE PROVIDED SERVICE ENGINEER DATE SERVICE PROVIDED SERVICE ENGINEER DATE SERVICE PROVIDED SERVICE ENGINEER DATE SERVICE PROVIDED SERVICE ENGINEER...
-
Page 20: Maintenance Schedule
Greenflame Wood Pellet Boiler 15kW 10. Maintenance Schedule To ensure that your Greenflame wood pellet boiler appliance operates at its highest efficiency and trouble free operation it is essential that the following maintenance schedule is adhered to by a QUALIFIED SERVICE ENGINEER:- ... - Page 21 Greenflame Wood Pellet Boiler 15kW T R Engineering Ltd Unit 7 Newton Chambers Way Thorncliffe Industrial Estate Chapeltown Sheffield S35 2PH United Kingdom Tel: 0114 2572300 Fax: 0114 2571419 E-mail: info@trianco.co.uk Web: www.trianco.co.uk © TR Engineering Ltd Copyright in this brochure and the drawings and illustrations contained in it is vested in TR Engineering Ltd and neither the brochure nor any part thereof may be reproduced without prior written consent.
