Connecting The Pedal - Source Audio EQ2 Programmable EQ User Manual

External Control – Easily configure the EQ2 to work with a variety of expression pedals and
footswitches for flexible external control options
Full Frequency Range – Since the human ear can detect between 20Hz and 20kHz (20,000Hz), each
of the 10 bands can be set anywhere between 20Hz and 20kHz for ultimate sonic customization.

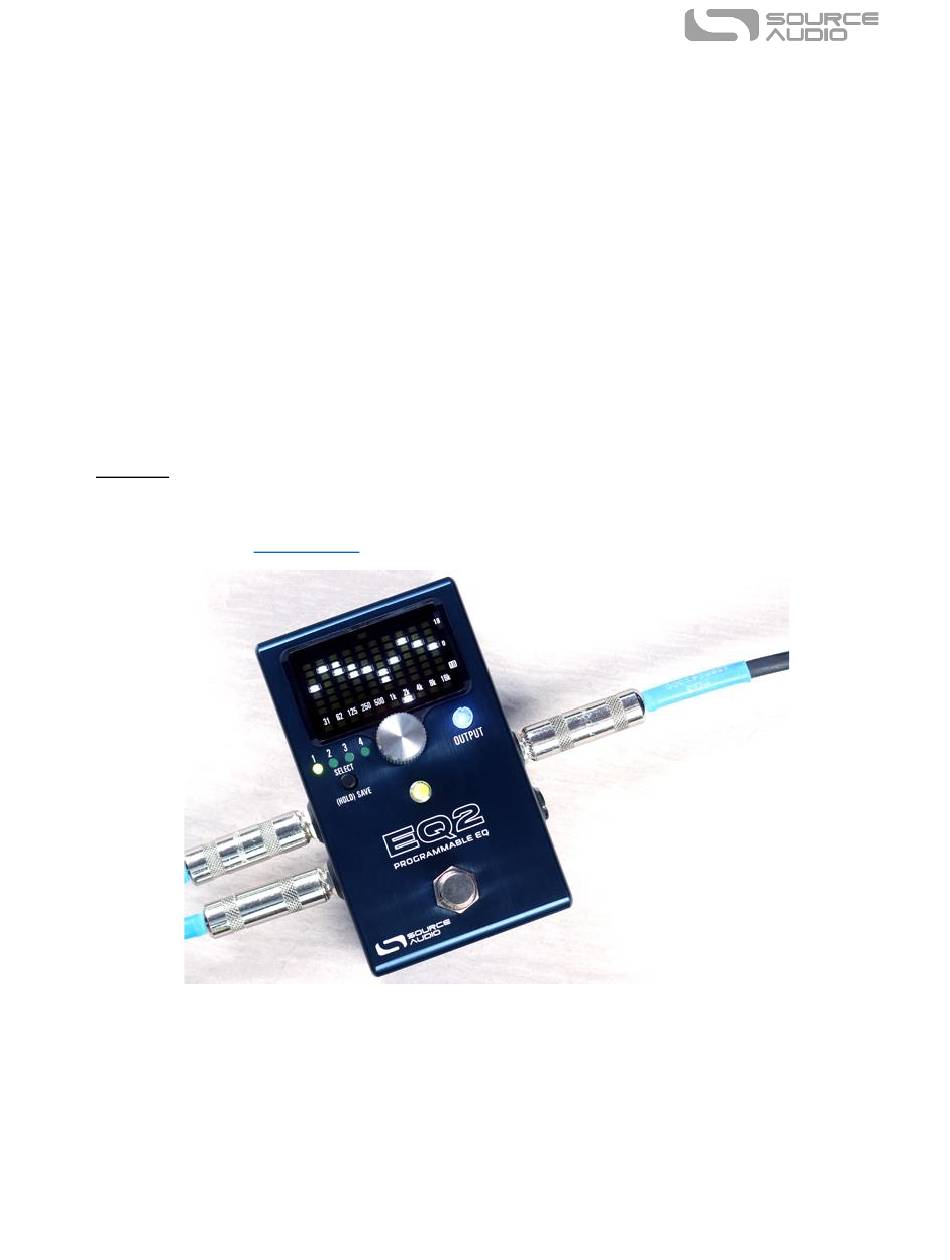

Connecting the Pedal

Power
To power the unit, connect the included 9V DC negative-tipped power supply to the jack labeled DC
9V on the back panel.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
A power supply with insufficient current levels may also cause noise or other unpredictable behavior.
rd
Please be very cautious when using 3 -party power supplies and refer to the power supply
requirements in the Specifications section of this guide.
SA270 EQ2 User Guide 4
