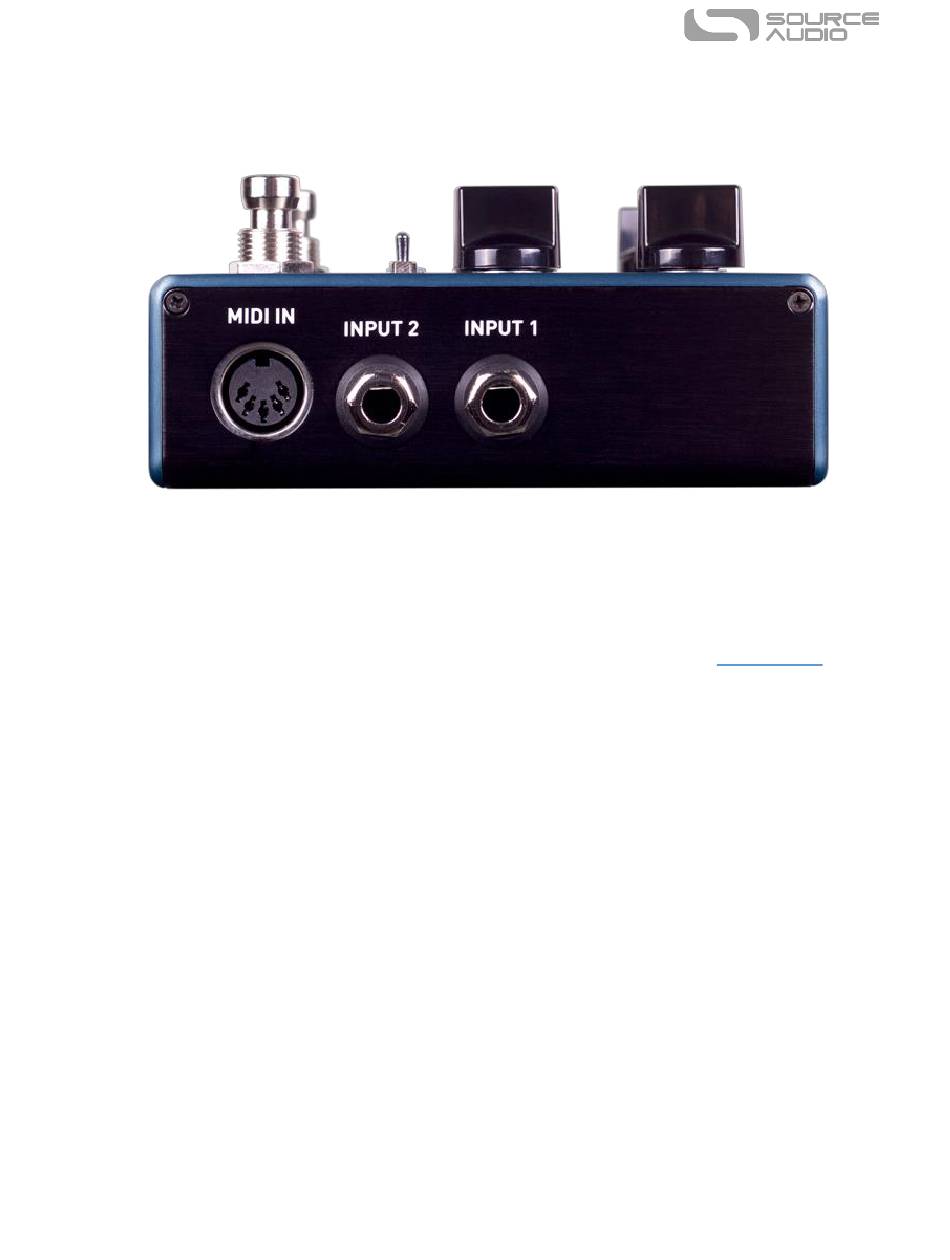

Input Side Connections
Input 1
I 1 is the primary input for guitar, bass, or other instruments. It can also accept line-level inputs
NPUT
and will work in your amp's effect loop. Connect it to your instrument or other audio source using a
mono (TS) 1/4" cable. Details about the allowed signal levels are available in the
section.
Input 2
I 2 is the secondary audio input for stereo sources, external effects loop input, or as the data
NPUT
connection to your mobile device when using the Neuro App.
•
Input 2 as an Audio Input:
other instruments. Connect your instrument (or the previous effect in the signal chain) using a
mono (TS) ¼" cable. The Collider will automatically configure itself for stereo audio input. Other
routing options are available using the Neuro App. For more information about stereo routing,
refer to the Stereo Operation
•
Input 2 as an External Loop Return:
O 2 is the loop send and I
UTPUT
external effects loop using a mono (TS) ¼" cable.
•
Input 2 as a Neuro App Data Input:
Neuro Mobile App. The Neuro App sends data to the pedal using your mobile device's
headphone jack. Connect it to your mobile device using the included stereo (TRS) 1/8" to 1/4"
cable. It can also accept daisy-chained Neuro data from another Neuro-compatible pedal in the
chain, provided that a TRS cable is used. The audio signal (if applicable) will be on the tip contact
of the plug, and the Neuro App data will be on the ring contact. This allows audio and Neuro
data to flow on the same cable.
SA263
The tip contact on I
NPUT
section.
If the Collider routing mode includes an external loop,
2 is the loop return. Connect I
NPUT
The ring contact on I
Collider Delay+Reverb Owner's Manual
2 acts as a secondary input for guitar, bass, or
2 to the output of the
NPUT
2 acts as a data connection for the
NPUT
