MIDI Thru
This is a standard 5-pin DIN connector that echoes MIDI messages from the MIDI I
them to other devices. The Collider does not generate any of its own MIDI data, but it will copy and
output any data it receives.

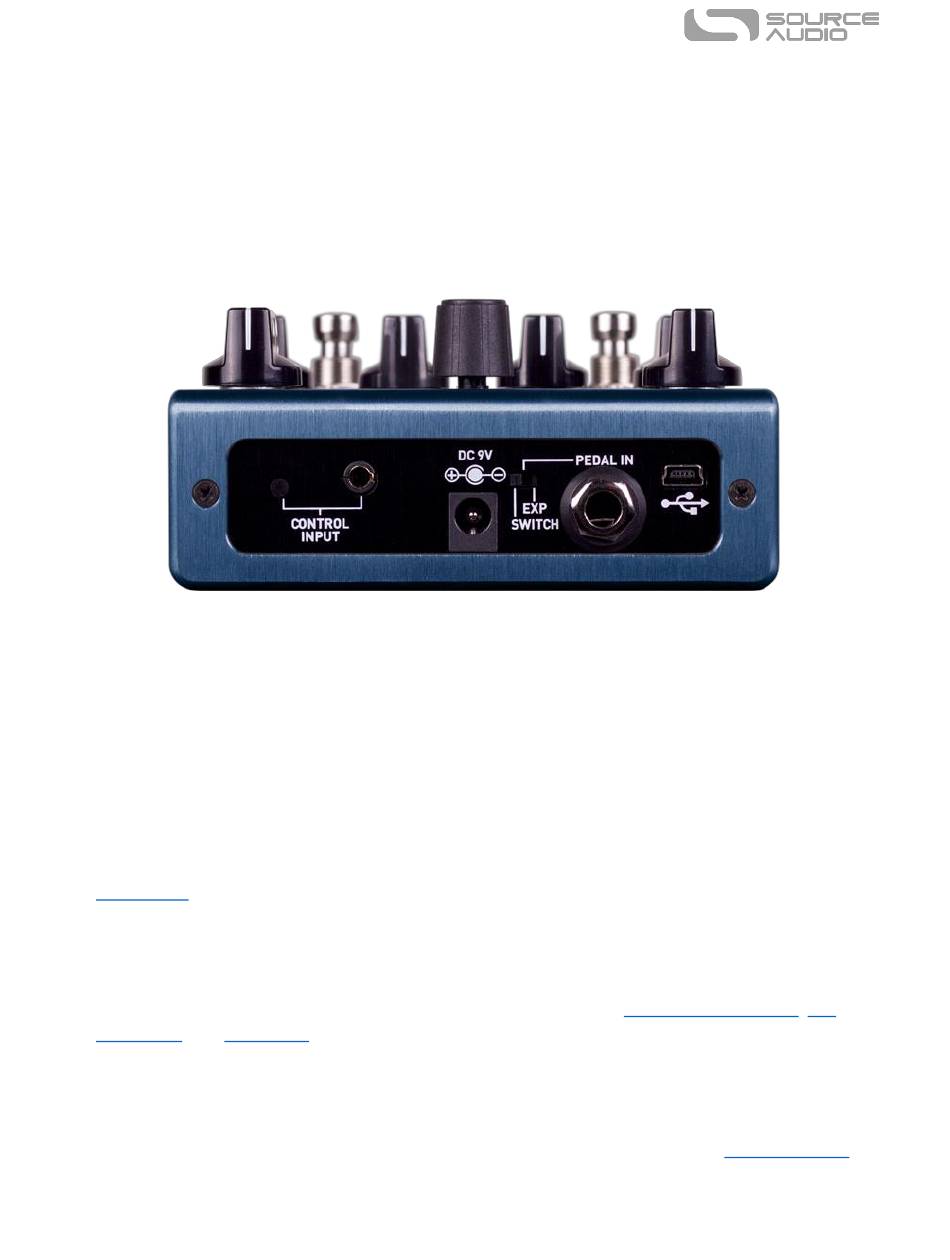

Power and Control Connections
DC 9V (Power)
Connect to the included 9 Volt DC power supply. If you would like to use a 3
power supply must be regulated at 9 Volts DC (direct current), able to source at least 300 mA
(milliamps) of current, and the plug should have a tip-negative, barrel-positive polarity.
USB
Connect to your computer (Mac or Windows) to the Collider's USB port (denoted by the icon) using a
standard mini USB cable. The Collider is a class compliant USB device, meaning that it does not
require any custom drivers. For more information about the Collider's USB capabilities, refer to the
USB Section of the User's Guide.
Control Input
The 3.5 mm C
ONTROL
Tempo Switch, Source Audio Dual Expression Pedal, Reflex Universal Expression Pedal, Neuro Hub,
and Hot Hand Motion Controller. For more information, refer to the
Hand Input, and Neuro Hub
Expression/Switch Pedal Input
The P I jack on the back panel connects to either an external passive expression pedal or
EDAL N
footswitch. The P
EDAL
used. Set to EXP for expression control or SWITCH for footswitch control. See the
section for details.
SA263
I port connects to external control devices such as the Source Audio Tap
NPUT
sections of the User's Guide.
I S allows the user to select which type of external controller is being
N WITCH
Collider Delay+Reverb Owner's Manual
jack and sends
NPUT
-party supply, the
rd
Expression Pedal Input,
External Control
Hot
