External Expression Pedal Control: Make simultaneous, on-the-fly changes of up to three
parameters with an external expression pedal.

Connecting the Pedal

Power
To power the unit, connect the included 9V DC negative-tipped power supply to the jack labeled DC
9V on the back panel. The Atlas needs at least 160mA of current to operate as intended.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
A power supply with insufficient current levels may also cause noise or other unpredictable behavior.
Please be very cautious when using 3
requirements in the
Guitar/Audio Connections
Using standard ¼" mono (TS) cables, connect your guitar, bass, or other instrument to the I
jack and your amp (or the next audio device in the signal chain) to the O
second amp, connect it to O

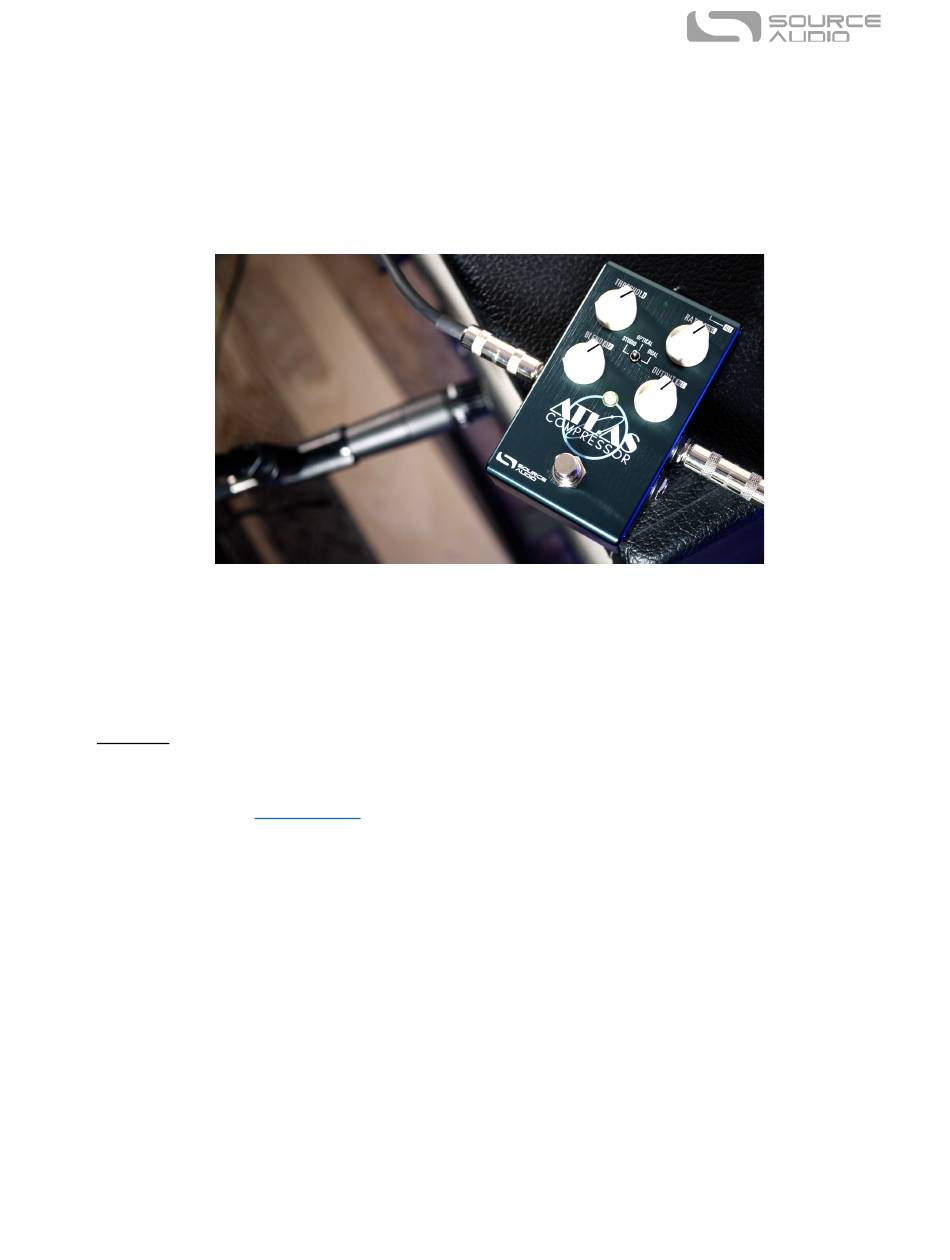

When the power and audio connections have been made, Atlas is ready for use.
SA252
rd -party power supplies and refer to the power supply
Specifications section of this guide.
2.
UTPUT
Atlas Compressor User Guide
NPUT
1 jack. If you have a
UTPUT
1
4
