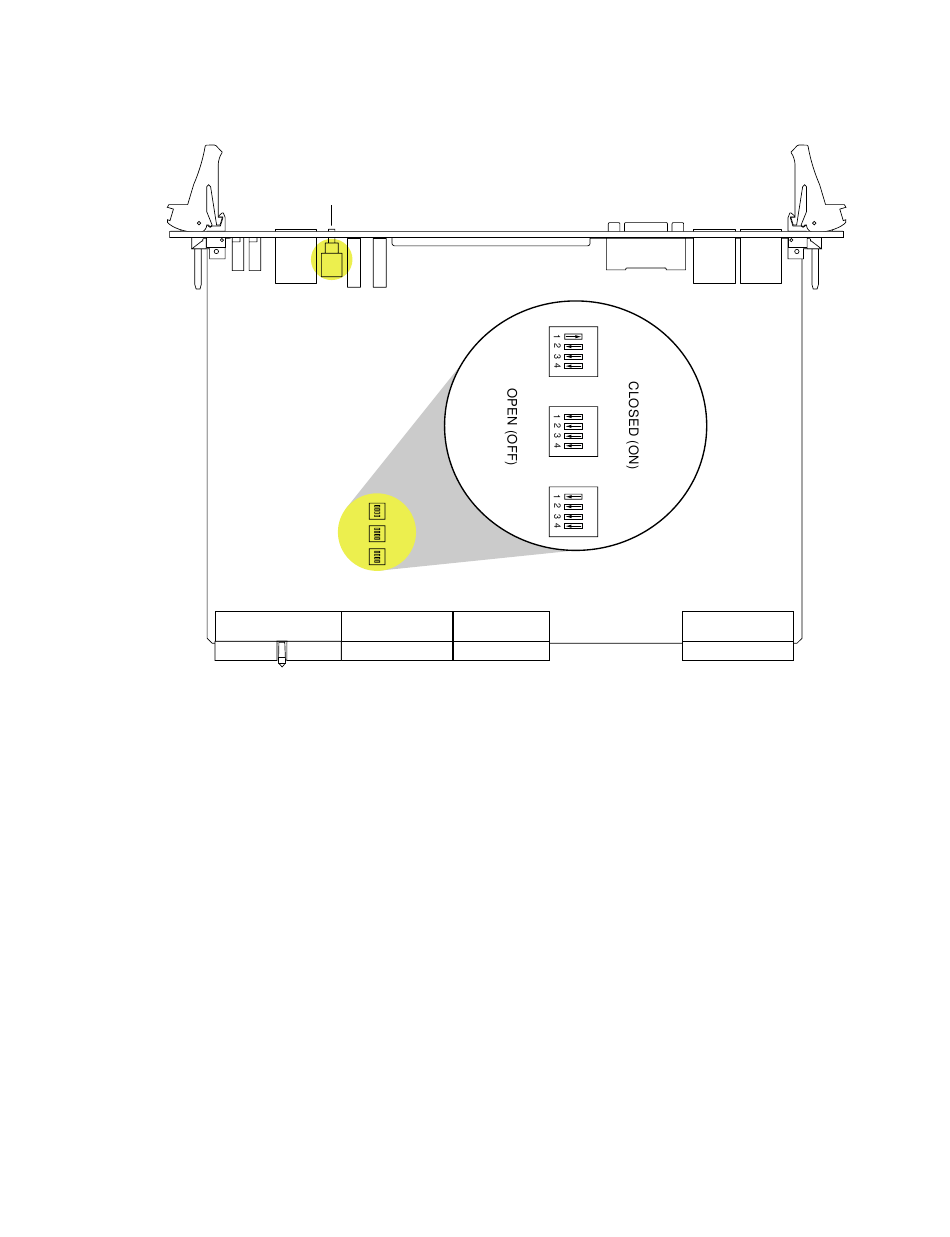

Default Switch Configuration
Switch Descriptions
The following topics list the switches in numerical order and provide a detailed description of
each switch.
SW1 (Reset)
SW1 is a push-button on the front of the ZT 5504. Pressing SW1 issues a hard reset. Reset is
discussed in more detail in
SW2-1, SW2-2 (Real-Time Clock Battery Backup)
Use these switch segments to battery back and clear the Real-Time Clock. When closed, SW2-
1 connects the Real-Time Clock to the on-board battery. Keep this switch in the closed position
for normal operation.
If the Real-Time Clock and CMOS contents need to be cleared, open SW2-1 and close SW2-2.
After two seconds, return SW2-2 to the open position and SW2-1 to the closed position.
Factory default is SW2-1 closed and SW2-2 open.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
SW1
SW2
SW3
SW4
Chapter 4.
3. Configuration
SW2
SW3
SW4
32
