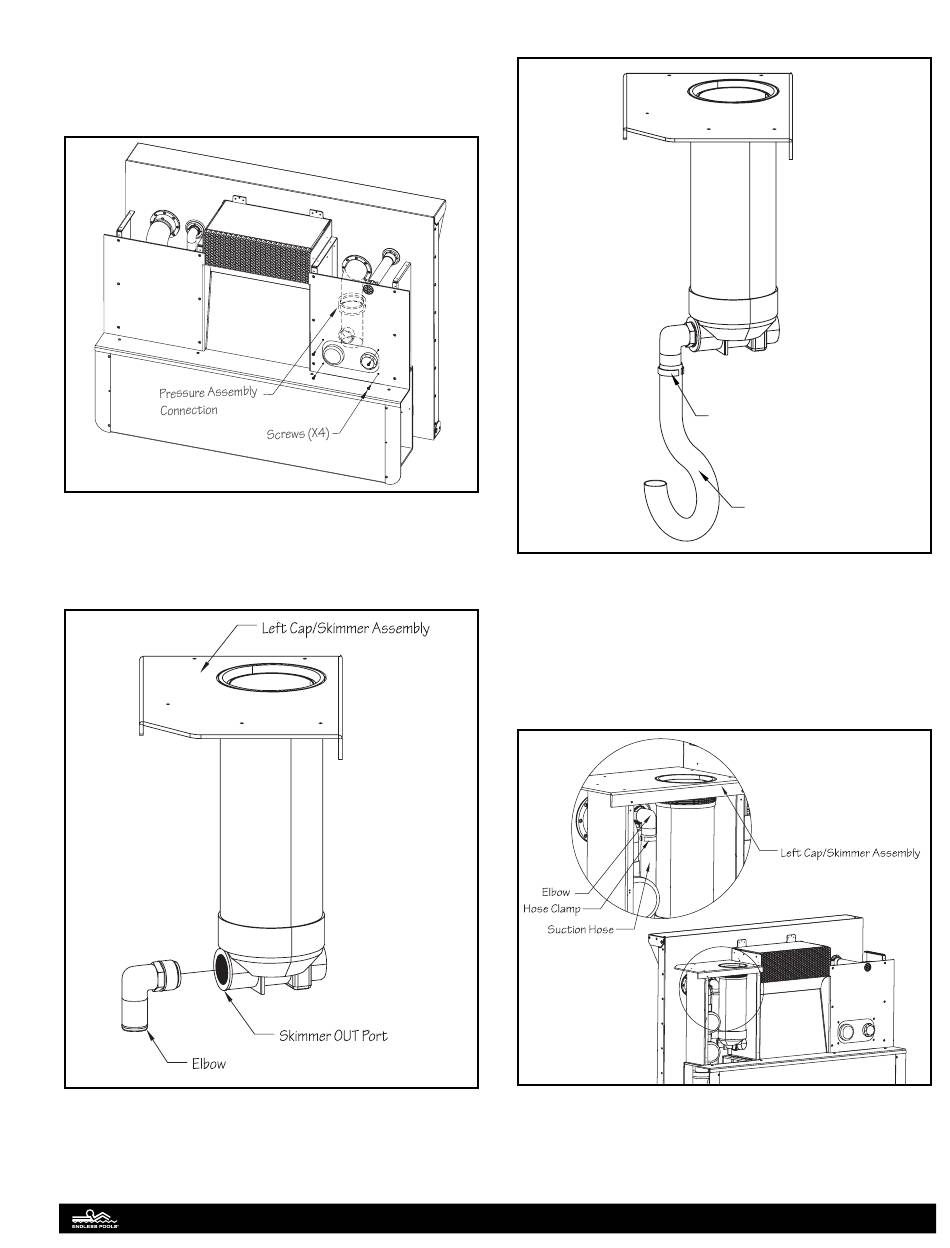

Reposition the propulsion system housing at the front of the
pool to align and attach the pressure assemblies. New holes will
need to be drilled to secure the escutcheon to the right side of the
propulsion system housing. Drill new holes into the escutcheon
using the (4) holes in the housing (around the escutcheon) as a
template. Reinstall the (4) screws. Fig. 55.4.
Fig. 55.4
Internal Skimmer Assembly
Attach the threaded elbow to the "OUT" port of the skimmer
assembly. Fig. 56.
Fig. 56
Attach the suction hose to the elbow and secure the hose with
the plastic hose clamp. Fig. 57.
Fig. 57
Attach the opposite end of the suction hose to the elbow that's
threaded into the water quality system suction thru-wall fitting.
Once the hose is attached, carefully lower and position the left
cap and skimmer assembly into place. Note: Although not re-
quired, the left face of the housing can be removed by removing
the (6) screws if necessary. Fig. 58.
Fig. 58
Hose Clamp
Suction Hose
