Plumbing Part 2

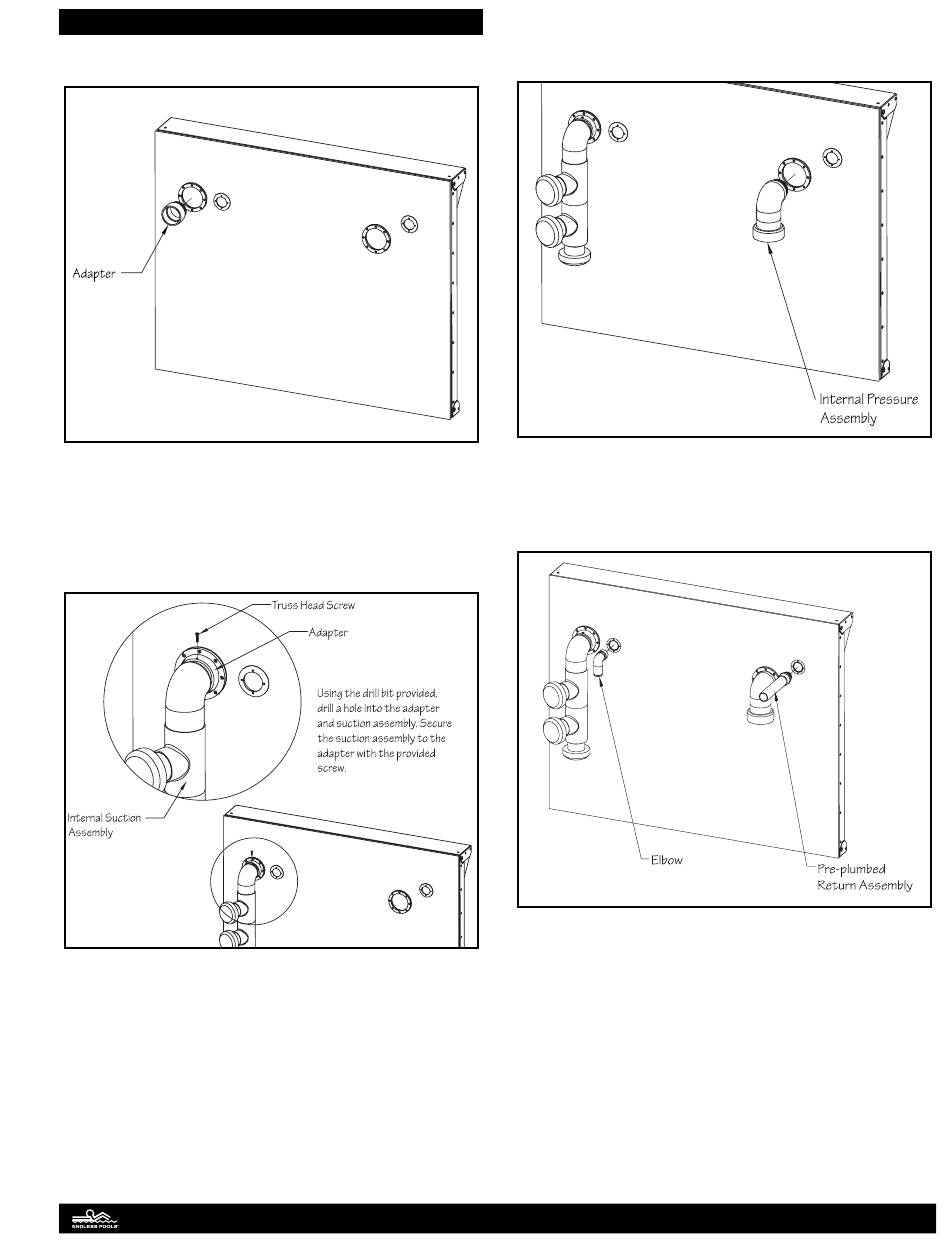

Attach the adapter to the suction thru-wall assembly. Fig. 51.
Fig. 51
Attach the internal suction assembly to the adapter. Using the
11/64" (4mm) drill bit, drill a hole into the adapter and suction
assembly. Secure the suction assembly to the adapter with the
¾" (19mm) truss head screw located in the adapter attachment
hardware bag. Fig. 52.
Fig. 52
Attach the internal pressure assembly to the pressure thru-wall
assembly. The assembly needs to be facing the floor of the pool
as shown. Fig. 53.
Fig. 53
Attach the elbow to the suction thru-wall fitting. The fitting
needs to be facing the floor of the pool as shown. Attach the pre-
plumbed return assembly to the return thru-wall fitting. Fig.54.
Fig. 54
