Foam Corners; Thru-Wall Connections Part 1 - Endless Pools Streamline Installation, Operations And User's Manual

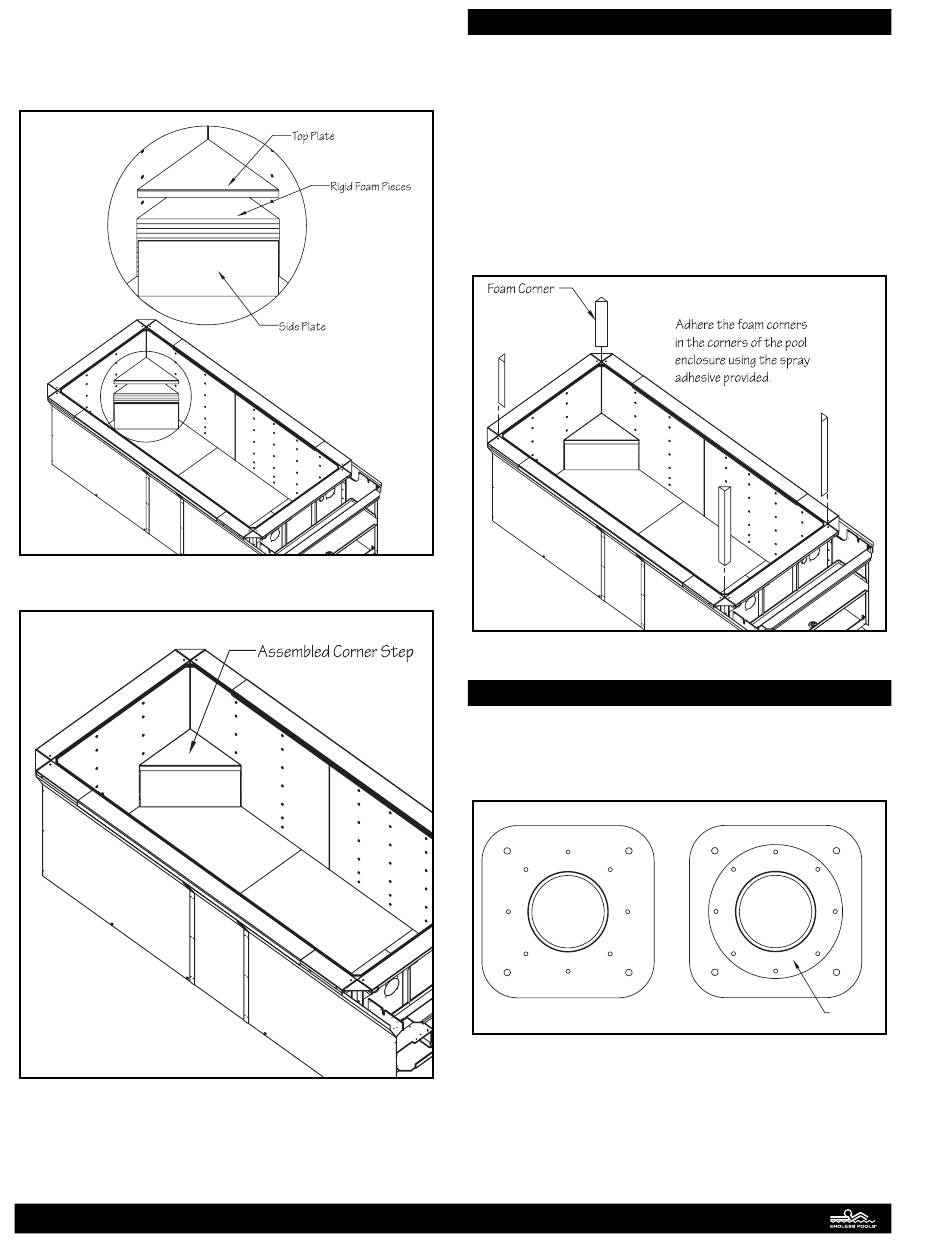

Position a side plate followed by a top plate over the foam pieces
to form a corner step. Fig. 26a. Repeat for the other rear corner.
No screws or adhesives are required for the corner step installa-
tion. The weight of the pool water will secure the corner steps in
place. Fig. 26b.
Fig. 26a
Fig. 26b
15

Foam Corners

Foam corners are installed in the front and rear corners of the
pool enclosure. The foam corner kit contains (4) foam corners
which are to be adhered in each corner of the pool enclosure
using the spray adhesive provided.
Starting at the rear of the pool, spray a thin bead of adhesive
in each corner. Position the short foam corners on top of each
corner step and adhere the corners in the rear corners of the pool
enclosure. At the front of the pool, spray a thin bead of adhe-
sive in each corner. Position the long foam corners on the plastic
flooring and adhere the corners in the front corners of the pool
enclosure. Fig. 27.
Fig. 27

Thru-wall Connections Part 1

There are two thru-wall fitting assemblies for the propulsion
system. These fittings are not interchangeable. The pressure
thru-wall assembly has a bump out on the face which MUST be
installed on the pressure side of the plumbing. Fig. 28.
Suction Thru-Wall Assembly
Fig. 28
Pressure Thru-Wall Assembly
Bump Out
