Plumbing Part 1 - Endless Pools Streamline Installation, Operations And User's Manual

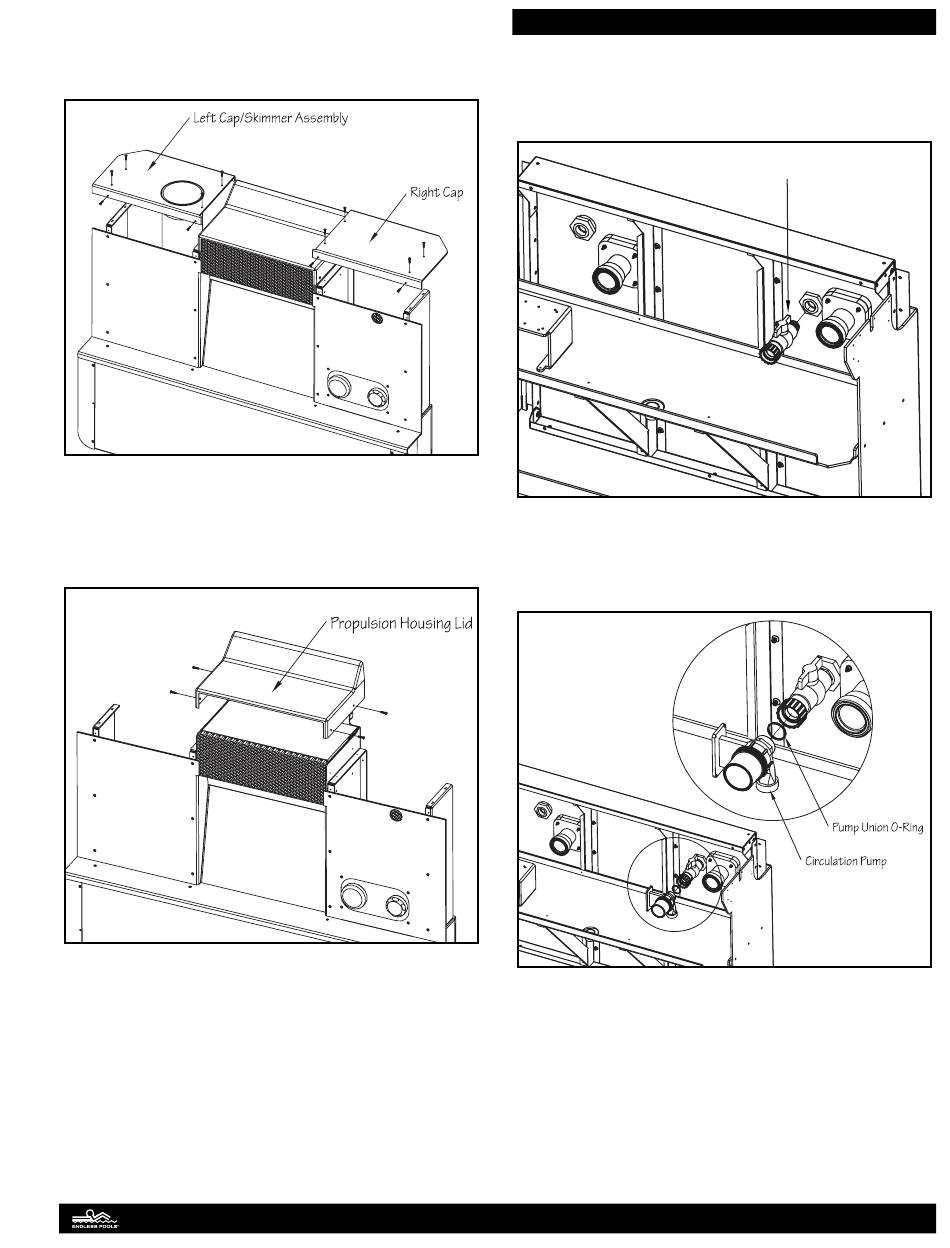

Remove the left cap/skimmer-filter assembly and right cap by
removing the screws of each acrylic component as shown. Fig. 36
Removing these components will allow you to safely rotate the
housing assembly so that it's parallel with the front wall.
Fig. 36
Remove the housing lid by removing the screws on each side of
the lid. Fig. 37. Continue filling the pool until the water level is
24" (61cm) deep. While the pool is filling, the external plumbing
can be assembled.
Fig. 37

Plumbing Part 1

Water Quality System Plumbing
Attach the pre-plumbed suction assembly to the suction th-
ru-wall fitting. Make sure to wrap Teflon tape around the threads
of the suction assembly before attaching. Fig. 38.
Fig. 38
Attach the circulation pump to the pre-plumbed suction assem-
bly. Make sure that the pump union o-ring is seated properly
prior to installing. Fig. 39.
Fig. 39
Pre-plumbed
Suction Assembly
18
