Racelogic Speed & Route Profiler Manual page 7

File Dropouts - contd
Insert curved line

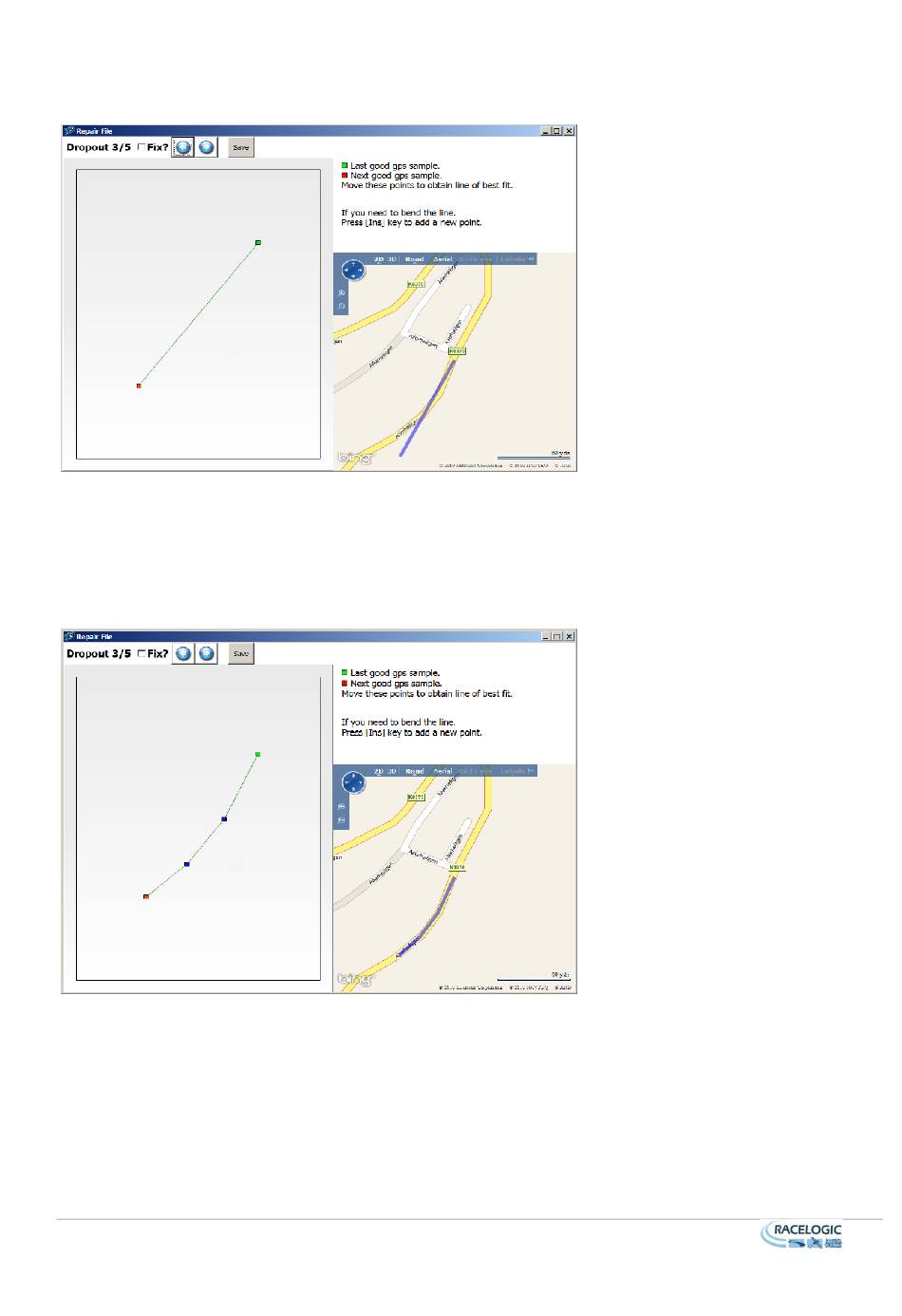

In certain cases the dropout cannot easily be fixed by moving a straight line, see the example below.
Press the Ins key and a dot will appear in the centre of the line on the left. By clicking on this dot (with the
left mouse key), you can move it up or down the line. Alternatively you can press Ins again to show two
dots, as shown below.
Each of these dots can then be moved up or down the line and can then be pulled to reflect the actual shape
of the road. As before left click on the dot and then drag it, to reposition the line correctly on the map.
Once you have fixed all the dropouts, click on save and the file will then be repaired and you will be returned
to the main screen
17/11/2010 |7
