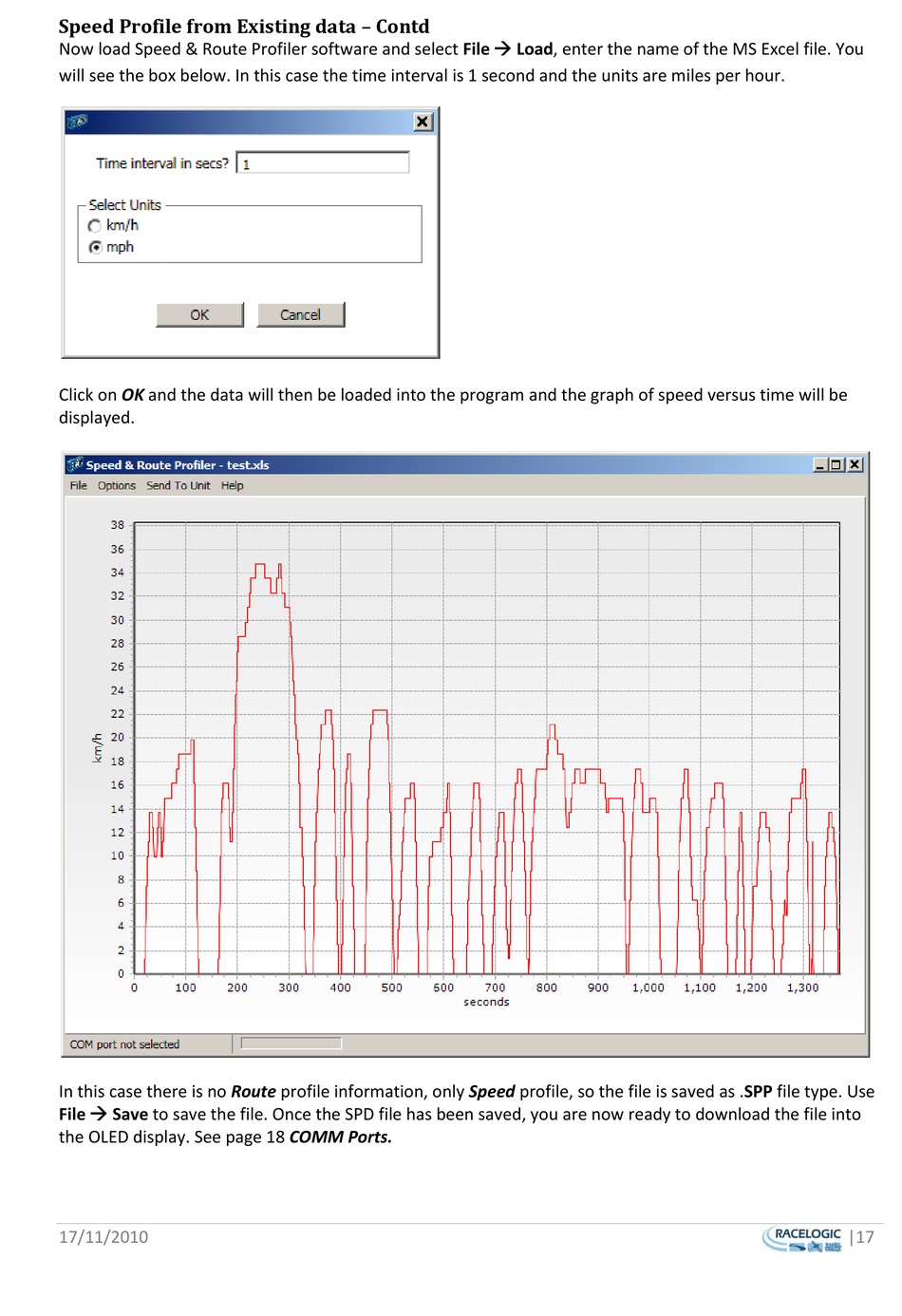

Speed Profile from Existing data – Contd
Now load Speed & Route Profiler software and select File  Load, enter the name of the MS Excel file. You
will see the box below. In this case the time interval is 1 second and the units are miles per hour.
Click on OK and the data will then be loaded into the program and the graph of speed versus time will be
displayed.
In this case there is no Route profile information, only Speed profile, so the file is saved as .SPP file type. Use
File  Save to save the file. Once the SPD file has been saved, you are now ready to download the file into
the OLED display. See page 18 COMM Ports.
