5.5 Clear Journey

This allows the user to clear journey information and start again. Once this is pressed the user will be
returned to Drive to Start.

5.6 Show % Time variance

If this is activated (by pressing square key), then the percentage time variance will be displayed on the right
hand side of the display. This information will disappear if a route direction is required.

5.7 Show Actual Time Difference

If this is activated, then the actual time variance in seconds will be displayed on the right hand side of the
OLED display,
Note, both of these time functions cannot be used at the same time, as there is not enough space on the
screen

5.8 Display Graph

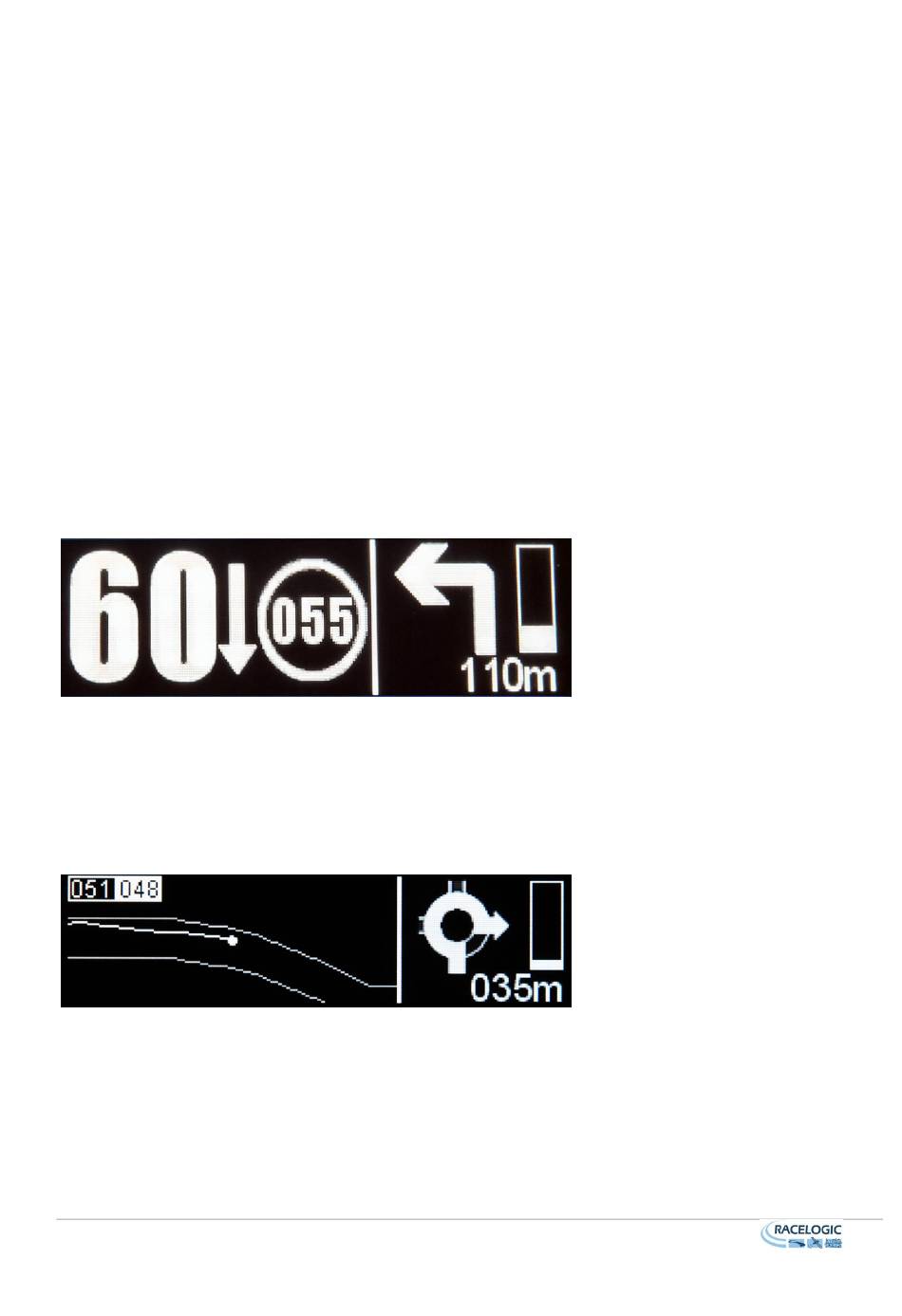

This allows you to select two different display screens for the OLED. If you do not select Display Graph, you
will then see the display below;
On the left you can see the actual speed of the vehicle with the ideal speed in the circle to the right. There is
an arrow indicating slow down or speed up between the two speeds.
If you do select Display Graph, you will then see the ideal speed profile shown for the past 4 ½ seconds and
the next 4 ½ seconds. This shows you more clearly how the speed profile will change over the next short
period of time.

5.9 Exit

Returns the User to Drive to Start or to Menu.
