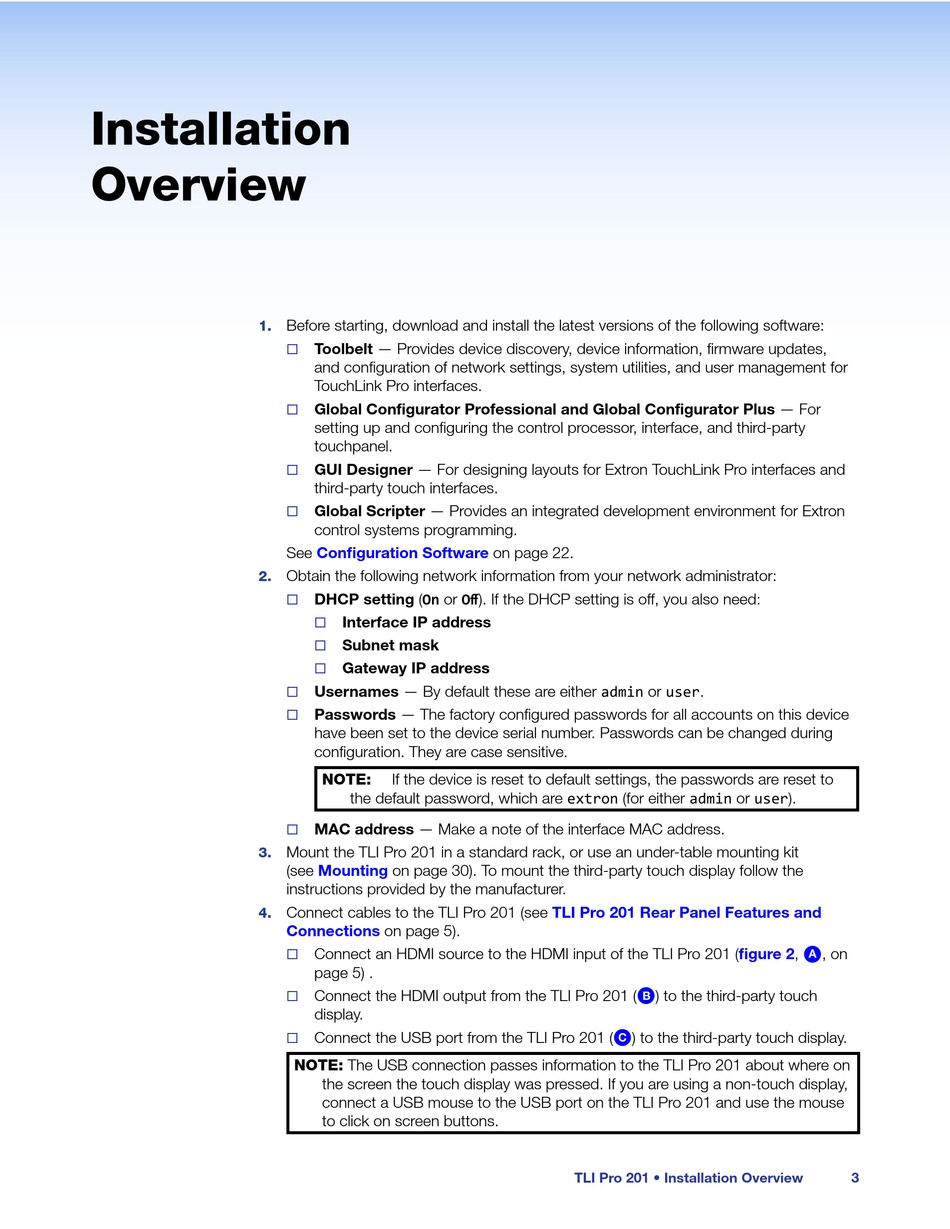

Installation
Overview
1.
2.
3.
4.
Before starting, download and install the latest versions of the following software:
Toolbelt — Provides device discovery, device information, firmware updates,
…
and configuration of network settings, system utilities, and user management for
TouchLink Pro interfaces.
Global Configurator Professional and Global Configurator Plus — For
…
setting up and configuring the control processor, interface, and third-party
touchpanel.
GUI Designer — For designing layouts for Extron TouchLink Pro interfaces and
…
third-party touch interfaces.
Global Scripter — Provides an integrated development environment for Extron
…
control systems programming.
See Configuration Software
Obtain the following network information from your network administrator:
DHCP setting (On or Off). If the DHCP setting is off, you also need:
…
Interface IP address
…
Subnet mask
…
Gateway IP address
…
Usernames — By default these are either admin or user.
…
Passwords — The factory configured passwords for all accounts on this device
…
have been set to the device serial number. Passwords can be changed during
configuration. They are case sensitive.
NOTE: If the device is reset to default settings, the passwords are reset to
the default password, which are extron (for either admin or user).
MAC address — Make a note of the interface MAC address.
…
Mount the TLI Pro 201 in a standard rack, or use an under-table mounting kit
(see Mounting on page 30). To mount the third-party touch display follow the
instructions provided by the manufacturer.
Connect cables to the TLI Pro 201 (see
Connections on page 5).
Connect an HDMI source to the HDMI input of the TLI Pro 201
…
page 5) .
Connect the HDMI output from the TLI Pro 201 (
…
display.
Connect the USB port from the TLI Pro 201 (
…
NOTE: The USB connection passes information to the TLI Pro 201 about where on
the screen the touch display was pressed. If you are using a non-touch display,
connect a USB mouse to the USB port on the TLI Pro 201 and use the mouse
to click on screen buttons.
on page 22.
TLI Pro 201 Rear Panel Features and
) to the third-party touch
B
) to the third-party touch display.
C
TLI Pro 201 • Installation Overview
(figure 2, , on
A
3
